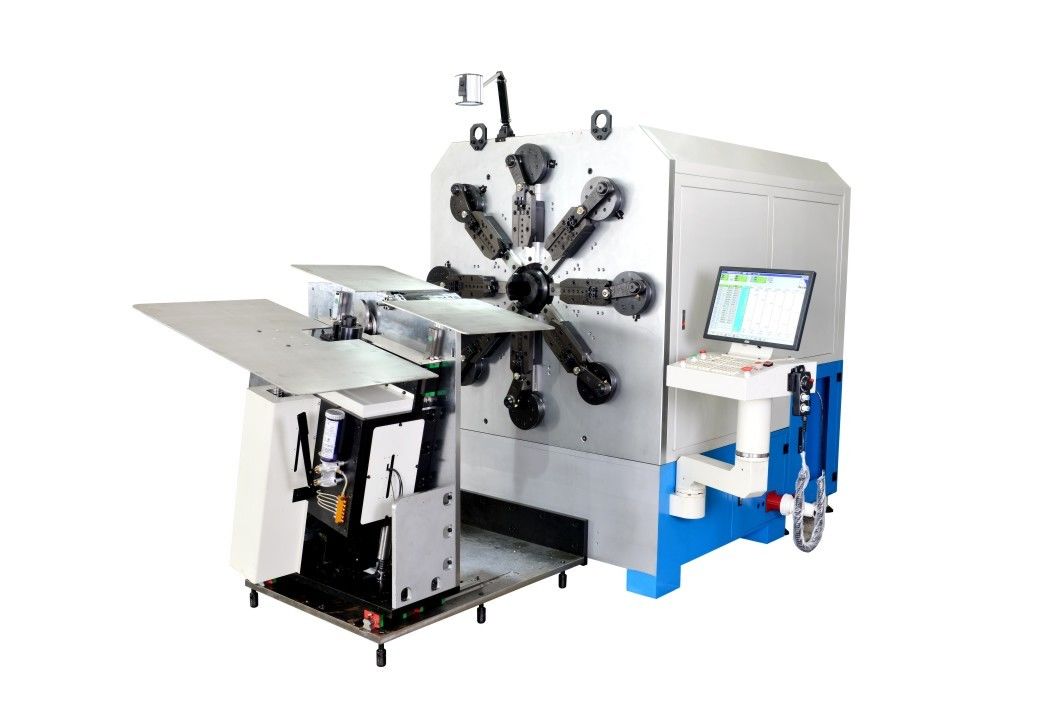

16 Aixs 80m / Min Spring Making Machine And Wire Bender Combined Equipment

16 Aixs 80m / Min Spring Making Machine And Wire Bender Combined Equipment

  • 16 Aixs  80m / Min Spring Making Machine And Wire Bender Combined Equipment
16 Aixs  80m / Min Spring Making Machine And Wire Bender Combined Equipment
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-60T-16A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 20 Days
Payment Terms: Negotiable
Contact Now
Detailed Product Description
Wire Diameter: High-carbon Steel 2-6mm Low-carbon Steel 3-8mm Axis: Sixteen Axes
Optional Tools: Spinner/Machine Hand/Servo Scissors Power Ac: 380V 50Hz
Servo Motor: Sanyo Payment Term: T/T
Guarantee Period: One Year Port: Shenzhen,China
High Light:

spring manufacturing machine

,

cnc spring forming machine



Computer Combined Function of Wire Bending Machine and Spring Making Machine with Sixteen Axes



Sixteen-axis multi-functional combined machine
Model HYD-60T-16A
Axis Count 16 aixs
Wire Size range steel wire:2-6mm
iron wire:3-8mm
Maximum wire length Unlimted
Max feeding speed 80m/min
Wire Feeding wheel count 4 pairs
Motor power consumption 59KW
Reducer 13 pcs
Machine size 3600×1400×2050mm
Weight 4500kg
Power AC 3-380VAC 50Hz





Machine Features:


1. Using the link rocker design, independent single-axis servo motor control, simple and convenient
operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase
production efficiency.

2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track

Design, you can adjust the left and right, more flexible adjustment.


3. Taiwan helical gear reducer, the intensity more secure.


4. Taiwan control system, more effectively ensure the mechanical and computer synchronization.


5. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.







HYD Service:


1. Free training is provided in HYD production base.Pictures and video of the machine operation will be sent for confirmation before shipment.


2 .The professional and patient consulting service will help you find the suitable solution.


3. Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.


4. HYD provide technical support by email and phone,technicians will be available at your side if necessary.


5. Spare parts will be freely supplied during the guarantee period(one year), original cost after this period.





FAQ


1. Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc


2. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.


3. Q: What is the payment term
A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.


4 Q: What is the delivery time?
A: Normally the manufacturing time of the machine is 30 days after receiving deposit.But it depends on machine model.Some machine production can be finished within 15 days.


5. Q: What is the guarantee period of the machine?
A: The guarantee period is one year from the date of B/L.


6.How to contact HYD?
A:Cel/WhatsApp:+86 14778279155 Skype:helen20160701
