High Accuracy Spring Bending Machine , Ten Axes Stable CNC Wire Bender

High Accuracy Spring Bending Machine , Ten Axes Stable CNC Wire Bender

  • High Accuracy Spring Bending Machine , Ten Axes Stable CNC Wire Bender
High Accuracy Spring Bending Machine , Ten Axes Stable CNC Wire Bender
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-60-10A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 Pcs Per Month
Contact Now
Detailed Product Description
Axes: Ten Axes Max Feeding Speed: 70m/min
Machine Weight: 3000KG Machine Dimension: 2800*1600*900mm
High Light:

steel wire bending machine

,

automatic wire bending machine



High Precision Spring Bending Machine and Wire Bending Machine



Model HYD-60-10A
Axis Count 10 Axis
Wire Size Range low carbon steel:2-6mm
high-carbon steel:1-4mm
Control system 1 set
Wire feeding axis count 2 pairs
3D maximum dimension 650*650*350mm
Pallet 800*500*4mm
Machine Dimension 2800*1600*900mm
Machine Weight 3000kg
Decoiler 500KG





----The cutter can be move back and front,it is for making products more stable and cutter can be back when processing products,the forming space can be bigger so that it will not touch the cutter.



----Twisting head as a whole can be shifted around, you can make room for more complex shapes molded products.



----The cutter can be moved back and forth, forward cut short when processing products, the production of a more stable, long product when processing knife back,Forming a larger space, the product will not touch the cutter.

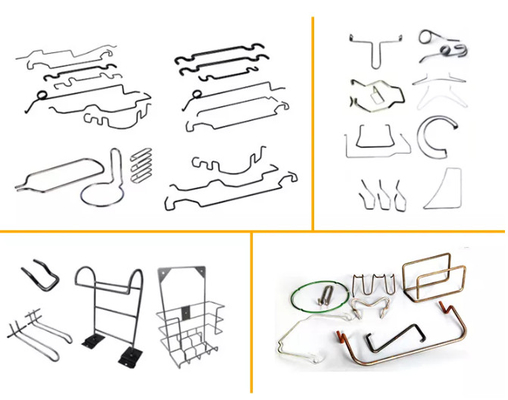

Samples:

High Accuracy Spring Bending Machine , Ten Axes Stable CNC Wire Bender 0





Spring

High Accuracy Spring Bending Machine , Ten Axes Stable CNC Wire Bender 1
