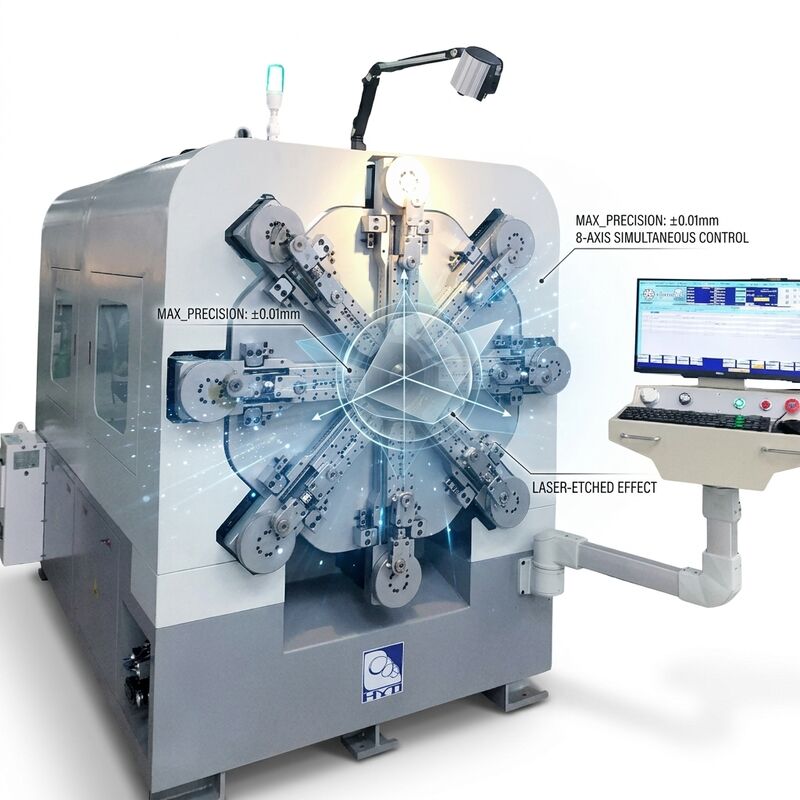

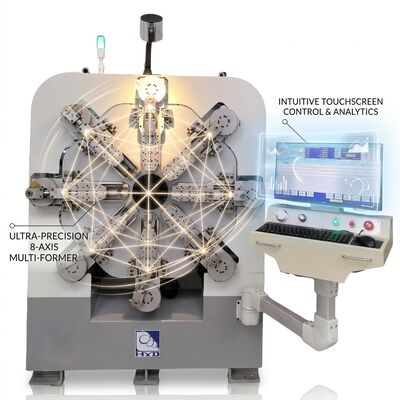

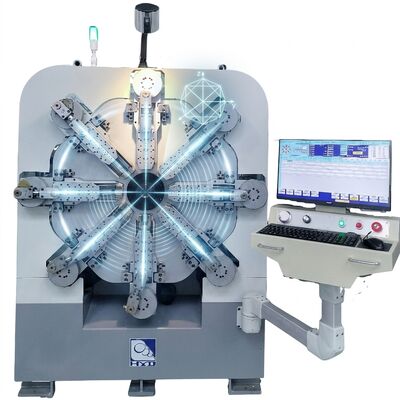

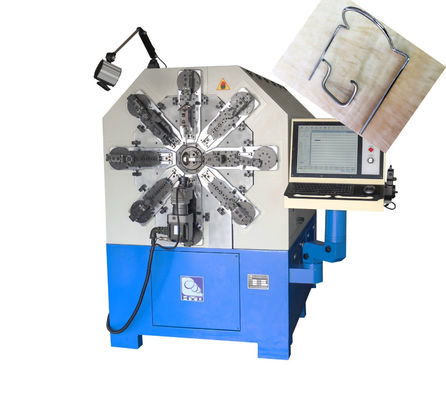

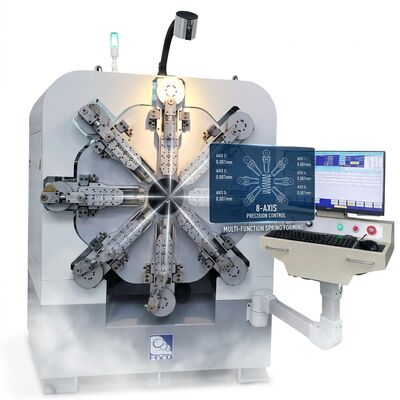

380V 50Hz 27KW Camless CNC Spring Machine For 1 - 4mm High Carbon Steel

380V 50Hz 27KW Camless CNC Spring Machine For 1 - 4mm High Carbon Steel

  • 380V 50Hz 27KW Camless CNC Spring Machine For 1 - 4mm High Carbon Steel
380V 50Hz 27KW Camless CNC Spring Machine For 1 - 4mm High Carbon Steel
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-40T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 30 Days
Payment Terms: Negotiable
Contact Now
Detailed Product Description
Wire Diameter: Low Carbon Steel:2-6mm High-carbon Steel:1-4mm Axis: Twelve Axes
Optional Tools: Spinner/Machine Hand/Servo Scissors Power Ac: 380V 50Hz
Servo Motor: Sanyo Payment Term: T/T
Guarantee Period: One Year Port: Shenzhen,China
High Light:

cnc coiling machine

,

automatic spring machine

,

27KW Camless CNC Spring Machine



Low carbon steel:2-6mm High-carbon steel:1-4mm Spring Bending Machine with High Precision



HYD-40T-12A Spring Bending Machine Technical parameters
Model HYD-40T-12A
Axis Count twelve axis
Wire Size Range low carbon steel:2-6mm
high-carbon steel:1-4mm
Lead rail distance of 100mm
Wire feeding count 4 pairs
Max Feeding speed 100m/min
Maximum error ± 0.05mm(length)
Control system+decoiler 1 set
Servo motor power 27KW
Reducer 11pcs
Minimum length of ange 4 times wire diameter
Machine size 1920*1200*1820mm
Machine weight 3000kg




Machine Features:


1 Taiwan helical gear reducer, the intensity more secure.



2. Taiwan control system, more effectively,is to ensure the mechanical and computer synchronization.


3. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, ensure the accuracy and line feed transfer lines.

4.This machine is with eight cams,and other four axes like torsion,machine hand,servo scissors etc.







HYD Service:


1. Free training is provided in HYD production base.Pictures and video of the machine operation will be sent for confirmation before shipment.


2 .The professional and patient consulting service will help you find the suitable solution.


3. Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.


4. HYD provide technical support by email and phone,technicians will be available at your side if necessary.


5. Spare parts will be freely supplied during the guarantee period(one year), original cost after this period.






Spring Sample



380V 50Hz 27KW Camless CNC Spring Machine For 1 - 4mm High Carbon Steel 0
