| Place of Origin: | Dongguan,China |
| Brand Name: | HYD |
| Certification: | CE / IS09001 |
| Model Number: | HYD-60-10A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Seaworthy Plywood Case |
| Delivery Time: | 20 Days |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 Pcs Per Month |
| Axis: | Ten Axes | Motor Brand: | Sanyo |
|---|---|---|---|
| Term: | FOB,CIF,EXW | Nearest Port: | Shenzhen,China |
| Machine Painting: | Blue Or As Per Requested | Power AC: | 3-phase |
| High Light: | spring forming machine,steel wire bending machine,Stable Producing Spring Bending Machine |
||

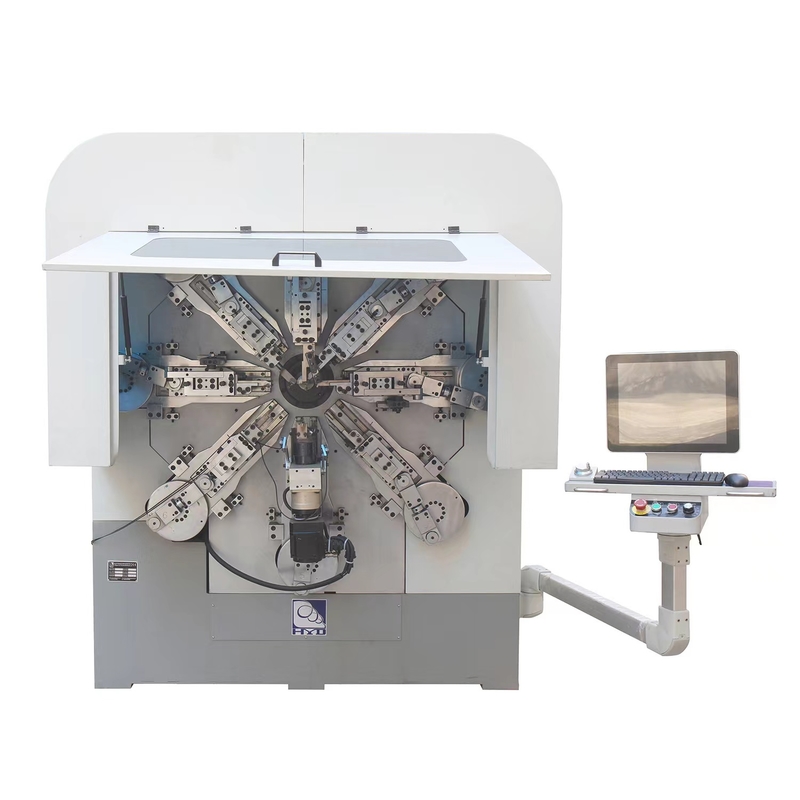

High-performance, stable spring bending machine with ten axes
1. FEATURES AND APPLICATIONS:
*With a link rocker design for simple and comfortable operation and an independent single-axis servo motor control, shaped springs may be positioned in accordance with the angle of the tooling to expedite setup and production effectiveness.
* Taiwan double roller guides have better wear resistance, which makes them more accurate and long-lasting. Left and right adjustment is more versatile with the two-track design.
* Taiwan helical gear reducer: this device intensifies security.
* Taiwan control system, which ensures more successful synchronization between computers and mechanical devices.
*To separate the motor from the power transmission line in order to enhance the turn angle of the line and decrease the delivery line box load. Check the accuracy of the line feed transfer lines.
2. SPECIFICATION:
| Wire Bending Machine Technical Parameters | |
| Model | HYD-60-10A |
| Axis Count | 10 Axis |
| Max Feeding speed | 70m/min |
| Wire Size Range | low-carbon steel: 2–6 mm |
| high-carbon steel:1-4mm | |
| Control system | 1 set |
| Wire feeding axis count | 2 pairs |
| 3D maximum dimension | 650*650*350mm |
| Minmum length of angel | 4 times wire diameter |
| Pallet | 800*500*4mm |
| Machine Dimension | 2800*1600*900mm |
| Machine Weight | 3000kg |
| Decoiler | 500KG |
Samples:
Machine Details
