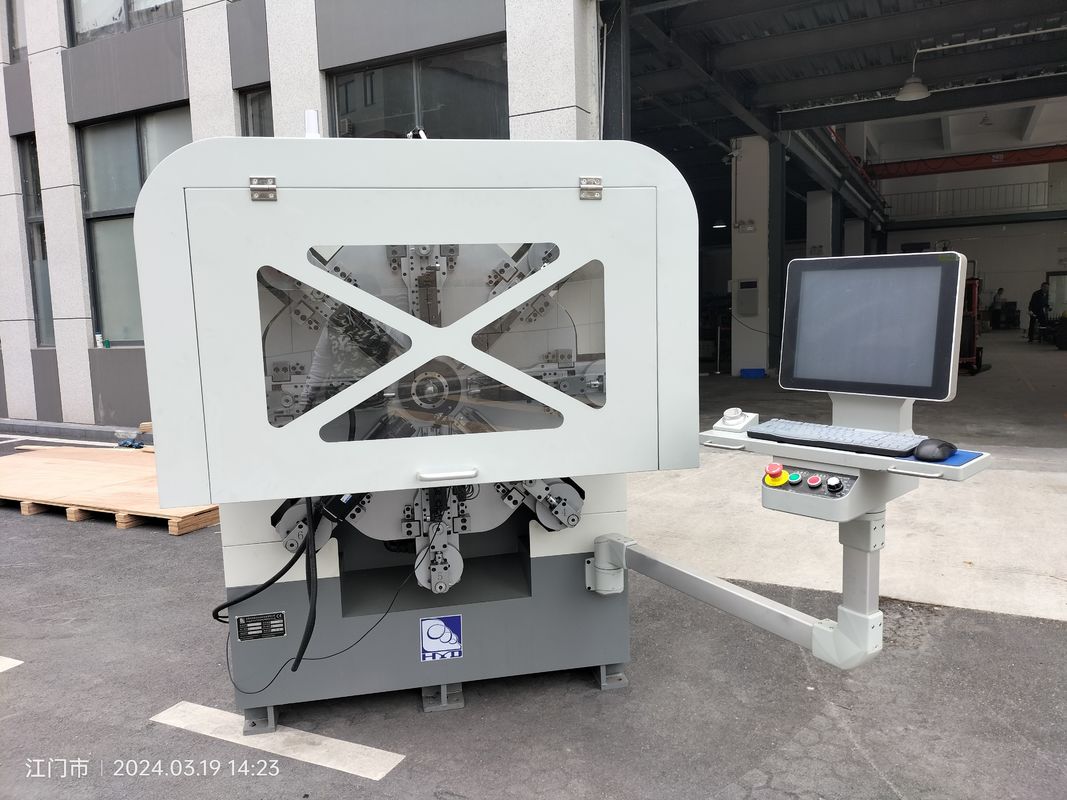

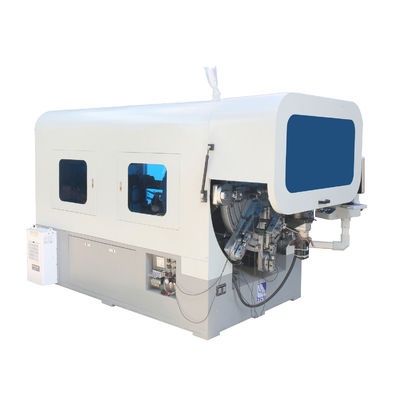

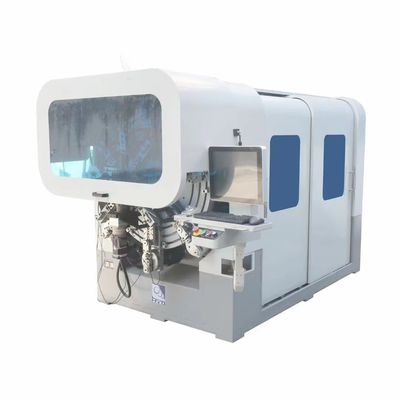

Camless Automatic Spring Machine , Spring Coiling Machine With Twelve Axes

Camless Automatic Spring Machine , Spring Coiling Machine With Twelve Axes

  • Camless Automatic Spring Machine , Spring Coiling Machine With Twelve Axes
Camless Automatic Spring Machine , Spring Coiling Machine With Twelve Axes
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-60T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 30 Days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram, D/A
Contact Now
Detailed Product Description
Wire Diameter: Low-carbon Steel 3-8mm High-carbon Steel 2-6mm Servo Motor: Japan Brand
Payment Term: T/T L/C Nearest Port: Shenzhen,China
High Light:

cnc wire bender

,

cnc bending machine



Wire Bending Machine and Cam-less Spring Machine with Twelve Axes





Machine Features:

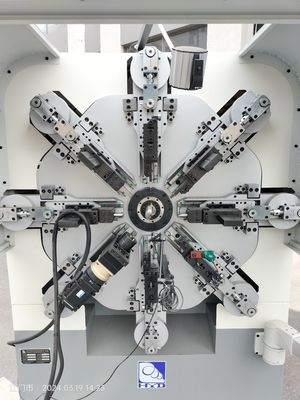

1. Using the link rocker design, independent single-axis servo motor control, simple and convenient operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase
production efficiency.

2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track Design, you can adjust the left and right, more flexible adjustment.





Model HYD-60T-12A
Axis Count 12 axis
Wire Size Range low carbon steel:3-8mm
high-carbon steel:2-6mm
Lead rail distance of 130mm
Wire feeding count 4 pairs
Max Feeding speed 80m/min
Maximum error ±0.1(length)
Control system+decoiler 1 set
Servo motor power 49.7KW
Reducer 11pcs
Minimum length of angel 4 times wire diameter
Machine size 2600*1400*2050mm
Machine weight 4500kg

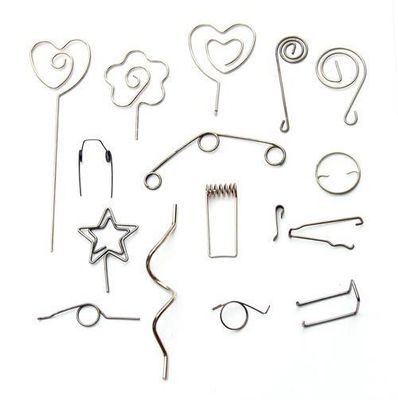

Samples:

Camless Automatic Spring Machine , Spring Coiling Machine With Twelve Axes 0





Machine Purchasing Process



• Customer provide HYD spring drawing



• HYD provide technical information for machine and spring making information



• Customer confirm machine and order,then arrange 30% deposit as PO confirmation



• HYD make spring set-up in machine after manufacturing period



• HYD shipped machine after customer’s spring confirmation and receive balance payment.



• Machine following for transposition and all after-sales service










FAQ


1. Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc



2. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.



3. Q: What is the payment term
A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.



4 Q: What is the delivery time?
A: Normally the manufacturing time of the machine is 30 days after receiving deposit.But it depends on machine model.Some machine production can be finished within 15 days.



5. Q: What is the guarantee period of the machine?
A: The guarantee period is one year from the date of B/L.



6.How to contact HYD?
A:Cel/WhatsApp:+86 14778279155 Skype:helen20160701
