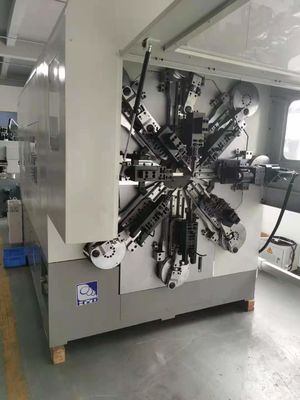

Sixteen Axes Automatic Spring Machine High Output With 80m / Min Feeding Speed

Sixteen Axes Automatic Spring Machine High Output With 80m / Min Feeding Speed

    • Sixteen Axes Automatic Spring Machine High Output With 80m / Min Feeding Speed
  • Sixteen Axes Automatic Spring Machine High Output With 80m / Min Feeding Speed

    Product Details:

    Place of Origin: Dongguan,China
    Brand Name: HYD
    Certification: CE / IS09001
    Model Number: HYD-60T-16A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Standard Seaworthy Plywood Case
    Delivery Time: 20 Days
    Payment Terms: L/C, D/A, D/P, T/T, MoneyGram, Western Union
    Contact Now
    Detailed Product Description
    Model: HYD-60T-16A Servo Motor: Sanyo
    Sample Provided: Yes Axis: Sixteen Axes
    Weight: 4500KG System: English/Chinese
    High Light:

    cnc spring former

    ,

    coil spring making machine



    Wire Forming Machine and Spring Machine Combined Function with Sixteen Axes



    Machine Features


    1. This machine has total 16 axes which are Cam axis, Feeding axis, Quill Rotary axis, the Wire rotary axis and the Spinner axis.



    2. This machine is with servo motor from Japan and control system from Taiwan.



    3. This machine combine the function of spring machine and wire forming machine,the wire bending part can be taken off from the machine when producing spring.And put it back when need to make wire forms.



    4. This type of versatile spring making machine is of functions of both wire forming and spring making



    5. We adhere to the principle of cost-saving, and performance-improvement, in a word, absolutely it will be your perfect choice for spring making.



    Wire Size range

    steel wire:2-6mm
    iron wire:3-8mm
    Maximum wire length Unlimted
    Max feeding speed 80m/min
    Wire Feeding wheel count 4 pairs
    Motor power consumption 59KW
    Reducer 13 pcs
    Machine size 3600*1400*2050mm
    Weight

    4500kg







    Company information



    Our machine mostly covers spring for wire diameter from 0.15mm to 8.00mm, including spring types like,

    compression springs, torsional springs, extension springs, wire forms, abnormal-shaped springs ect.





    Our main products are CNC compression spring machine and CNC universal spring making machine.
