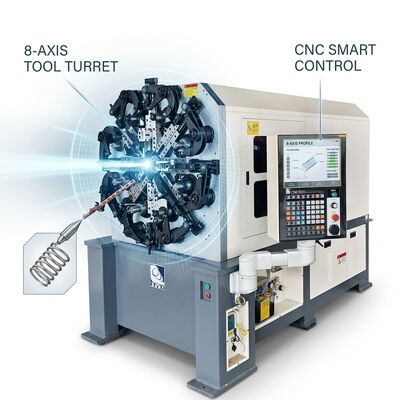

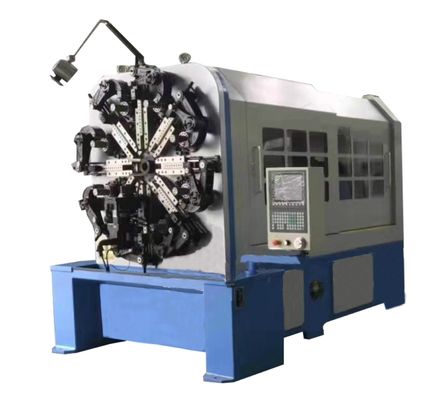

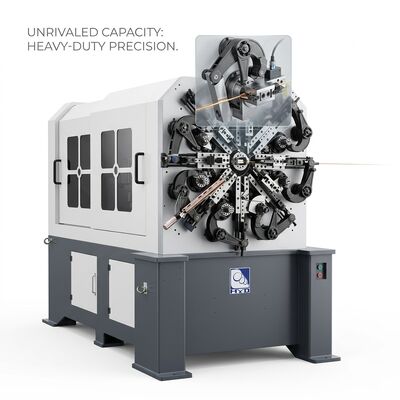

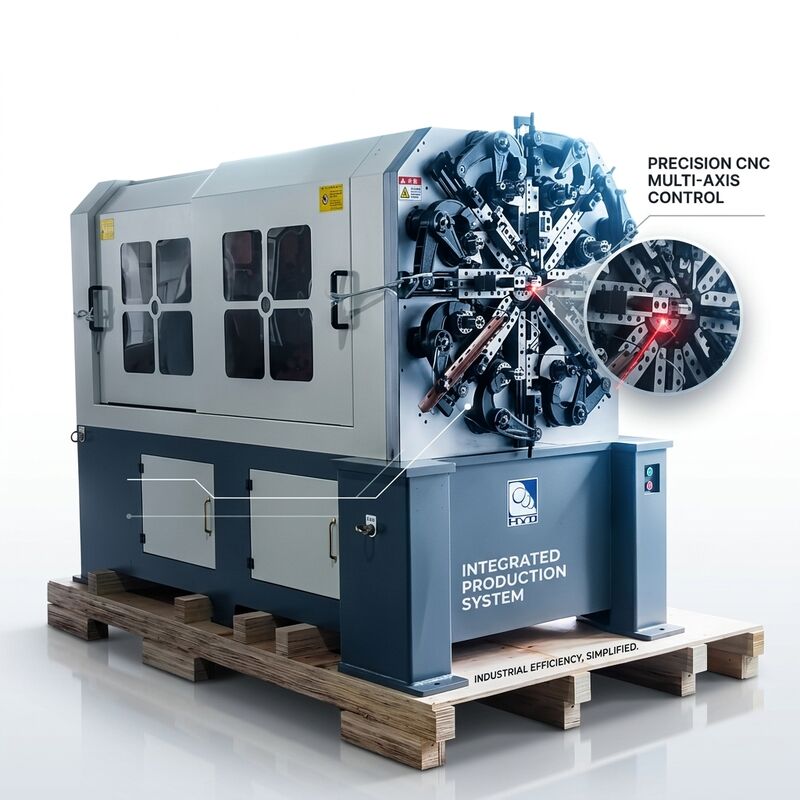

Five Axes Wire Rotary CNC Spring Machine 1.0 - 4.0mm Japan Motor

Five Axes Wire Rotary CNC Spring Machine 1.0 - 4.0mm Japan Motor

  • Five Axes Wire Rotary CNC Spring Machine 1.0 - 4.0mm Japan Motor
Five Axes Wire Rotary CNC Spring Machine 1.0 - 4.0mm Japan Motor
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE CNC Spring Forming Machine
Model Number: HYD-40T-5A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 30 Days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram,Cash
Contact Now
Detailed Product Description
Wire Diameter: 1.0-4.0mm Place Of Origin: Dongguan,China
Number Of Axie: 5 Axes Advantage: Wire Rotary
Controller: One Set Decoiler: One Set
Brand Name: HYD Machine Color: Blue Or Customized
High Light:

cnc coiling machine

,

cnc spring making machine



1.0 - 4.0mm Japan Motor 5 Axes Wire Rotary CNC Spring Former Machine



HYD-40T-5A CNC Spring Former With Wire Rotary

Model

HYD-40T-5A

Number of Axis

5 Axes

Wire Size Range

1.0-4.0mm

Outside Diameter

Max 60mm

Feeding speed

100m/min

Control system+decoiler

1 set

Wire Feed

5.5KW

Wire Rotary

4.5KW

Cam

5.5KW

Quill

1.0KW

Spinner

1.0KW

Machine Dimension

2300*1500*2000mm

Machine Weight

3000KG



CNC Spring Former Machine Information

1. HYD-40T-5A is equipped with Taiwan Controller and Japan Sanyo motor.



2. The parameters such as major diameter and angle can be modified at any time according to the working status displayed on the fluorescence screen.



3. It is suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and other different spring and special-shaped spring etc.



Spring Sample​

Five Axes Wire Rotary CNC Spring Machine 1.0 - 4.0mm Japan Motor 0

Machine Toolings

Five Axes Wire Rotary CNC Spring Machine 1.0 - 4.0mm Japan Motor 1Five Axes Wire Rotary CNC Spring Machine 1.0 - 4.0mm Japan Motor 2

  • What is your machine controller and motors?
    • Controllers are imported from ARCHI,Motors from Sanyo,Janpan.
  • Can you offer training in our plant?
    • Basically, we have sales and service teams in India,Europe,Turkey,Thailand,Korea,Russia. If you are out of these countries, our enginner will be sent to your place for training if you need.
  • How many years you exported? Do you have CE?
    • Definitely, we have exported spring machines in past 9 years, and all of the machines have CE certificates.
