| Place of Origin: | Dongguan,China |
| Brand Name: | HYD |
| Certification: | CE / IS09001 |
| Model Number: | HYD-25T-10A(Max 16 Axes) |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Seaworthy Plywood Case |
| Delivery Time: | 15 Days |
| Payment Terms: | Negotiable |
| Supply Ability: | 30 Sets One Month |
| Wire Diameter: | 0.3-2.5mm | Total Axes: | Ten Axes |
|---|---|---|---|
| Additional Axes: | Can Be Customized | Power Supply: | 380V 50Hz |
| Servo Brand: | Sanyo,Japan | Advantage: | Easy To Operate |
| Decoiler Equipment: | 100KG | Applicable Industries: | Manufacturing Plant |
| After-sales Service: | Online Support, Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| High Light: | Sanyo Motor Spring Making Machine,2.5mm Spring Making Machine,spring making equipment 380v |
||

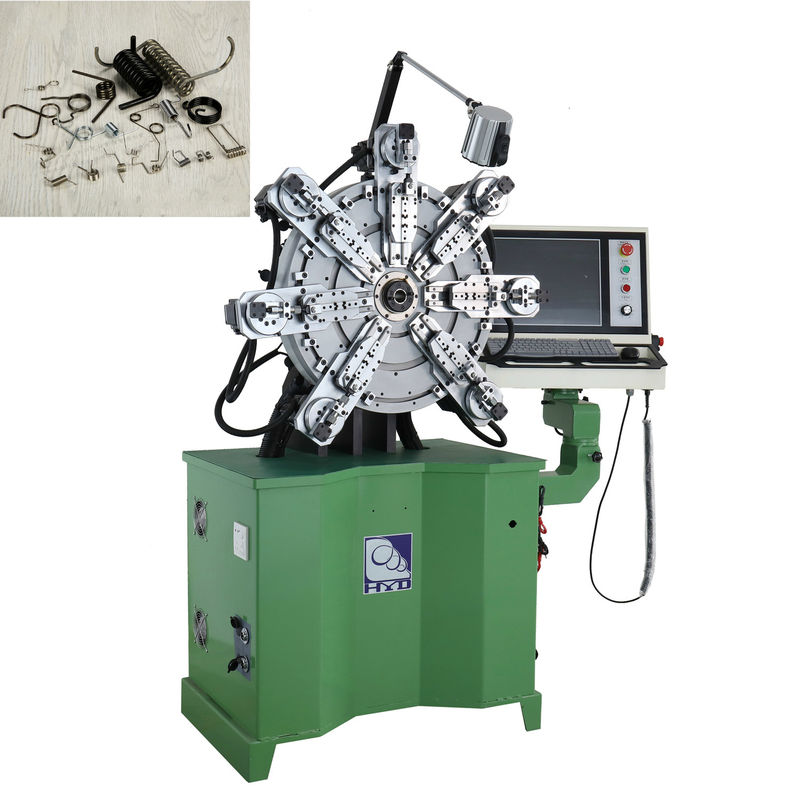

Arcuchi Sanyo Motor Spring Making Machine For Spring Wire Diameter 2.5mm
Techinical Specification
| Model | HYD-25T-10A |
| Number of Axes | 10 Axes |
| Wire Diameter | 0.3-2.5mm |
| Lead Rail | distance of 80MM |
| Wire Feed Roller | 2 pairs |
| Maximum Change | ±0.03(length) |
| Max Wire Feed Speed | 70m/min |
| Control System | Sanyo |
| Shortest Angel Length | 4 Times Wire Diameter |
| Machine Weight | 1300KG |
| Machine Dimension |
1400*1400*1700mm
|
Spring Samples
Machine at Factory
2. 8pcs servo drive each handles, and all installed in the one-solid working panel, smart lead to fast, also, minimized vibrate result precise into 0.2mm stable.
3. Japan SanYo Denki servo motor
4. Sweden SKF, Top Brands Deep groove ball Bearing in wire feeding mechanism..
5. Taiwan Computer Operation System
6. Panasonic Frequency Inverter,
7. Japan OMRON Relay, etc.
Furthermore as our Advantages:
1. We using top brands as Sweden SKF of deep grove ball bearings and Japan Sanyo Denki of Servo Motors, most matching one in spring industry. Can tell difference over 8 years or more from others.
2. To seek excellent performance and durable, we using powerful hydraulic pumps to press every wire feeding wheel. which is far much better than air pump of others. Especially for Middle to large springs, wire bending as size over 4mm. More silent, faster.
3. For key and wearing core parts, we handle them with many steps of handling as:
Tempering treatment, Vacuum hardening,Anodized, Nickle plated, by through vary of surface treatments to make sure of those parts durable and not breakage as whole, and wearable for their main contacting surface, working areas.
Accessory and the free spare parts:
1. Using Manual (English ) and Attaching parts List
2. Total 5 sized tools and installing tools. (such as hopper, toolbox, etc), each item one piece.
