| Place of Origin: | Dongguan, China |
| Brand Name: | HYD |
| Certification: | CE |
| Model Number: | 40T-10A |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | USD 25860-38000 |
| Packaging Details: | Plywood Case |
| Delivery Time: | 30-40 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Cash |
| Supply Ability: | 10 sets/ 2 months |
| Wire Size: | 1-4mm | Process Wire: | Carbon Steel/ Stainless Steel/ Music/ Cooper/ Iron/ Aluminium |
|---|---|---|---|
| Make Product: | Tension/ Torsion/ Compression/ Specail Shape Spring, Wire Formings | Reducer: | 9 |
| Claws: | 7-8 | Bearing: | NSK |
| Guide Rail: | Stoke 120mm |

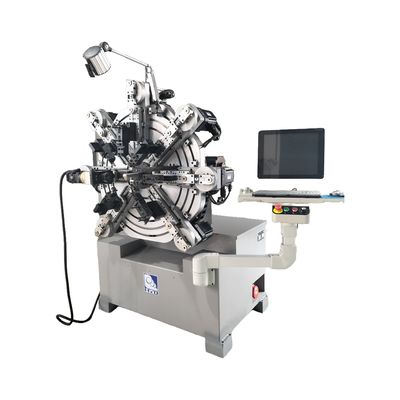

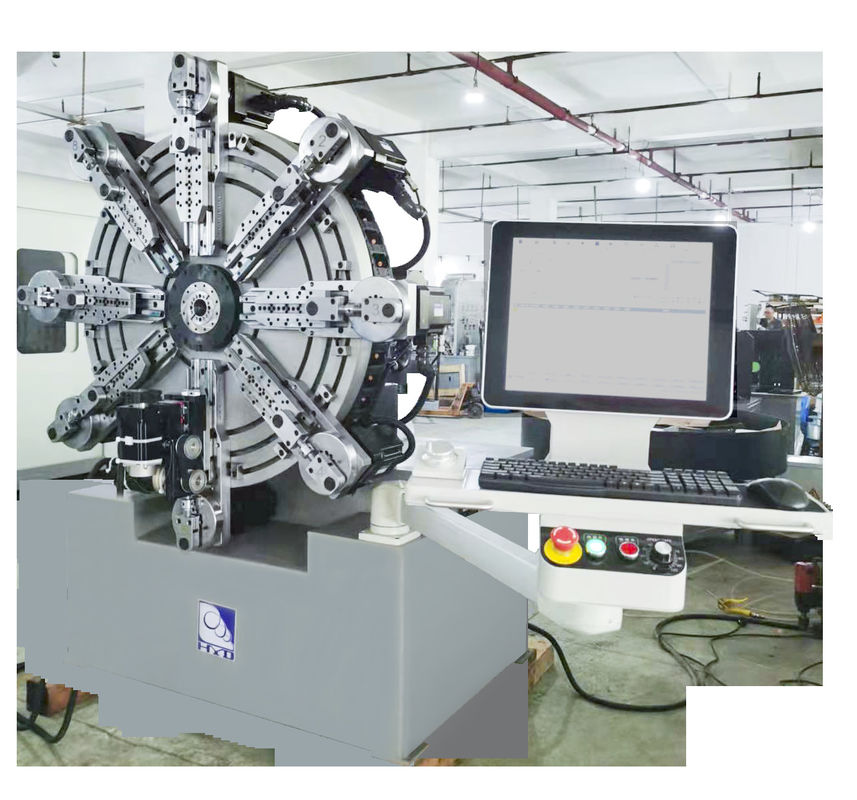

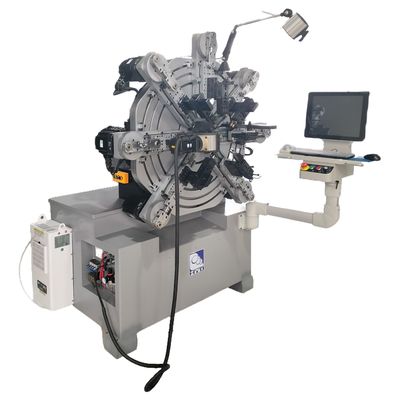

High Precision Multi Function CNC Spring Machine Spring Maker Machine Equipment
Features:
1. The gears and guide rails are wearable, can be used many years.
2. Servo motors are from Japan, it is used very well.
3. Tools, bearings and spare parts are durable that is saving cost in long term working.
4. Wire feed structure is 4 groups of wire feeding wheels, 2 sets of straightener wheels and a wire rotary function. Customer could select number of wire feed wheel groups and wire rotary under products requirements.
5. CNC system is Chinese and English version, easy to study, teach and train.
6. Wire rotary device and Quil can be rotated in 360°, very convenient for adjusting angle and shape of springs.
7. Dome light is goodd for commissioning springs.
8. Electromagnetic valve is used for installing probe or air cylinder to check springs.
9. Side power socket supply power when it is adding other device or repairing.
10. Air conditioner is for lower the temperature to extend the life of machinery and accessories.
11. Transformer is set under customer voltage.
12. Decoiler is woking together which can be selected 200 or 500kg tray.
Machine parameters
| HYD-40T-10A Twelve- axes Cam-less spring machine | |
| Model | HYD-40T-10A |
| Axis Count | 10 Axes |
| Wire Size Range | low carbon steel:2-6mm |
| high-carbon steel:1-4.2mm | |
| Lead rail | distance of 100mm |
| Wire feeding count | 4 pairs |
| Max Feeding speed | 100m/min |
| Maximum error | ±0.05mm(length) |
| Control system+decoiler | 1 set |
| Servo motor power | 22.5KW |
| Minimum length of ange | 4 times wire diameter |
| Machine size | 1100*1300*1920mm |
| Machine weight | 2000KG |

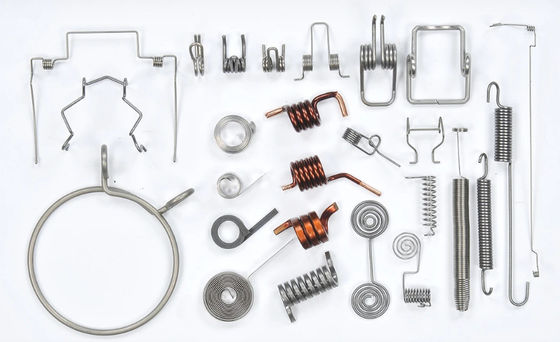

Samples:
