Automatically Tension Spring Machine 80m Per Min Wire Spring Making Systems

Automatically Tension Spring Machine 80m Per Min Wire Spring Making Systems

Automatically Tension Spring Machine 80m Per Min Wire Spring Making Systems
Automatically Tension Spring Machine 80m Per Min Wire Spring Making Systems
Automatically Tension Spring Machine 80m Per Min Wire Spring Making Systems
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-60T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 30 Days
Payment Terms: L/C,D/P,T/T,Western Union,D/A
Contact Now
Detailed Product Description
Wire Diameter: Low-carbon Steel 3-8mm High-carbon Steel 2-6mm Machine Weight: 4500KG
Machine Size: 2600*1400*2050mm Nearest Port: Shenzhen,China
Axes: Twelve To Fourteen Axes Decoiler And Sysem: One Set
Highlight:

automatic spring machine

,

cnc spring making machine

Automatically Tension Spring Machine 80m Per Min Wire Spring Making Systems
Spring Tension Spring Making Machine and Wire Form Product Making Machine

Advanced CNC versatile spring rotating forming machine designed for high-speed production of various spring types and wire form products.

Machine Features
  • 12-axis configuration including Cam axis, Feeding axis, Quill Rotary axis, Wire rotary axis, and Spinner axis (axes can be customized as per requirement)
  • Suitable for manufacturing various compression springs, extension springs, single/double torsion springs, tower-shaped compression springs, flat wire springs, and any kind of wire forming
  • Adopts Taiwan control system and Japan motor for synchronous control of feeding system and cam system
Technical Specifications
Axis Count 12 axis
Wire Size Range Low carbon steel: 3-8mm
High-carbon steel: 2-6mm
Lead Rail Distance of 130mm
Wire Feeding Count 4 pairs
Max Feeding Speed 80m/min
Maximum Error ±0.1 (length)
Control System + Decoiler 1 set
Servo Motor Power 49.7KW
Reducer 11 pcs
Minimum Length of Angle 4 times wire diameter
Machine Size 2600×1400×2050mm
Machine Weight 4500kg
Product Images

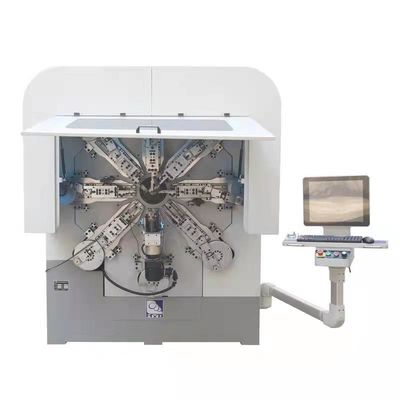

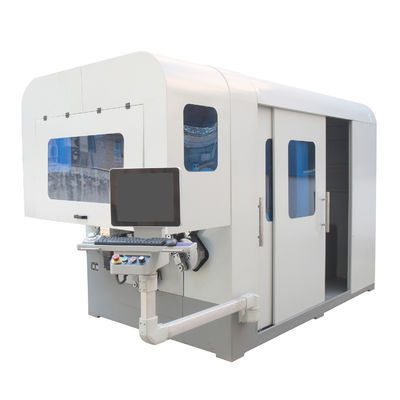

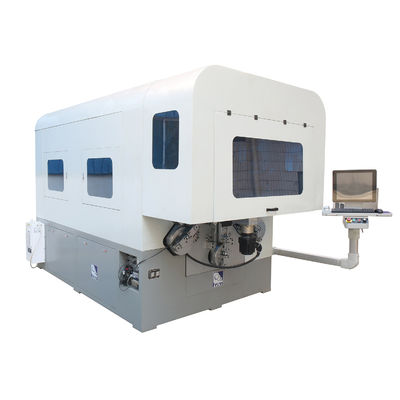

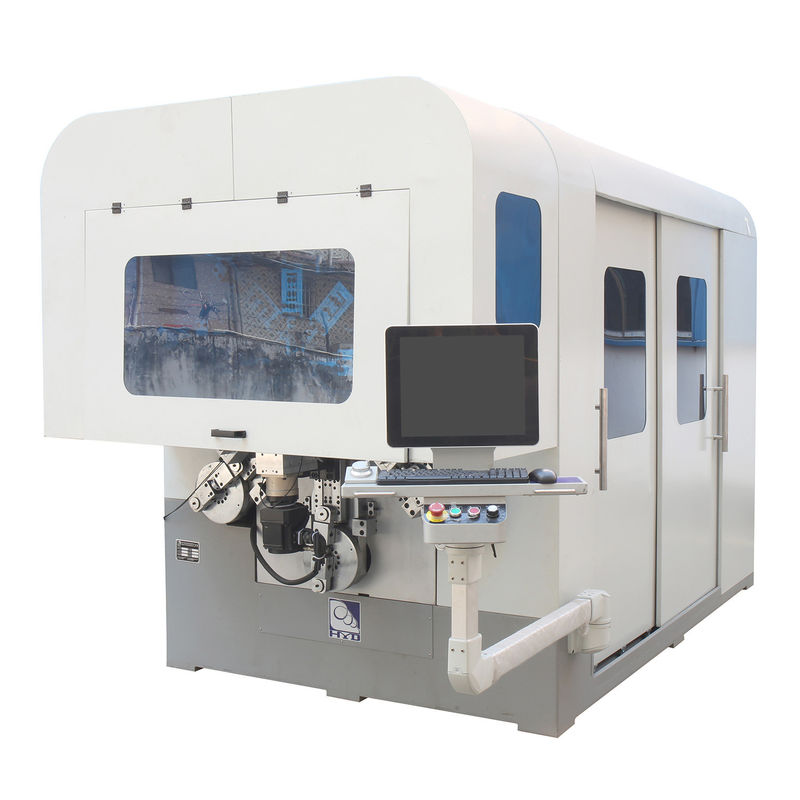

CNC Spring Machine front view showing control panel and working area CNC Spring Machine side view displaying mechanical components CNC Spring Machine close-up of wire feeding mechanism CNC Spring Machine overall production setup
Sample Products
Sample tension springs produced by the machine Various wire form products manufactured using the system
Frequently Asked Questions
What information will be helping to get an accurate quotation from us?
The customer should provide related drawings, pictures, industrial voltage, planned output, technical requirements, etc.
What is the delivery time?
Normally the manufacturing time of the machine is 30 days after receiving deposit. However, it depends on machine model. Some machine production can be finished within 15 days.
What is the guarantee period of the machine?
The guarantee period is one year from the date of B/L.
How to contact HYD?
Cel/WhatsApp: +86 13378040100
