High Efficient Cam-Less CNC Spring Forming Machine Wire Range 0.3 - 2.5mm

High Efficient Cam-Less CNC Spring Forming Machine Wire Range 0.3 - 2.5mm

High Efficient Cam-Less CNC Spring Forming Machine Wire Range 0.3 - 2.5mm
High Efficient Cam-Less CNC Spring Forming Machine Wire Range 0.3 - 2.5mm
High Efficient Cam-Less CNC Spring Forming Machine Wire Range 0.3 - 2.5mm
Product Details:
Place of Origin: Dongguan, Guangdong, China
Brand Name: HYD
Certification: CE
Model Number: HYD-25T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Sea-worthy Wooden-case
Delivery Time: 15 - 25 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 10 Sets One Month
Contact Now
Detailed Product Description
Model: HYD-25T-12A Max Axis: 14 Axes
Wire Diameter: 0.3-2.5mm Servo Motor: Japan Sanyo
Wire Feeder: 100 KG Production Period: 15-25 Days
Supply Ability: 20 Sets Per Month After-sales Service: One Year Guarantee
Highlight:

cnc coiling machine

,

cnc spring making machine

High Efficient Cam-Less CNC Spring Forming Machine Wire Range 0.3 - 2.5mm
HYD model 20T CNC cam-less spring machine features twelve axes and handles wire sizes from 0.3-2.5mm. Equipped with imported Sanyo servo motors from Japan and Taiwanese computer systems, this machine incorporates special cam-less design with HYD free arm technology for producing complex springs with 30% higher efficiency than traditional cam-type spring formers.
Technical Specifications
Axes12 axes
Lead RailDistance of run 80mm
Wire Feed Set2 sets
Max Wire Feed Speed70m/min
Max Tolerance±0.03 (length)
Wire Diameter0.3-2.5mm
Machine Weight1500KG
Machine Dimension1400mm × 1400mm × 1700mm
Servo MotorSanyo
Control System1 set
Product Images

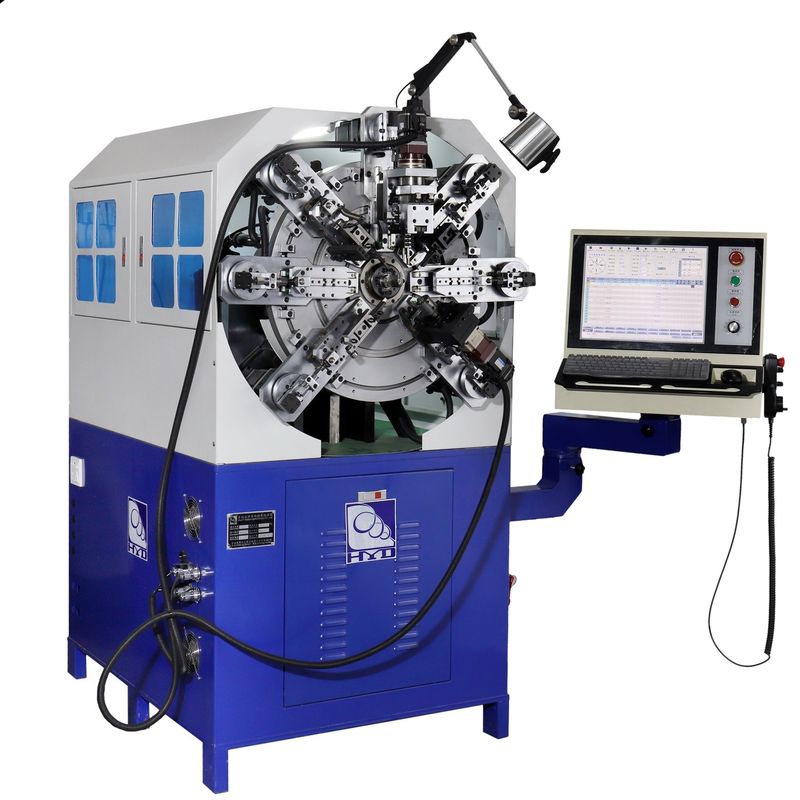

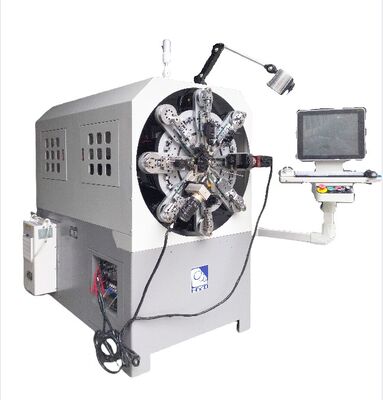

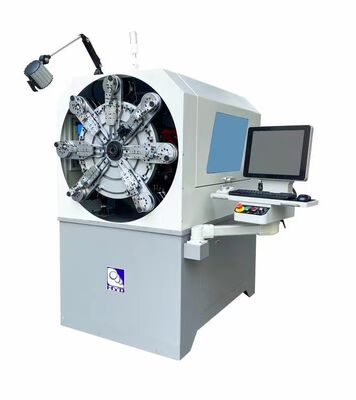

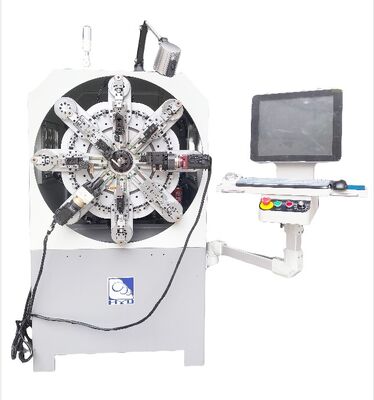

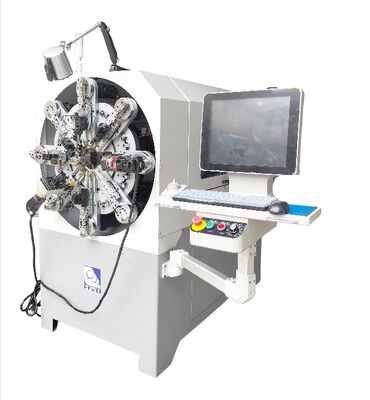

HYD CNC Spring Machine front view HYD CNC Spring Machine side view HYD CNC Spring Machine control panel HYD CNC Spring Machine production view HYD CNC Spring Machine operational view HYD CNC Spring Machine detailed view
Production Features
  • Combines precision CNC controlled servo-motion system with mechanization conveniences
  • Suitable for various spring products with wire diameter 0.3-1.2mm through simplified setup and programming
  • Production speed can be increased or decreased at any time during operation
  • Servo motion system and servo drive controlled
  • Cam can be moved clockwise or anti-clockwise; wire feed length can be changed while running
  • Computer automatically detects motor temperature and slows running speed to prevent overheating
  • Computer automatically decelerates according to timing when probe should be used
Company Profile
Dongguan Hua Yi Da Spring Machinery Co., Ltd. is a professional CNC spring machine manufacturer with over 15 years of experience in the industry.
Agent Opportunities
HYD is seeking agents worldwide. Contact us for partnership opportunities.
Contact Person: Helen Chan
Skype: helen20160701
WhatsApp/Cell: +86 14778279155
Email: helenchan@hydspringmachine.com
Website: http://www.cnc-springmachine.com
