Energy Saving CNC Spring Machine Max Fourteen Axes Power Supply 380V Systems

Energy Saving CNC Spring Machine Max Fourteen Axes Power Supply 380V Systems

Energy Saving CNC Spring Machine Max Fourteen Axes Power Supply 380V Systems
Energy Saving CNC Spring Machine Max Fourteen Axes Power Supply 380V Systems
Energy Saving CNC Spring Machine Max Fourteen Axes Power Supply 380V Systems
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-40T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 30 Days
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 20 Pcs Per Month
Contact Now
Detailed Product Description
Wire Diameter: High-carbon Steel:1-4mm Low Carbon Steel:2-6mm Place Of Origin: Dongguan,China
Wire Feed Roller: 4 Sets Nearest Port: Shenzhen
Servo Motor: Sanyo Voltage: 3AC380V/50HZ
Brand Name: HYD Machine Color: Blue
Highlight:

cnc coiling machine

,

cnc spring making machine

Energy Saving CNC Spring Machine Max Fourteen Axes Power Supply 380V Systems
Efficient Spring Forming Machine With Max Fourteen Axes Power Supply 380V
High-performance CNC spring forming machine designed for precision manufacturing with advanced control systems.
Model HYD-40T-12A
Axis Count Twelve axis
Wire Size Range Low carbon steel: 2-6mm
High-carbon steel: 1-4mm
Lead Rail Distance of 100mm
Wire Feeding Count 4 pairs
Max Feeding Speed 100m/min
Maximum Error ± 0.05mm (length)
Control System + Decoiler 1 set
Servo Motor Power 27KW
Reducer 11pcs
Minimum Length of Angle 4 times wire diameter
Machine Size 1920*1200*1820mm
Machine Weight 3000kg
Product Images

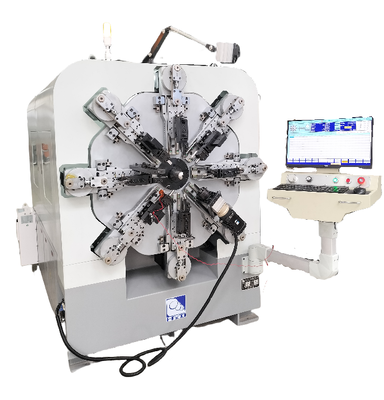

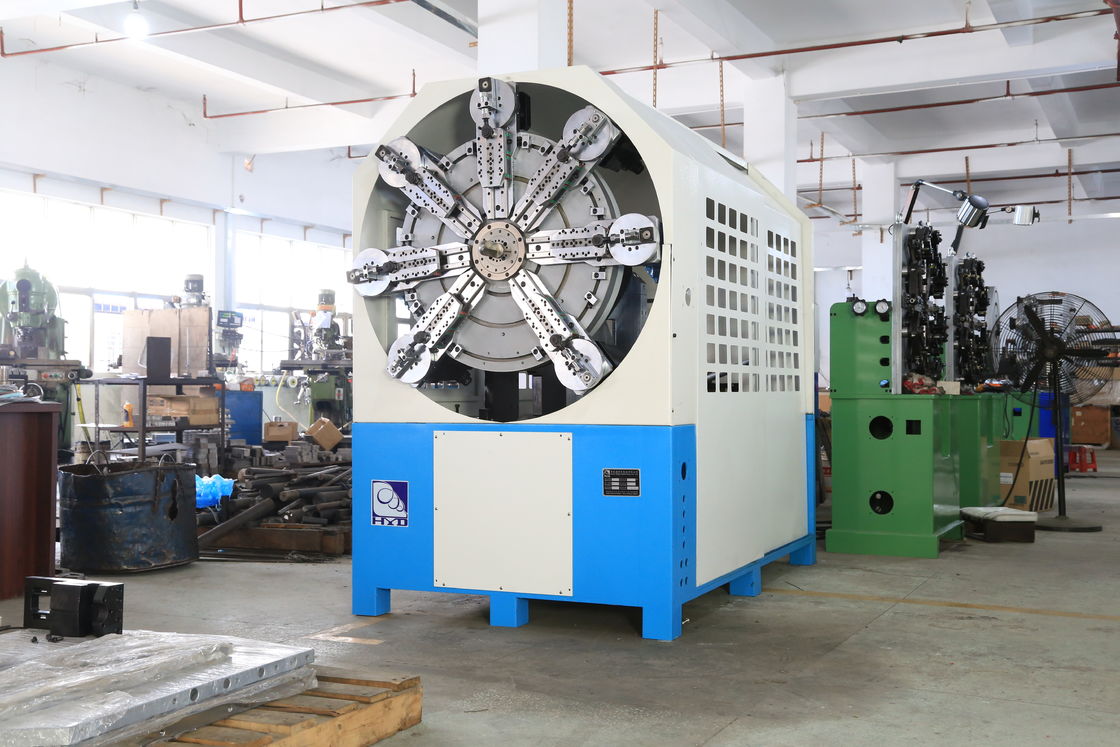

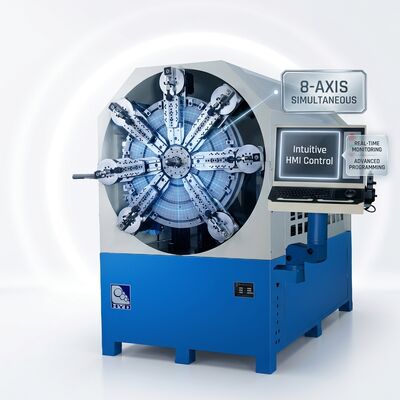

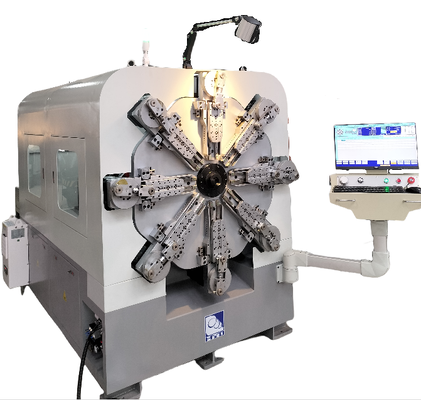

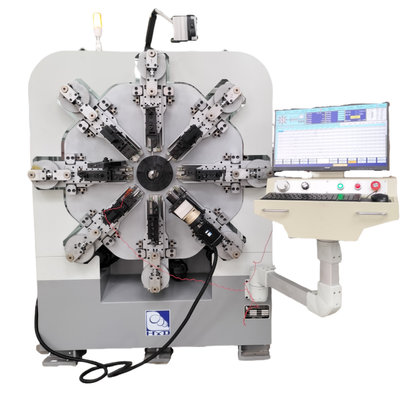

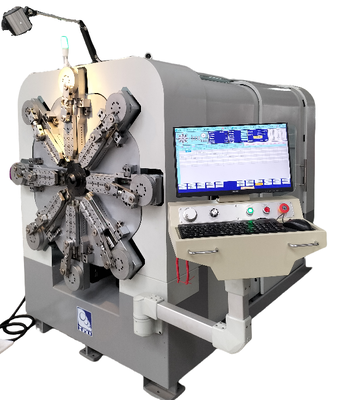

CNC Spring Machine front view CNC Spring Machine side view CNC Spring Machine control panel CNC Spring Machine detailed view
Machine Details
  • Equipped with computer-controlled system imported from Taiwan and servo motor imported from Japan
  • Parameters such as major diameter and angle can be modified at any time according to working status displayed on fluorescence screen
  • Suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and other different spring and special-shaped springs
Manufacturing Process
CNC Spring Machine manufacturing process CNC Spring Machine assembly process
Packaging & Delivery
Packaging Details: Standard sea-worthy 2 plywood-cases to pack this machine
Delivery Port: Shenzhen or other specially designated port
After-Sale Service
  • Free installation & training service in HYD company
  • Always provide customers efficient on-line response
  • Free technical support, installation and training of machine
Technical Support
When machine goes wrong:
  • Talk with HYD specialist online by telephone, Skype, WhatsApp etc and give high-efficient solution for incorrect operation or change consumable parts
  • HYD specialist will teach you how to change parts during training time
