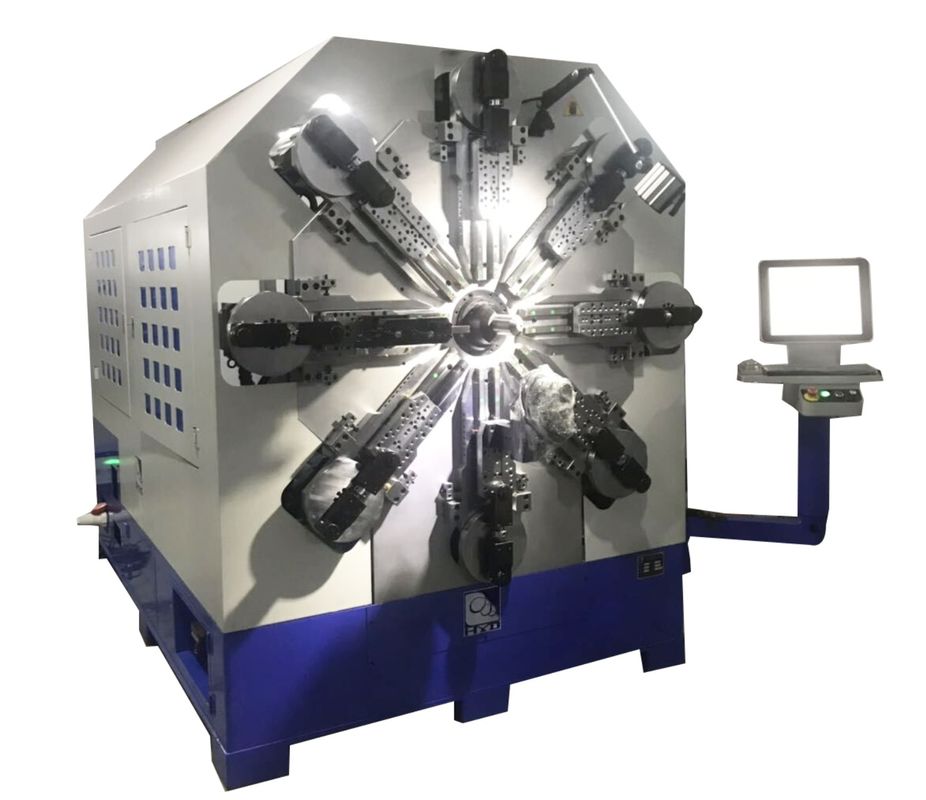

High Accuracy CNC Spring Making Machine Single - Axis Servo Motor Control

High Accuracy CNC Spring Making Machine Single - Axis Servo Motor Control

High Accuracy CNC Spring Making Machine Single - Axis Servo Motor Control

Product Details:

Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-60T-12A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 20 Days
Payment Terms: Negotiable
Contact Now
Detailed Product Description
Wire Diameter: Low-carbon Steel 3-8mm High-carbon Steel 2-6mm Number Of Axis: 12 Axes
Origin: China HS Code: 84633000
Port: Shenzhen,China Trademark: HYD
After-sales Service Provided: Engineers Available To Service Machinery Overseas Color: Requirement
Name: Automatic CNC Spring Coiling Machine Price Power Ac: 380V±10%V50HZ



High Accuracy CNC Spring Making Machine Max Feeding Speed 100m / Min



Machine Features

1. Using the link rocker design, independent single-axis servo motor control, simple and convenient operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase
production efficiency.

2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track Design, you can adjust the left and right, more flexible adjustment.


3. Taiwan helical gear reducer, the intensity more secure.


4. Taiwan control system, more effectively ensure the mechanical and computer synchronization.


5. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.



Twelve Axes multi-functional CNC spring machine
Model HYD-60T-12A
Axis Count 12 axis
Wire Size Range low carbon steel:3-8mm
high-carbon steel:2-6mm
Lead rail distance of 130mm
Wire feeding count 4 pairs
Max Feeding speed 80m/min
Maximum error ±0.1(length)
Control system+decoiler 1 set
Servo motor power 49.7KW
Reducer 11pcs
Minimum length of angel 4 times wire diameter
Machine size 2600*1400*2050mm
Machine weight 4500kg



Decoiler Equipment

High Accuracy CNC Spring Making Machine Single - Axis Servo Motor Control

Product Drawing

High Accuracy CNC Spring Making Machine Single - Axis Servo Motor Control

High Accuracy CNC Spring Making Machine Single - Axis Servo Motor Control

HYD Service

1. Free training is provided in HYD production base.Pictures and video of the machine operation will be sent for confirmation before shipment.



2.The professional and patient consulting service will help you find the suitable solution.



3.Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.



4.HYD provide technical support by email and phone,technicians will be available at your side if necessary.



5.Spare parts will be freely supplied during the guarantee period(one year), original cost after this period.
