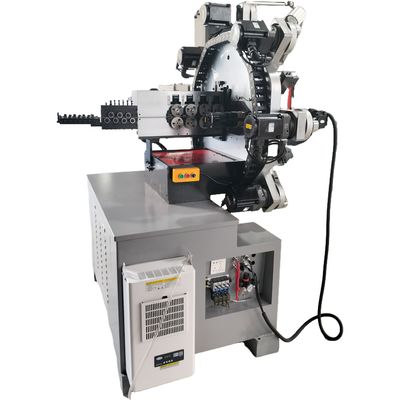

Computerized Tension Torsion Spring Making Machine With Ten-Twelve Axes Systems

Computerized Tension Torsion Spring Making Machine With Ten-Twelve Axes Systems

Computerized Tension Torsion Spring Making Machine With Ten-Twelve Axes Systems
Computerized Tension Torsion Spring Making Machine With Ten-Twelve Axes Systems
Computerized Tension Torsion Spring Making Machine With Ten-Twelve Axes Systems
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-45T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 15 Days
Payment Terms: Negotiable
Contact Now
Detailed Product Description
Wire Diameter: 1.0-4.0mm Number Of Axis: Twelve Axes
Power: 380V 50Hz Servo Motor: Japan Brand
Control System: Taiwan FOB Port: Shenzhen,China
Training: Available Warranty: 1 Year
Color: Customized Power Ac: 380V±10%V50HZ
Highlight:

cnc coiling machine

,

cnc spring making machine

Computerized Tension Torsion Spring Making Machine With Ten-Twelve Axes Systems
Computerized Tension Torsion Spring Making Machinery With Twelve Axes

Advanced computerized spring making machinery designed for precision manufacturing of tension and torsion springs with multi-axis control system.

Technical Specifications
Model HYD-40T-10A
Axis Count Ten axis
Wire Size Range Low carbon steel: 2-6mm
High-carbon steel: 1-4mm
Lead Rail Distance of 100mm
Wire Feeding Count 4 pairs
Max Feeding Speed 100m/min
Maximum Error ± 0.05mm (length)
Control System + Decoiler 1 set
Servo Motor Power 27KW
Reducer 11pcs
Minimum Length of Angle 4 times wire diameter
Machine Size 1920×1200×1820mm
Machine Weight 3000kg
Decoiler and Machine Images

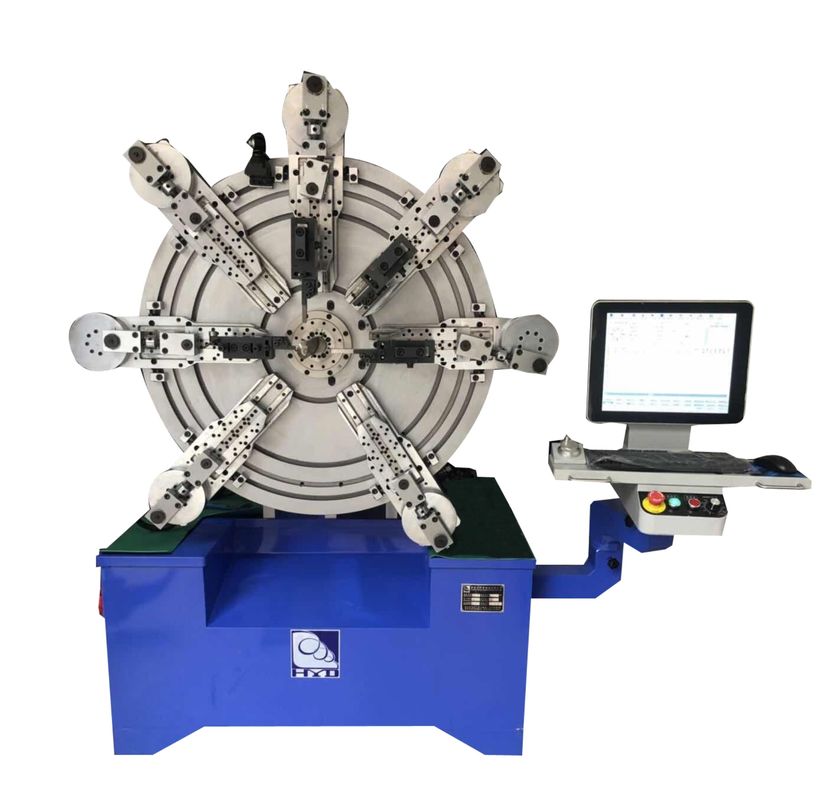

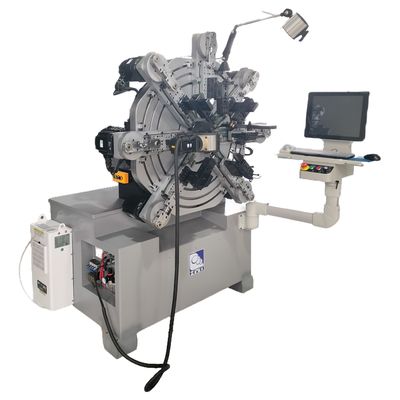

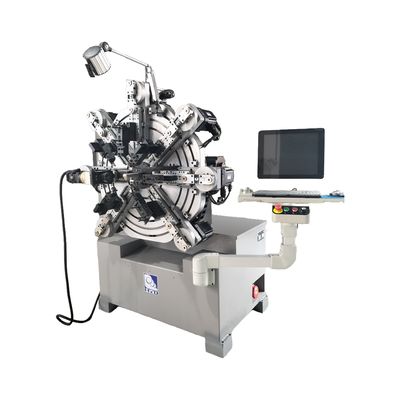

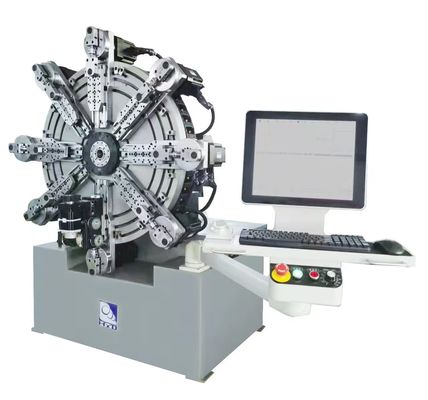

Computerized spring making machine front view Spring machine control panel and interface Close-up of spring manufacturing mechanism Spring machine production setup Machine wire feeding system Spring machine operational view Complete spring manufacturing system
After-Sales Service
  • Professional and patient consulting service to help you find the suitable solution
  • Further negotiation about technical details, machine configuration, pricing, payment terms and delivery time
  • Comprehensive control of machine production schedule and quality with regular updates
  • Free training and accommodation during machine inspection, with photos and video confirmation before shipment
  • Efficient and secure shipment management including booking, container loading, and documentation
  • Technical support via email, phone, or on-site technician dispatch when necessary
  • Free spare parts during one-year guarantee period, with original cost parts supply thereafter
