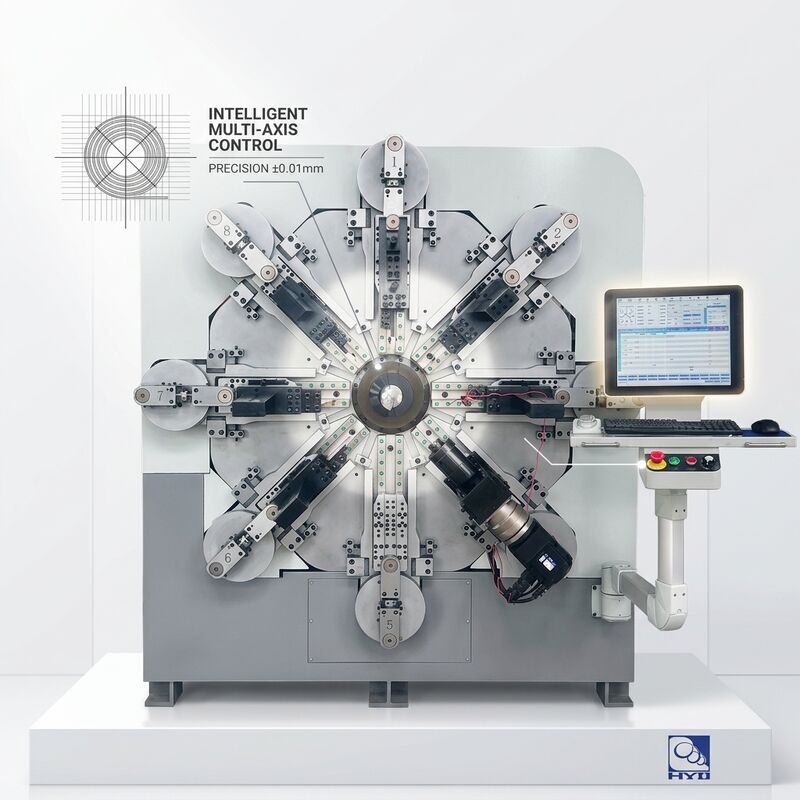

High Accuracy CNC Spring Machine Single - Axis Servo Motor Control

High Accuracy CNC Spring Machine Single - Axis Servo Motor Control

  • High Accuracy CNC Spring Machine Single - Axis Servo Motor Control
High Accuracy CNC Spring Machine Single - Axis Servo Motor Control
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-60T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 20 Days
Payment Terms: Negotiable
Contact Now
Detailed Product Description
Wire Diameter: Low-carbon Steel 3-8mm High-carbon Steel 2-6mm Number Of Axis: 12 Axes
HS Code: 84633000 Port: Shenzhen,China
Trademark: HYD Color: Requirement
After-sales Service Provided: Video Technical Support Certification: ISO9001,CE ISO,SGS
Voltage: Three-phrase 380V/220V Type: CNC
Item: Universal Automatic CNC Wire Spring Making Machine
High Light:

cnc coiling machine

,

cnc spring making machine



High Accuracy Torsion Spring Coiling Machine Single - Axis Servo Motor Control



Machine Features

1. Using the link rocker design, independent single-axis servo motor control, simple and convenient operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase
production efficiency.

2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track Design, you can adjust the left and right, more flexible adjustment.


3. Taiwan helical gear reducer, the intensity more secure.


4. Taiwan control system, more effectively ensure the mechanical and computer synchronization.


5. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.



Twelve Axes multi-functional CNC spring machine
Model HYD-60T-12A
Axis Count 12 axis
Wire Size Range low carbon steel:3-8mm
high-carbon steel:2-6mm
Lead rail distance of 130mm
Wire feeding count 4 pairs
Max Feeding speed 80m/min
Maximum error ±0.1(length)
Control system+decoiler 1 set
Servo motor power 49.7KW
Reducer 11pcs
Minimum length of angel 4 times wire diameter
Machine size 2600*1400*2050mm
Machine weight 4500kg



Decoiler Equipment

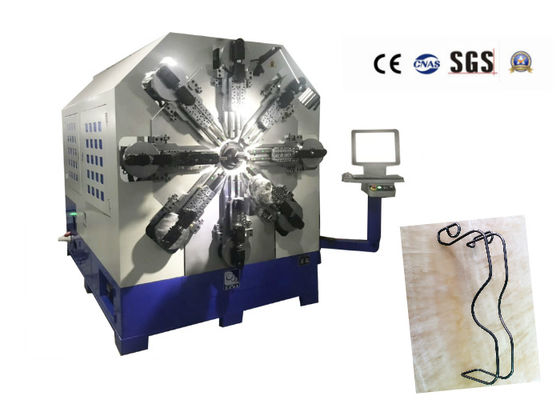

High Accuracy CNC Spring Machine Single - Axis Servo Motor Control 0

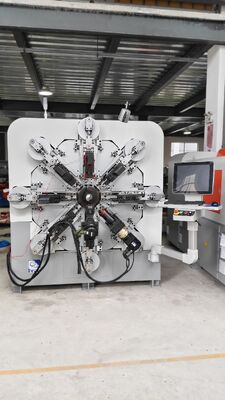

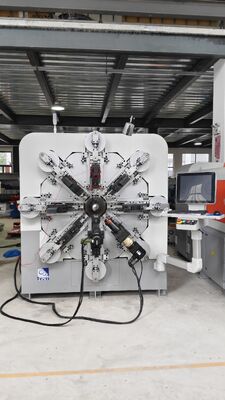

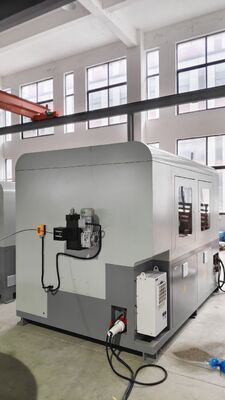

Product Drawing

High Accuracy CNC Spring Machine Single - Axis Servo Motor Control 1High Accuracy CNC Spring Machine Single - Axis Servo Motor Control 2High Accuracy CNC Spring Machine Single - Axis Servo Motor Control 3





Company commission
Our products are to meet customer’s requirement

To provide customer best quality products is our basic requirement of work,our final purpose of work is to help customer succeed through high and accurate products.





Our technology is to guide customer’s consumption

In the high-tech field, take advanced concept as a guide. Huayida take this as responsibility to attrack customer consumption.



Our service is to exclude customer’s concern

We deliver to customers not only quality products, as well as quality services. Allowcustomers to enjoy the service, which is the purpose of service to the concept of active service, allowing customers to secure the benefits of the product.
