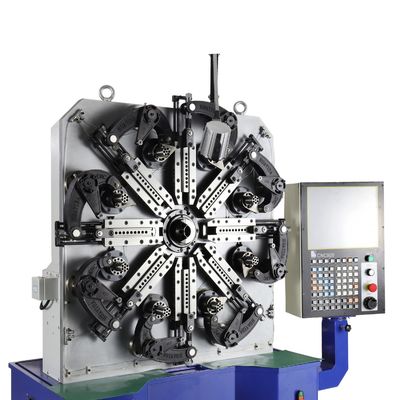

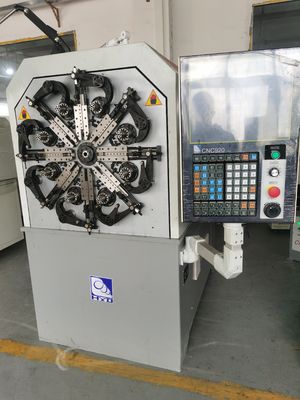

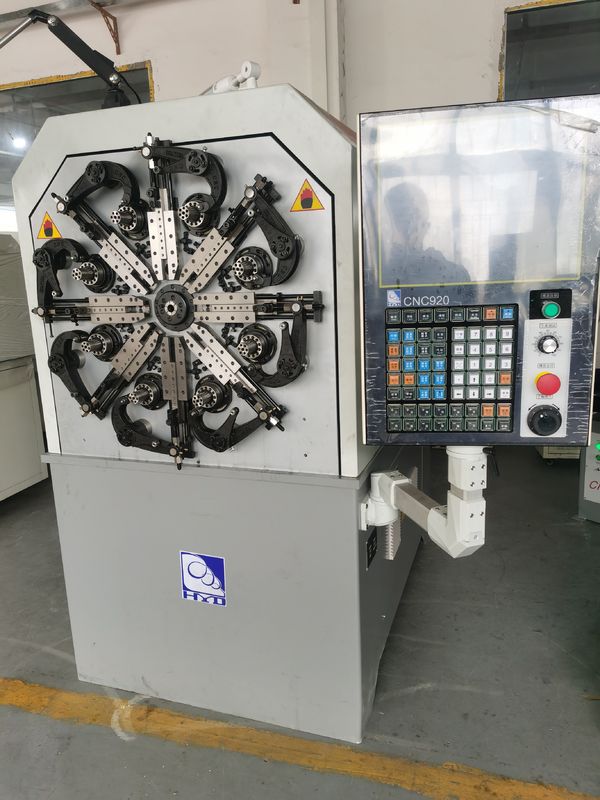

4mm Cam Wire Rotary Spring Forming Machine With Spinner Easy To Operate

4mm Cam Wire Rotary Spring Forming Machine With Spinner Easy To Operate

4mm Cam Wire Rotary Spring Forming Machine With Spinner Easy To Operate
4mm Cam Wire Rotary Spring Forming Machine With Spinner Easy To Operate
4mm Cam Wire Rotary Spring Forming Machine With Spinner Easy To Operate
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-40T-5A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 30 Days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Wire Diameter: 1.0-4.0mm Place Of Origin: Dongguan,China
Number Of Axie: 5 Axes Advantage: Fast,easy To Operate
Motor Brand: Japan Voltage: 3AC380V/50HZ
Brand Name: HYD Machine Color: Blue
High Light:

cnc coiling machine

,

cnc spring making machine



4mm Cam Wire Rotary Spring Forming Machine With Spinner





HYD-40T-5A Spring Machine With Wire Rotary





Model



HYD-40T-5A



Number of Axis



5 Axes



Wire Size Range



1.0-4.0mm



Outside Diameter



Max 60mm



Feeding speed



100m/min



Control system+decoiler



1 set



Wire Feed



5.5KW



Wire Rotary



4.5KW



Cam



5.5KW



Quill



1.0KW



Spinner



1.0KW



Machine Dimension



2300*1500*2000mm



Machine Weight



3000KG





Machine Details

1. Equipped with the computer-controlled system imported from Taiwan and servo motor imported from Japan.



2. The parameters such as major diameter and angle can be modified at any time according to the working status displayed on the fluorescence screen.



3. It is suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and other different spring and special-shaped spring etc.

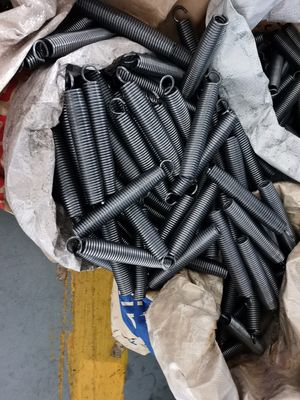

Spring Sample​

4mm Cam Wire Rotary Spring Forming Machine With Spinner Easy To Operate 0

Machine Toolings

4mm Cam Wire Rotary Spring Forming Machine With Spinner Easy To Operate 14mm Cam Wire Rotary Spring Forming Machine With Spinner Easy To Operate 2

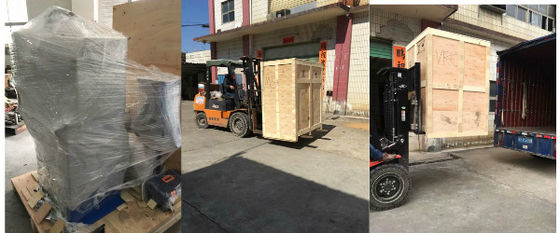

Packaging & Delivery

--- Packaging Details in standard sea-worthy 2 plywood-cases to pack this machine,



Delivery Port

--- Shenzhen or other specially designated port.





Company Introduction

---- HYD is a production and sales combined company, with more than 15 years experience in spring machine industry, which make us become a



experienced and reliable supplier.HYD manufacture CNC spring machine,wire bending machine,spring coiling machine ect,all of them are



CNC,automatic.
