5 Axis Japan Motor Spring Former Wire Rotation Spring Machine

5 Axis Japan Motor Spring Former Wire Rotation Spring Machine

5 Axis Japan Motor Spring Former Wire Rotation Spring Machine
5 Axis Japan Motor Spring Former Wire Rotation Spring Machine
5 Axis Japan Motor Spring Former Wire Rotation Spring Machine
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-40T-5A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram, T/T,Cash
Supply Ability: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Number Of Axes: Five Axes Wire Diameter: 0.8-4.0mm
Wire Feed Length: Unlimited Delivery Date: 20 Days
Port: Shenzhen,China After-sales Service Provided: Engineers Available To Service Machinery Overseas
Color: Customized Warranty: 1 Year
Certification: ISO9001,CE ISO Sample: Freely Provided

5 Axis CNC Spring Former Wire Rotation Spring Machine 4.0mm



Mechanical features and functions:
1. The machine has cams design, and the mandrel adopts standardized design and installation is simple and fast! Production is more stable and faster speed, very good for big quantities.
2. It has the advantages of a traditional 8-station machine and a spinner, which can be bended on any degress. (Production of difficult springs is easier, faster and more accurate)
3. Imported Sanyo Denki servo and imported precision planetary reducer are used for transmission, and the operation accuracy reaches European standards.
4. Using standardized sliders design, each arm can maintain high precision and high stability, reducing equipment maintenance costs.
5. The new wire rotating design is convenient and quick to debug. All parts are good rigidity, accurate and stable positioning, no collision and heat generation!
6. The high-intelligence module of the control system, automatic imaging detection and alarm.



Introduction

1. The computer has a Chinese interface, easy to operate, accurate positioning, the computer can control three to eight servo motors, and all motors can run synchronously or independently;
2. Equipped with precision detection and tracking equipment (probe);
3. According to the working conditions on the fluorescent screen, the outer diameter angle of the product can be corrected at any time;
4. Automatic lubrication and oil supply design for mechanical and automatic parts to ensure long-term operation of the equipment;
5. The automatic shutdown design and the automatic acceleration function of the wire stand when the wire is wireless, disconnected or tangled, making production easier and more effective;
6. Suitable for the production of double torsion springs, straight springs, pagoda springs, tension springs, rectangular springs, wire forming, steel coil springs, clockwork and various fancy springs, complex and difficult special-shaped springs.

7. HYD-40T-5A CNC Versatile Spring Former combines precision CNC controlled servo-motion system and conveniences of mechanization.
8. HYD-40T-5A CNC versatile spring Former is equipped with eight slides. We design tools for individual use such as bending, coiling, pitching, forming, and cutting.
9. HYD-40T-5A CNC versatile spring coiling machine is able to produce torsion springs, compression springs, tension / extension springs, abnormal machine, taper-spring, wire-forms and other related spring products.
10. It has 5 axis, can be more axes as per requirement.All servo motor are imported from SANYO(Japan).



Parameters

 HYD-40T-5A Spring Machine With Wire Rotary

Model

HYD-40T-5A

Number of Axis

5 Axes

Wire Size Range

1.0-4.0mm

Outside Diameter

Max 60mm

Feeding speed

100m/min

Motor Power

17.5KW

Machine Dimension

2300*1500*2000mm

Machine Weight

3000KG





After-sale service

---Free installation & training service in HYD company.

---Always provide customers efficient on-line response.



Can you provide technical support?

---HYD provide free technical support,installation and training of machine.



How do you support when machine goes wrong.

---Talk with HYD specialist online by telephone, Skype, WhatsApp etc and give high-efficient solution for the incorrect operation or change the consumable parts.

---HYD specialist will teach you how to change the parts during the training time





Spring Samples

5 Axis Japan Motor Spring Former Wire Rotation Spring Machine 0

5 Axis Japan Motor Spring Former Wire Rotation Spring Machine 1

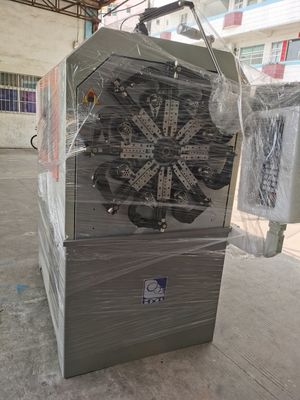

Shipment

5 Axis Japan Motor Spring Former Wire Rotation Spring Machine 2
