Place of Origin: | Dongguan,China |
Brand Name: | HYD |
Certification: | CE/IS9001 |
Model Number: | HYD-60T-12A |
Minimum Order Quantity: | 1set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Seaworthy Plywood Case |
Delivery Time: | 20 Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Wire Diameter: | 2-6mm | Number Of Axes: | 12 Axes |
---|---|---|---|
Transport Package: | Sea-worthy Plywood Case | Servo Motor: | Sanyo |
Origin Place: | GuangDuan,China | HS Code: | 8463300000 |
Port: | Shenzhen | Payment: | 30% Deposit In Advance, Balance Payment Before Shipment |
Highlight: | CNC Deformed Spring Making Machine,Camless Deformed Spring Making Machine,Servo Motor Camless CNC Spring Machine |
6.0mm Mutifuntional Camless Cnc Spring Machines
Model | HYD-60T-12A |
Number of Axes | 12 Axes |
Wire Diameter | Low carbon Steel:3-8mm High carbon Steel:2-6mm |
Lead Rail | Distance of 130mm |
Wire Feeding Number | 4 pairs |
Max Wire Feed Speed | 80m/min |
Max Error | +/-0.1(Length) |
Servo Motor Power | 50.7kw |
Reducer | 11pcs |
Min Angel Length | 4 Time wire Diameter |
Machine Dimension | 2600*1400*2050mm |
Machine Weight | 4500kg |
Machine Features
1. Using the link rocker design, independent single-axis servo motor control, simple and convenient operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase
production efficiency.
2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track Design, you can adjust the left and right, more flexible adjustment.
3. Taiwan helical gear reducer, the intensity more secure.
4. Taiwan control system, more effectively ensure the mechanical and computer synchronization.
5. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.
Product made by our spring machine

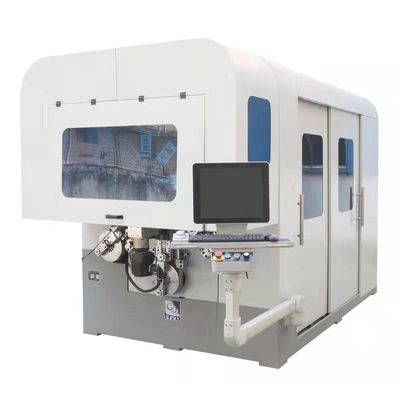

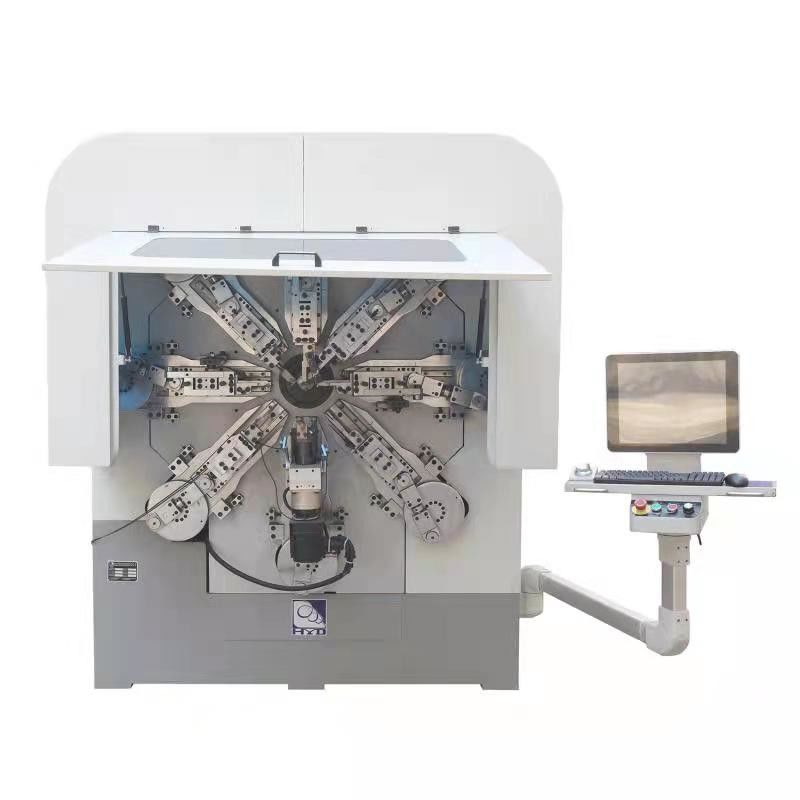

Machine Pictures:
