| Place of Origin: | DuangGuan,China |
| Brand Name: | HYD |
| Certification: | CE,IS9001 |
| Model Number: | HYD-40T-12A |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Seaworthy Plywood Case |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 set per year |
| Wire Diameter: | Low Carbon Steel:2-6mm High-carbon Steel:1-4mm | Axis: | 12 Axes |
|---|---|---|---|
| Optional Tools: | Spinner/Machine Hand/Servo Scissors | Servo Motor: | Sanyo |
| Payment Term: | 30% Deposit, Balance Payment Before Delivery | Guarantee Period: | One Year |
| Port: | Shenzhen,China | Model: | HYD-40T-12A |
| High Light: | Camless Spring Wire Machine,12 Axis Spring Wire Machine,Sanyo Servo Motor Wire Forming Machine |
||

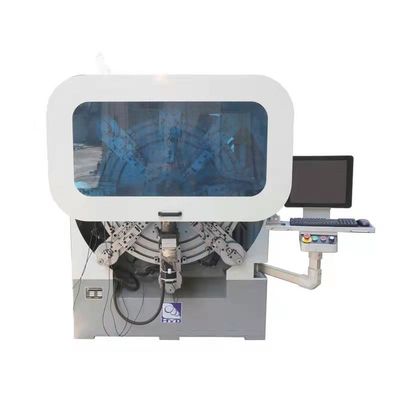

Sanyo Servo Motor 12 Axis Camless Suspension Spring Former Wire Making Coiler Machine
1. FEATURES AND APPLICATIONS:
* To shorten setup periods and boost production efficiency, a shaped spring can be positioned at the angle of the tooling using the link rocker design, independent single-axis servo motor control, and easy-to-use interface.
*Taiwan double roller guides are more durable and offer better resistance to wear, ensuring accuracy. Dual-track design: for more flexible adjustments, you can move the left and right.
*The intensity is made more secure by the Taiwan helical gear reducer.Taiwan control system, which more successfully maintains synchronization between computers and machines.
*To Line: lowering the delivery line box load, raising the line's turn angle, and effectively isolating the motor from the power transmission line Verify the line feed transfer lines' correctness.
2. SPECIFICATION:
| Model | HYD-40T-12A |
| Number of Axes | 12 Axes |
| Wire Diameter | Low carbon Steel:2-6mm High carbon steel:1-4mm |
| Guide Rail | Distance of 100m |
| Wire Feed Roller | 4 Pairs |
| Max Wire Feed Speed | +/-0.05 |
| Max Wire Feed Speed | 100m/min |
| Control System+Decoiler | 1 set |
| Serve Motor Power | 27kw |
| Reducer | 11pcs |
| Minimum Length of Angel | 4Times Wire Dianeter |
| Machine Dimension | 1920*1200*1820mm |
| Machine Weight | 3000kg |
More Machine Pictures:
