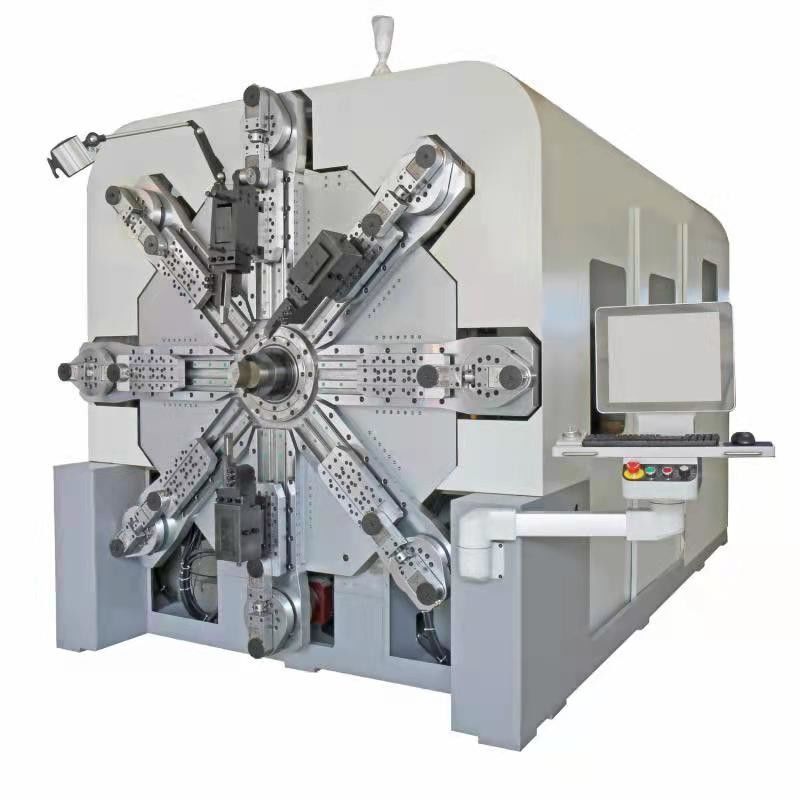

Camless CNC Compression Spring Forming Machine With 12 Axes

Camless CNC Compression Spring Forming Machine With 12 Axes

Camless CNC Compression Spring Forming Machine With 12 Axes
Camless CNC Compression Spring Forming Machine With 12 Axes
Camless CNC Compression Spring Forming Machine With 12 Axes
Product Details:
Place of Origin: DuangGuan,China
Brand Name: HYD
Certification: CE,IS9001
Model Number: HYD-40T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Wire Diameter: Low Carbon Steel:2-6mm High-carbon Steel:1-4mm Axis: 12 Axes
Optional Tools: Spinner/Machine Hand/Servo Scissors Servo Motor: Sanyo
Payment Term: 30% Deposit, Balance Payment Before Delivery Guarantee Period: One Year
Port: Shenzhen,China Model: HYD-40T-12A
High Light:

12 Axes Spring Forming Machine

,

Camless Compression Spring Forming Machine

,

CNC Compression Spring Making Machine

Compression Camless CNC Forming Spring Machine With 12 Axes

ModelHYD-40T-12A
Number of Axes12 Axes
Wire DiameterLow carbon Steel:2-6mm   High carbon steel:1-4mm
Guide RailDistance of 100m
Wire Feed Roller 4 Pairs
Max Wire Feed Speed+/-0.05
Max Wire Feed Speed100m/min
Control System+Decoiler1 set
Serve Motor Power27kw
Reducer11pcs
Minimum Length of Angel4Times Wire Dianeter
Machine Dimension1920*1200*1820mm
Machine Weight 3000kg



Machine Features:

1. Using the link rocker design, independent single-axis servo motor control, simple and convenient
operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase
production efficiency.
2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track
Design, you can adjust the left and right, more flexible adjustment.

3. Taiwan helical gear reducer, the intensity more secure.

4. Taiwan control system, more effectively ensure the mechanical and computer synchronization.

5. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.

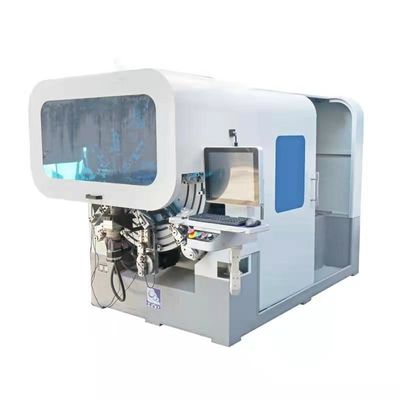

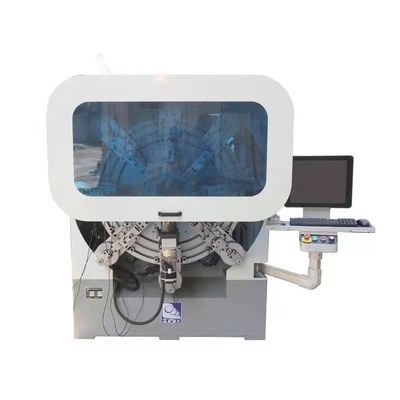

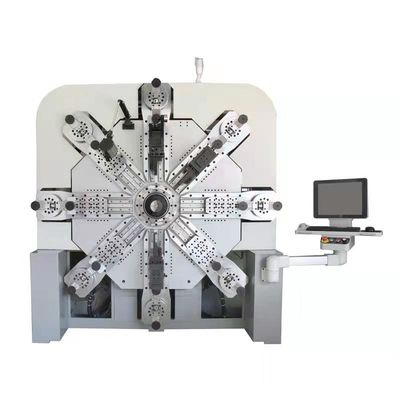

More Machine Pictures:

Camless CNC Compression Spring Forming Machine With 12 Axes 0Camless CNC Compression Spring Forming Machine With 12 Axes 1Camless CNC Compression Spring Forming Machine With 12 Axes 2
Camless CNC Compression Spring Forming Machine With 12 Axes 3
Camless CNC Compression Spring Forming Machine With 12 Axes 4
