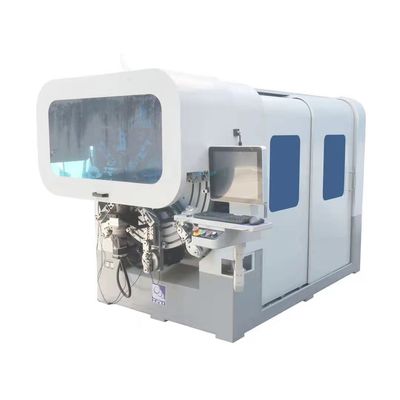

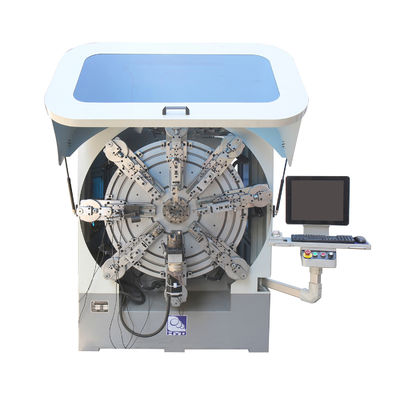

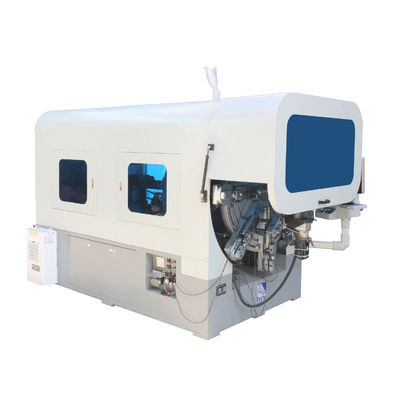

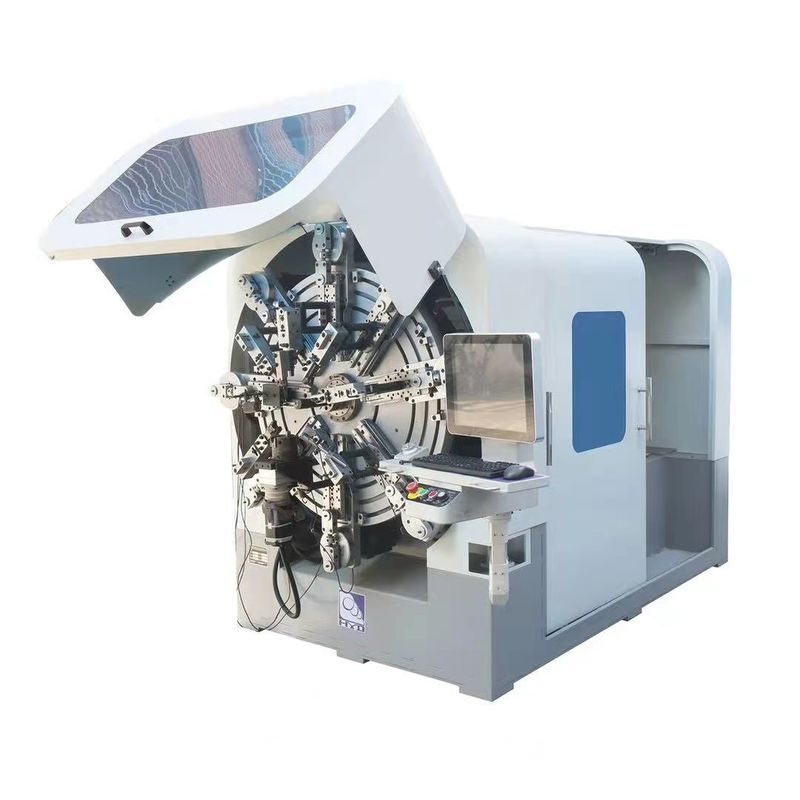

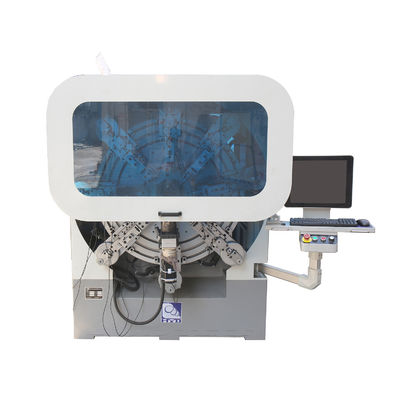

Camless 360 Degree Rotary 4mm Wire CNC Spring Machine

Camless 360 Degree Rotary 4mm Wire CNC Spring Machine

Camless 360 Degree Rotary 4mm Wire CNC Spring Machine
Camless 360 Degree Rotary 4mm Wire CNC Spring Machine
Camless 360 Degree Rotary 4mm Wire CNC Spring Machine
Product Details:
Place of Origin: Dongguan, Guangdong, China
Brand Name: HYD
Certification: CE
Model Number: 40T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: USD 58000-73000
Packaging Details: Wooden case/ Vacuum packing
Delivery Time: 25-35 days
Payment Terms: Western Union, MoneyGram, L/C, T/T, Cash
Supply Ability: 5 sets/ 2 months
Contact Now
Detailed Product Description
Wire Size: 1-4.2mm Wire Feed Wheels: 4 Groups
Servo Motors: 12-16 Pcs Guide Rail Claws: 8 Pcs
Wire Rotary Angle: 360 Degrees Guide Rail: Taiwan
High Light:

4mm Wire CNC Spring Machine

,

360 Degree Rotary CNC Spring Machine

,

4mm Wire Spring Manufacturing Machine

4mm CNC Spring Machine Camless Spring Former Wire Rotary Machine



Introduction

40T-12A Camless CNC wire rotation machine is a 1-4.2mm spring machine, controlled by CNC system and 12 servo motors. It is driven by an industrial power supply to drive a servo motor, gears, and then a belt, a guide rail and a bearing are used to drive and rotary the wire to make the products what you need. The camless spring machine is a new multi-functional wire forming machine. It is convenient for commissioning, saving time for adjustment, and greatly improving work efficiency. Equipped with the wire rotary function, it can rotate the wire direction at multiple angles of 360 degrees to solve multi-dimensional space products. It can produce a variety of special-shaped springs, compression springs, extension springs, double tension springs, torsion springs, double torsion springs, flat springs (scroll springs, clockwork springs) and various wire forming products.


1. The gears and guide rails are wearable, can be used many years.


2. Servo motors are from Japan, it is used very well.


3. Tools, bearings and spare parts are durable that is saving cost in long term working.


4. Wire feed structure is 4 groups of wire feeding wheels, 2 sets of straightener wheels and a wire rotary function. Customer could select number of wire feed wheel groups and wire rotary under products requirements.


5. CNC system is Chinese and English version, easy to study, teach and train.

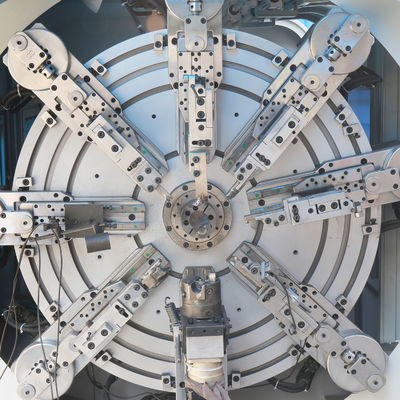

6. Wire rotary device and Quil can be rotated in 360°, very convenient for adjusting angle and shape of springs.


7. Dome light is goodd for commissioning springs.


8. Electromagnetic valve is used for installing probe or air cylinder to check springs.


9. Side power socket supply power when it is adding other device or repairing.


10. Air conditioner is for lower the temperature to extend the life of machinery and accessories.


11. Transformer is set under customer voltage.


12. Decoiler is woking together which can be selected 200 or 500kg tray.





Technical parameters

HYD-40T-12A Twelve- axes Cam-less spring machine
Model HYD-40T-12A
Number of Axes 12 Axes
Wire Diameter low carbon steel:2-6mm
high-carbon steel:1-4mm
Guide Rail distance of 100mm
Wire Feed Roller 4 pairs
Max Feeding speed 100m/min
Maximum error ±0.05mm(length)
Control system+decoiler 1 set
Servo motor power 27KW
Reducer 11PCS
Minimum length of ange 4 times wire diameter
Machine Dimension 2800*1980*2150mm
Machine Weight 3000KG



Certificate

CE, Patent, Made-in-China supplier, Business registtration





Packing and Shipping

Packing is Wooden case 3000*2080*2250mm, shipping by sea.





Company information

Dongguan Hua Yi Da Spring Machinery Co., Ltd., the production base; located in No.49 Yanhedong Street,Ailingkan Village,Dalingshan Town,Donguan City which is Technology Research and Development Center. Hua Yi Da established in Guangming new district,Shenzhen city. The main products are universal computer spring machine ,Computer press spring machine , wire forming spring machine, spring machine tool accessories, with various seriesof models. The company has more than 50 mechanical equipment, annual production capacity is more than 1000 units.

HYD spring machine factory began to devote itself to the production and research of machines 25 years ago, and many technical backbones have grown up together with the factory. The company has R&D and design departments, as well as sales and production workshops in Shenzhen, Dongguan and the Yangtze River Delta. The factory specializes in the production of 2D and 3D wire forming machines, cam spring machines, cam wire rotation machines, cam-free spring machines, camless wire rotating machines, screw sleeve machines, compression spring machines, etc., as well as customization, design, and development of new machines. Products are sold to more than 20 provinces in China, including the Pearl River Delta, the Yangtze River Delta, Beijing-Tianjin-Hebei, and inland. At the same time, in terms of export, the machine has reached more than 30 countries and regions on all continents in the world, such as: Japan, Taiwan, Thailand, India, Turkey, Egypt, South Africa, Eastern European countries, Brazil, Argentina, Mexico, Australia, etc.

Hua Yi Da cooperated with Taiwan Kun Joo Co., Ltd. in 2010.We work together to create the best technology for the core of brand-name enterprises,integrates production and sales as one of professional CNC spring machinery and equipment production enterprises and equipment research and development, design, manufacturing and sales. The company has a professional R & D personnel, the machining process of product design, absorb advanced foreign advanced enterprise products in the design of perfection. The assembly frontline staff are skilled operation skills, with rigorous work attitude and skills, to ensure product quality requirements.The control system and motor are from Japan,Taiwan and directly use their related products. Products has a transmission line of high precision, forming a stable accurate movement, the appearance of novel, digital control, color Chinese English interface,the operation is simple and convent,which attact majority of customers.

The purpose of our company is to improve the quality of our research and development, quality, service, to maintain positive interaction with customers, to provide complete after-sale service . The products of the company customer service service department adhering to the "service first, customer first service concept, to provide a full range of customer service products for the majority of customer service, answer customer use appear in the process of product sales problems. We could freely provide customers who buy our machine a chance to learn the production operation so that the customer could master the product use , maintenance etc.Strong technical force, advanced production equipment, modern management system make Hua Yida Spring Machinery Co. Ltd. to faster development.In the future increasingly fierce competition in the market, the company will, as always, insist on : "perfect quality, good service."





Exhibition

Cantaon Fair--Spring Industry Exhibition

Wuxi Spring Industry Exhibition





FAQ

1. How can I know which machine is suitable for me?


Tell us wire sizes, raw material, products picture, drawings, then we will discuss with engineers and give a suggestion.


2. I do not know how to use the machine and can not go to your factory, what can you help me?


A. Online or video technical support traing;


B. Share a local service person to teach you;


C. Commission the springs under your requires on the machine.


3. Why should I buy from you?


Superior machine, comptetitve price, long life, good after sale service.





After sale service

HYD Services:

1. Free training is provided in HYD production base.Pictures and video of the machine operation will be sent for confirmation before shipment.



2. The professional and patient consulting service will help you find the suitable solution.



3. Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.



4. HYD provide technical support by email and phone,technicians will be available at your side if necessary.



5. Spare parts will be freely supplied during the guarantee period(one year), original cost after this period.
