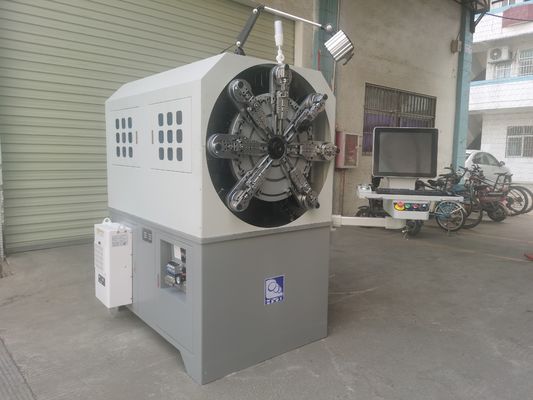

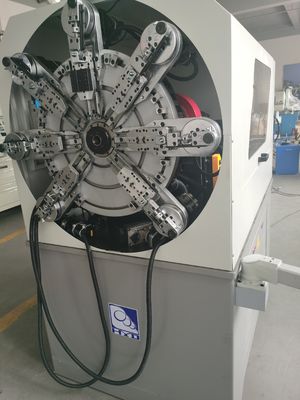

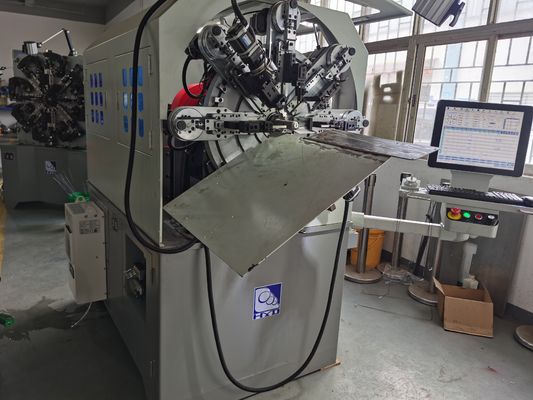

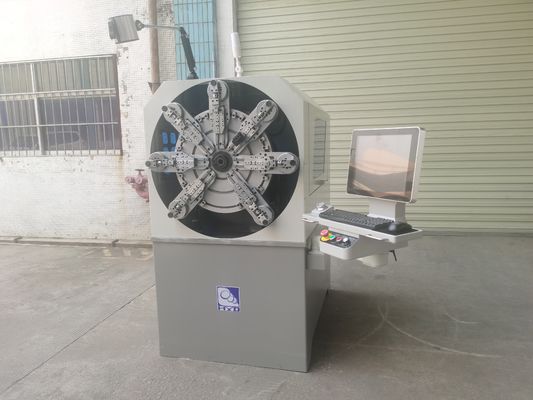

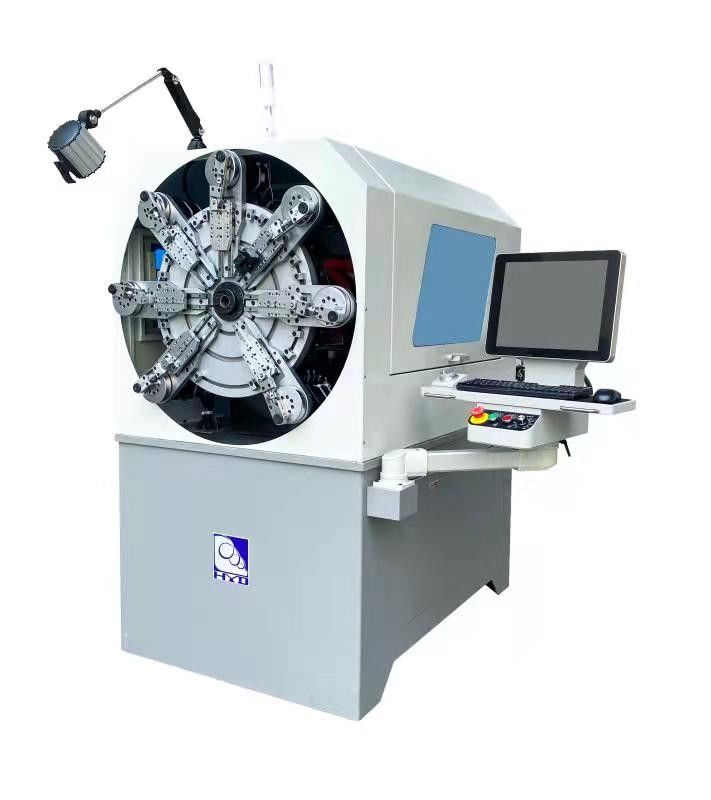

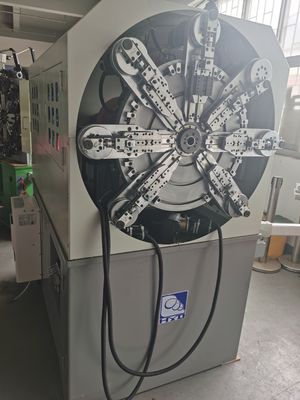

Camless Rock Free 12 Axes CNC Spring Forming Making Machine Wire Rotary Machine

Camless Rock Free 12 Axes CNC Spring Forming Making Machine Wire Rotary Machine

Camless Rock Free 12 Axes CNC Spring Forming Making Machine Wire Rotary Machine
Camless Rock Free 12 Axes CNC Spring Forming Making Machine Wire Rotary Machine
Camless Rock Free 12 Axes CNC Spring Forming Making Machine Wire Rotary Machine
Product Details:
Place of Origin: Dongguan, China
Brand Name: HYD
Certification: CE
Model Number: 25T-13A
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: USD 35000-38000
Packaging Details: Wooden case/ vacuum packing
Delivery Time: 25-35 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Cash
Supply Ability: 5 sets/month
Contact Now
Detailed Product Description
Wire Size: 0.3-2.5mm Wire Feed Groups: 2 Or 3
Servo Motors: 12-16 Guide Rail: Hiwin
Arms: 7-8 Bearing: Japan
Lead Rail: 80mm Control: CNC + Servo Motors
High Light:

Rock Free CNC Spring Forming Machine

,

Camless 12 Axes Spring Forming Machine

,

Rock Free CNC Spring Machine

2.5mm Camless Wire Rotary Machine Spring Former CNC Spring Machine





Introduction



1. It is Camless and rock free design, better for commissioning, operating, producing for all springs. Also, it is very good for making complex springs or wire formings.
2. Equipped with Japan motors, durable reducers, wearable guide rails and gears, higelth quality electrical and superior bearing, spare parts.
3. Machine is controlled by CNC computer with Chinese or English version, it is good for studying.
4. Fast commissioning samples, operation easy.
5. More durable and stable, higher precision and strength, long life more than 10 years.
6. Servo motors is 12-16 axes, including wire feed, wire rotary, quil, 8 arms, spinner, free hand, servo cutter, servo hander or other requires.
7. It is very better for making conveyor chain mesh belt or oven belt.

8. Spinner or free hand is fixed on guide rail, it is better for making products, suitable for torsion springs, special shape wire formings.

9. Decoiler could be supplied 100, 200 or 500kg loading.

10. Wire feed wheels could be 2 or 3 groups.

11. Spring index is OK for 4-16.

12. Machine protection cover can be added.





Parameters



HYD-25T-12A Twelve Axes Cam-Less CNC Spring Making Machine
Name Description
Axes 12 axes
lead rail distance of run 80mm
wire feed roller 3 pairs
max wire feed speed 70m/min
max tolerance ±0.03(length)
wire diameter 0.3--2.5mm
machine weight 1500KG
machine dimension 1400mm*1400mm*1700mm
servo motor Sanyo/ Yaskawa
control system 1 set





Packing



Wooden case/ vacuum packing

Machine is put on pallet, then wrapping with plastic film and foam, and packed wooden outside.





After sale service



1. Producing machine and tools



2. Testing machine and commissioning under samples or drawings



3.Training how to use machine, take videos for reference



4. Video or online video technical support.

    Spare parts free 1 year not including wearing parts if nature failure.

    Lifetime maintenance.

    1 years warranty.

    Supply Certificate of Origin, CE Certificate for helping custom clearance.





Company profile



Dongguan Hua Yi Da Spring Machinery Co., Ltd., the production base; located in No.49 Yanhedong Street,Ailingkan Village,Dalingshan Town,Donguan City which is Technology Research and Development Center. Hua Yi Da established in Guangming new district,Shenzhen city. The main products are universal computer spring machine ,Computer press spring machine , wire forming spring machine, spring machine tool accessories, with various seriesof models. The company has more than 50 mechanical equipment, annual production capacity is more than 1000 units.

Hua Yi Da cooperated with Taiwan Kun Joo Co., Ltd. in 2010.We work together to create the best technology for the core of brand-name enterprises,integrates production and sales as one of professional CNC spring machinery and equipment production enterprises and equipment research and development, design, manufacturing and sales. The company has a professional R & D personnel, the machining process of product design, absorb advanced foreign advanced enterprise products in the design of perfection. The assembly frontline staff are skilled operation skills, with rigorous work attitude and skills, to ensure product quality requirements.The control system and motor are from Japan,Taiwan and directly use their related products. Products has a transmission line of high precision, forming a stable accurate movement, the appearance of novel, digital control, color Chinese English interface,the operation is simple and convent,which attact majority of customers.

The purpose of our company is to improve the quality of our research and development, quality, service, to maintain positive interaction with customers, to provide complete after-sale service . The products of the company customer service service department adhering to the "service first, customer first service concept, to provide a full range of customer service products for the majority of customer service, answer customer use appear in the process of product sales problems. We could freely provide customers who buy our machine a chance to learn the production operation so that the customer could master the product use , maintenance etc.Strong technical force, advanced production equipment, modern management system make Hua Yida Spring Machinery Co. Ltd. to faster development.In the future increasingly fierce competition in the market, the company will, as always, insist on : "perfect quality, good service.”

Customers visiting

Camless Rock Free 12 Axes CNC Spring Forming Making Machine Wire Rotary Machine 0



Camless Rock Free 12 Axes CNC Spring Forming Making Machine Wire Rotary Machine 1





Spring Machine Development

Spring machine refers to the mechanical equipment that produces springs, which are divided into universal machines, compression spring machines, torsion spring machine, tension spring machines, disc machines and special spring machines according to their functional characteristics. It is composed of a fuselage, an operation panel, a wire rack, etc.
According to the driving mode, it is divided into: semi-automatic, automatic, numerical control and fully computer-controlled high-end spring machines, including WAFIOS's FMU series, FUL series, and FMK series specially developed for double twisting. There are a large number of my country's Yangtze River Delta and Pearl River Delta. The equipment manufacturing industry has a certain share in the mid-to-high-end market.
Leading the development trend of the industry is the camless computer spring machine. The camless spring machine is convenient for commissioning, faster and stable production, suitable for the production of special-shaped springs and other advantages, and it is increasingly occupying more market shares. In particular, camless spring machines are mostly 10-axis or 12-axis.
The cam spring machine is suitable for a single variety and a large number of products. The production speed is fast, the efficiency is high, and the product quality is high.
A. Control the movement of machinery, such as valve spring in internal combustion engine, control spring in clutch, etc.
B. Absorb vibration and impact energy, such as buffer spring under automobile and train carriage, vibration absorbing spring in coupling, etc.
C. Store and output energy as power, such as clock spring, spring in firearms, etc.
D. Used as force measuring element, such as force measuring device, spring in spring scale, etc. The ratio of spring load to deformation is called spring stiffness. The greater the stiffness, the harder the spring.

Camless Rock Free 12 Axes CNC Spring Forming Making Machine Wire Rotary Machine 2
