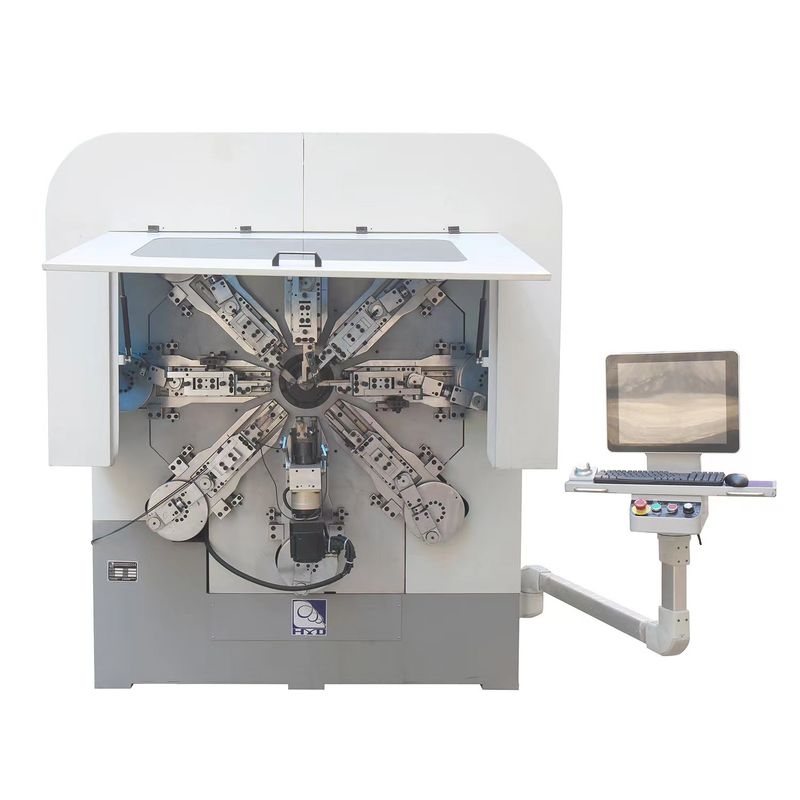

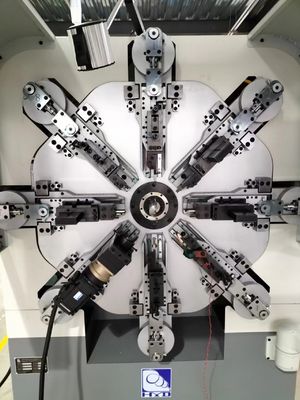

High Precision Multi Function CNC Computer Spring Machine Spring Maker Machine

High Precision Multi Function CNC Computer Spring Machine Spring Maker Machine

  • High Precision Multi Function CNC Computer Spring Machine Spring Maker Machine
  • High Precision Multi Function CNC Computer Spring Machine Spring Maker Machine
  • High Precision Multi Function CNC Computer Spring Machine Spring Maker Machine
High Precision Multi Function CNC Computer Spring Machine Spring Maker Machine
Product Details:
Place of Origin: Dongguan, China
Brand Name: HYD
Certification: CE
Model Number: 60T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: USD 66260-69000
Packaging Details: Plywood Case
Delivery Time: 30-40 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Cash
Supply Ability: 10 sets/ 2 months
Contact Now
Detailed Product Description
Wire Size: Low-carbon Steel:3-8mm;High-carbon Steel:2-6mm Process Wire: Carbon Steel/ Stainless Steel/ Music/ Cooper/ Iron/ Aluminium
Make Product: Tension/ Torsion/ Compression/ Specail Shape Spring, Wire Formings Reducer: 11pcs
Number Of Axes: 12Axes Bearing: NSK
Max Error: ±0.2(Length) Servo Motor Power: 50.7kw
Min Angel Length: 4 Time Wire Diameter Machine Dimension: 4000*2100*2300mm
High Light:

Multi Function CNC Spring Machine

,

High Precision CNC Spring Machine

,

CNC computer Spring Machine

High Precision Multi Function CNC Spring Machine Spring Maker Machine Equipment





Features:



1. The gears and guide rails are wearable, can be used many years.
2. Servo motors are from Japan, it is used very well.
3. Tools, bearings and spare parts are durable that is saving cost in long term working.
4. Wire feed structure is 4 groups of wire feeding wheels, 2 sets of straightener wheels and a wire rotary function. Customer could select number of wire feed wheel groups and wire rotary under products requirements.

5. CNC system is Chinese and English version, easy to study, teach and train.
6. Wire rotary device and Quil can be rotated in 360°, very convenient for adjusting angle and shape of springs.
7. Dome light is goodd for commissioning springs.
8. Electromagnetic valve is used for installing probe or air cylinder to check springs.
9. Side power socket supply power when it is adding other device or repairing.
10. Air conditioner is for lower the temperature to extend the life of machinery and accessories.
11. Transformer is set under customer voltage.
12. Decoiler is woking together which can be selected 200 or 500kg tray.





Machine parameters



HYD-40T-10A Twelve- axes Cam-less spring machine
Model HYD-60T-12A
Axis Count 12 Axes
Wire Size Range low carbon steel:3-8mm
high-carbon steel:2-6mm
Lead rail Stroke 200mm
Wire feeding count 4 pairs
Max Feeding speed 80m/min
Maximum error ±0.2mm(length)
Control system+decoiler 1 set
Servo motor power 50.7KW
Minimum length of ange 4 times wire diameter
Machine size 4000*2100*2300mm
Machine weight 4500KG

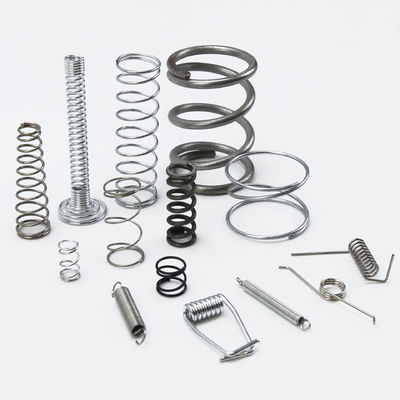

Samples:



High Precision Multi Function CNC Computer Spring Machine Spring Maker Machine 0



High Precision Multi Function CNC Computer Spring Machine Spring Maker Machine 1



High Precision Multi Function CNC Computer Spring Machine Spring Maker Machine 2High Precision Multi Function CNC Computer Spring Machine Spring Maker Machine 3
