Automatic Spring Making Machine , CNC Cam Wire Forming Machine With Wire Rotary

Automatic Spring Making Machine , CNC Cam Wire Forming Machine With Wire Rotary

  • Automatic Spring Making Machine , CNC Cam Wire Forming Machine With Wire Rotary
  • Automatic Spring Making Machine , CNC Cam Wire Forming Machine With Wire Rotary
  • Automatic Spring Making Machine , CNC Cam Wire Forming Machine With Wire Rotary
Automatic Spring Making Machine , CNC Cam Wire Forming Machine With Wire Rotary
Product Details:
Place of Origin: Dongguan, China
Brand Name: HYD
Certification: CE
Model Number: 20T-5A
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: USD 15300-28560
Packaging Details: plywood case
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Cash
Supply Ability: 30 sets/month
Contact Now
Detailed Product Description
Wire Size: 0.2-2.3mm Max Wire Feed: 141m/min
Program Storage Volume: 1000 Power Supply: 2.7kw
Life: >10 Years Slider: 8 Pcs
Voltage: 380V Machine Dimension: 1600*1500*1900mm
High Light:

Wire Rotary Spring Making Machine

,

CNC Cam Wire Forming Machine

,

Automatic Spring Making Machine

Automatic Spring Making Machine CNC Cam Wire Forming Machine With Wire Rotary



Product Description

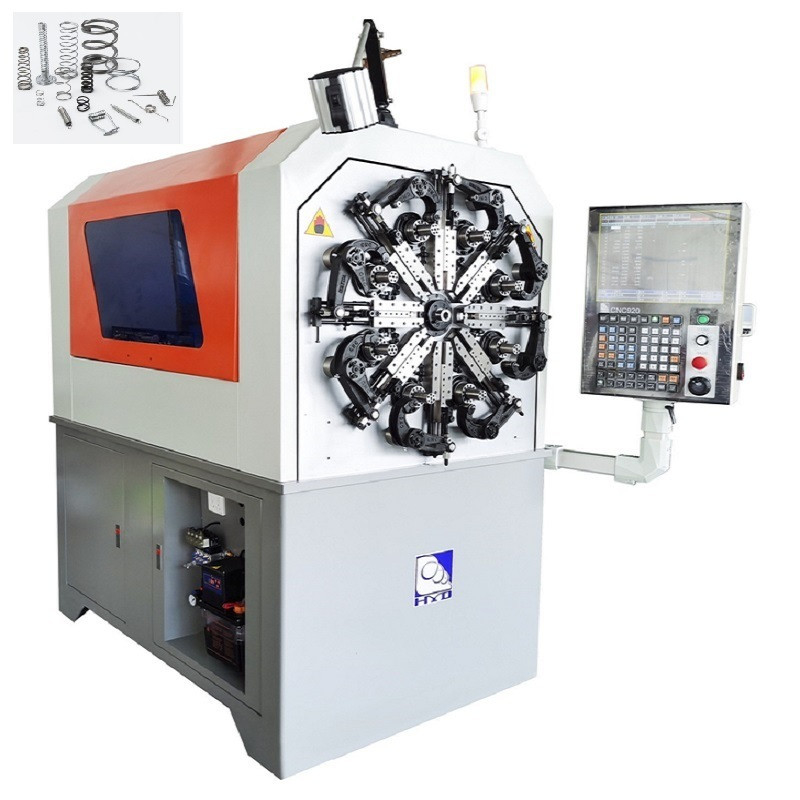

The cam wire rotary spring machine is based on the cam machine with the function of wire rotary which is convenient to operate, efficient, fast, stable, and high-precision. It is mainly composed of cam axis, wire feed axis, wire rotary axis, quil mandrel, spinner (optional accessory), etc. The five axes can be operated synchronously. Each axis is controlled by CNC. The wire feeding length, production speed, and production quantity can be modified according to its needs. It is only necessary to input data according to the drawing, and the debugging is very fast.

1. It is cam design, producing springs with high speed and accuracy, good stability.
2. Used Taiwan' s CNC system and equipped with Sanyo or Yaskawa servo motors.
3. Wire feed with rotary wire, so it is easy to commission.
4. Computer operation panel and screen displayed in Chinese and English which makes the operation easy.

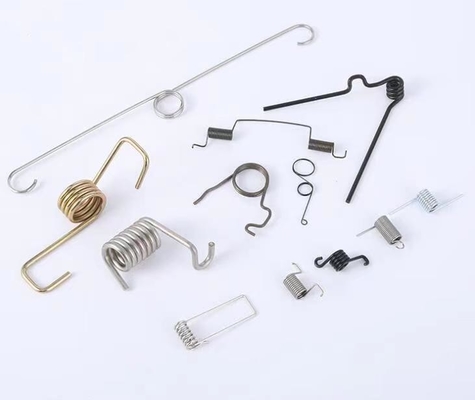

5. It is suitable for for producing double tension spring , straight spring, pagoda-shape pull the compression spring , rectangle spring, swirl spring and other different spring and special -shape spring etc.
6. Its tool has good strength and durability, longer service life, less frequent replacement in the long-term, and lower cost. At the same time, it also saves maintenance time, which is conducive to long-term mass production and greatly improves production efficiency.

Automatic Spring Making Machine , CNC Cam Wire Forming Machine With Wire Rotary 0Automatic Spring Making Machine , CNC Cam Wire Forming Machine With Wire Rotary 1

Data sheet

Model 20T-5A
Wire size Φ0.2-2.3mm
Total power 9.5KW
Servo motor axes 5
Wire feed wheels 3 groups
Wire feed 2.7KW
Wire rotary 2.7KW
Cam 2.7KW
Spinner 0.4KW
Quil 1KW
Machine size L1700xW1500xL1700MM
Weight 1500kg
Power 3 phase, 380V/50HZ



Company Introduction

Automatic Spring Making Machine , CNC Cam Wire Forming Machine With Wire Rotary 2

Huayida spring machinery factory which is located in the 1st floor, Building D, Xingyue Road, Yueshan Village, Dalingshan Town, Dongguan; The technology R&D center; It was established in Guangming new district of Shenzhen. The main production of universal CNC spring machine, computer spring coiling machine, wire forming machine, spring machine accessories and cutting tools, various series of multiple models and other products. The company has more than 10 mechaning equipment, annual production capacity 200 sets.



2010 with the well-known enterprises in Kun-chou, the company joined forces, together to create the leading technology for the core of the brand-name enterprises. Is the R & D personnel, and absorption of foreign advanced product design, advaced machining process so that the company's products in the design being perfect. Production assembly line employees have a skilled operation skill, rigorous work attitude and skilled operation skills to ensure the product quality requirements. The Company's control system and servo motor are the introduction of Japan, Taiwan and the mature technology of manufacturing and its related products. Wire feeding precision. Forming stable and accurate, the appearance of new features, digital control, color Chinese/English interface, simple operation, the majority of customers, young ignorant.



FAQ



1. Q: What information will be helping to get an accurate quotation from us?

A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc

2. Q: What is the power supply of the machine?

A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
3. Q: What is the payment term

A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment. We also accept other payment terms.

4. Q: What is the delivery time?

A: Normally the delivery time of the machine is 30 days after receiving deposit. But it depends on machine model. Some of them could be shipped within 10 days.

5. Q: What is the guarantee period of the machine?

A: The guarantee period is 1 year from the date of B/L.



Why us

• Independent R&D ability

• 15 years experience in spring machine industry

• Quick and patient reply for Before&After sale service

• Tranning in factory is available,spring set-up in machine for shipment

Automatic Spring Making Machine , CNC Cam Wire Forming Machine With Wire Rotary 3



Automatic Spring Making Machine , CNC Cam Wire Forming Machine With Wire Rotary 4





Automatic Spring Making Machine , CNC Cam Wire Forming Machine With Wire Rotary 5

Automatic Spring Making Machine , CNC Cam Wire Forming Machine With Wire Rotary 6
