Coming together is a beginning; keeping together is progress; working together is success.

|
| Place of Origin: | China |
| Brand Name: | HYD |
| Certification: | CE / IS09001 |
| Model Number: | HYD-40T-10A |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Seaworthy Plywood Case |
| Delivery Time: | 25-40days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Supply Ability: | 50 set per year |
| Axis: | 10 Axis | Wire Diameter: | 1.0-4.0mm |
|---|---|---|---|
| Max Feeding Speed: | 100m/min | Machine Size: | 1100*1400*2000mm |
| Weight: | 2500KG |

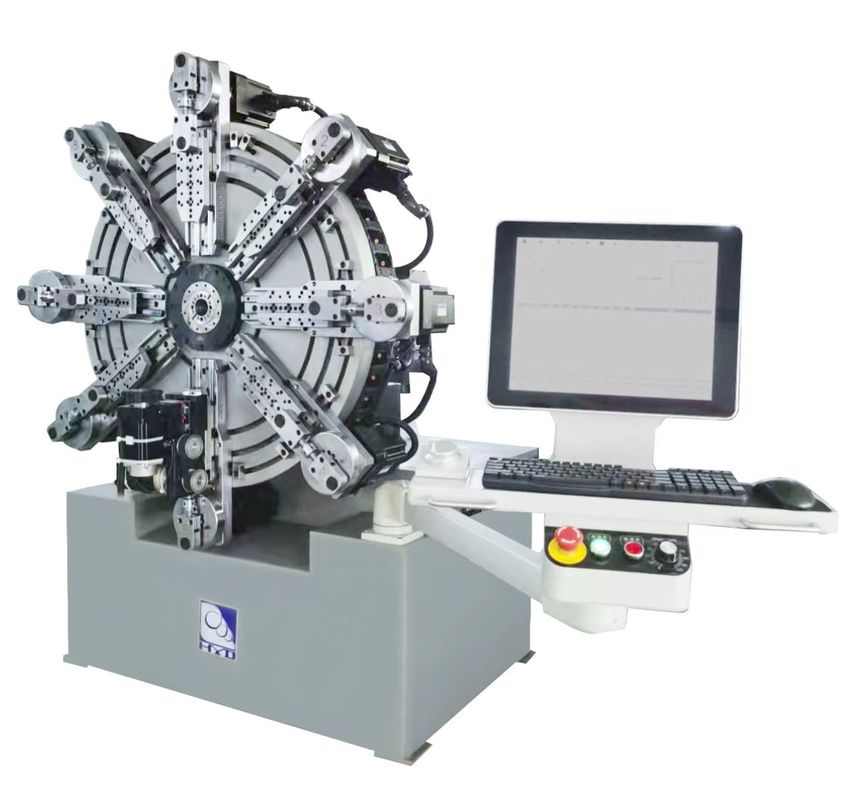

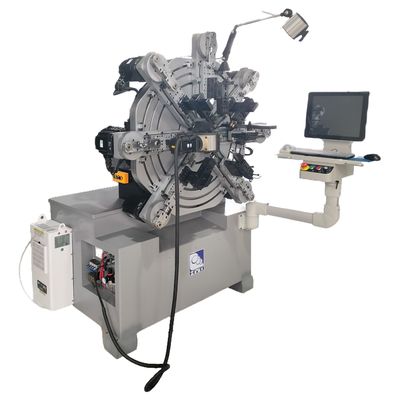

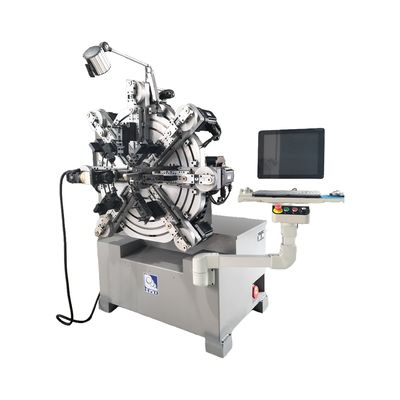

High Precision CNC Camless Computer Spring Machine HYD-40T-10A
Camless Computer Spring Machine
1. FEATURES AND APPLICATIONS:
★With the link rocker design, independent control of single-axis servo motor, easy to operate, shaped spring can be placed by
the angle of the tooling to save setup time and increase production efficiency.
★Using Taiwan roller guides to ensure the abrasive resistance and precision. The design of putting spinner on core rotary,it can be wire rotary
function, it will be easier to form some more difficult products.
★Taiwan control system, comparing with cam spring machine, cam-less type will be more efficient to produce battery conne-ctor, etc.
2. SPECIFICATION
| Model | HYD-40T-10A |
| Number of Axes | 10 Axes |
| Wire Diameter | 1.0-4.0mm |
| Wiire Feed Roller | 4 Pairs |
| Max Wire Feed Speed | 100m/min |
| Max Wire Feed Speed | ±0.15(Length) |
| Servo Motor Power | 21.5KW |
| Reducer | 10 Pcs |

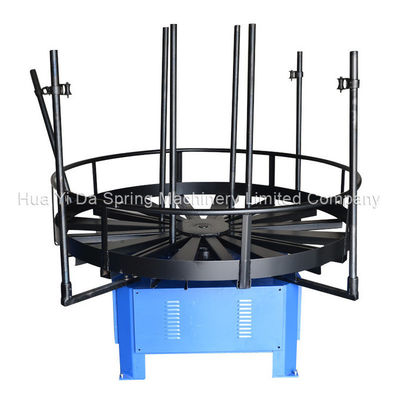

| Decoiler | 300KG |
| Voltage | 380V |
| Machine size | 1100*1400*2000mm |
| Machine Weight | 2500KG |
Hot Sales
FAQ
Q1: Can you send me the catalogue?
A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.
Q2: Do you accept OEM?
A2: We can produce any of your requested designs.
Q3: Can it be configured with something else?
A3: Yes, We can customize the machine according to your product requirements
Q4: Are you a factory?
A4: Sure. We are factory direct sales; welcome to visit our factory.
Q5: What information will be helpful in getting an accurate quotation from us?
A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc
Welcome to consult for more details
Contact Person: zoey
