Sanyo Motor 0.3-2.5mm Spring Making Machine 220V/380V/415V 50Hz

Sanyo Motor 0.3-2.5mm Spring Making Machine 220V/380V/415V 50Hz

Sanyo Motor 0.3-2.5mm Spring Making Machine 220V/380V/415V 50Hz
Sanyo Motor 0.3-2.5mm Spring Making Machine 220V/380V/415V 50Hz
Sanyo Motor 0.3-2.5mm Spring Making Machine 220V/380V/415V 50Hz
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-25T-10A(Max 16 Axes)
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 15 Days
Payment Terms: Negotiable,T/T,L/C
Supply Ability: 30 Sets One Month
Contact Now
Detailed Product Description
Wire Diameter: 0.3-2.5mm Total Axes: Ten Axes
Additional Axes: Can Be Customized Power Supply: 380V 50Hz
Servo Brand: Sanyo,Japan Advantage: Easy To Operate

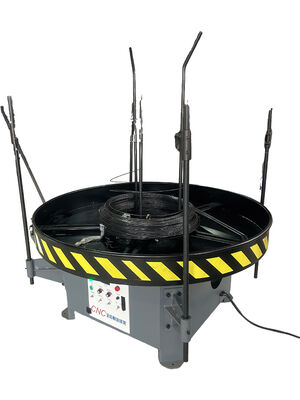

Decoiler Equipment: 100KG Applicable Industries: Manufacturing Plant
After-sales Service: Online Support, Field Installation, Commissioning And Training After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Highlight:

Sanyo Motor spring making machine 220V

,

CNC spring machine 0.3-2.5mm

,

Spring making machine 380V 50Hz

Sanyo Motor 0.3-2.5mm Spring Making Machine
Arcuchi Sanyo Motor Spring Making Machine for spring wire diameter up to 2.5mm, available in 220V/380V/415V 50Hz configurations.
Technical Specifications
Model HYD-25T-10A
Number of Axes 10 Axes
Wire Diameter 0.3-2.5mm
Lead Rail Distance of 80MM
Wire Feed Roller 2 pairs
Maximum Change ±0.03 (length)
Max Wire Feed Speed 70m/min
Control System Sanyo
Shortest Angel Length 4 Times Wire Diameter
Machine Weight 1300KG
Machine Dimension 1400*1400*1700mm
Product Images

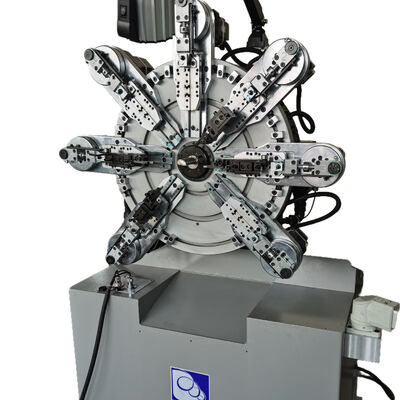

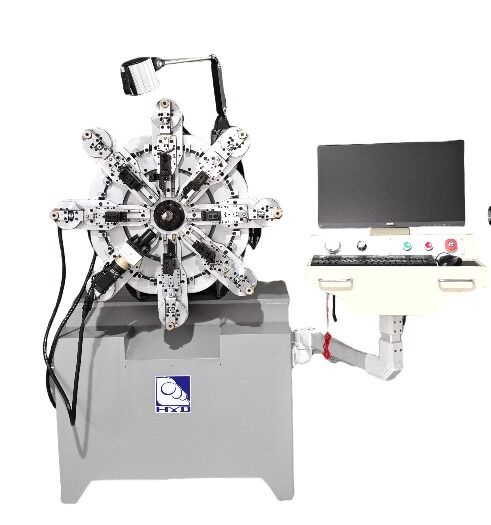

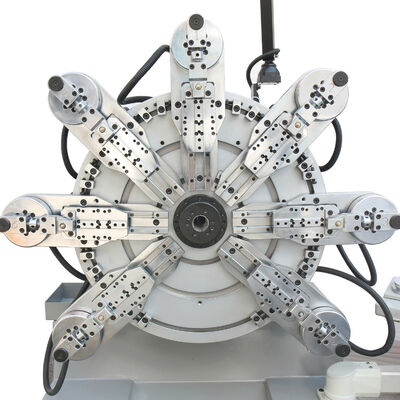

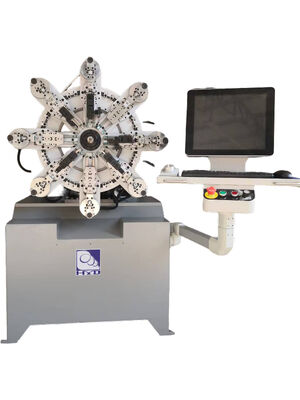

Sanyo Motor Spring Making Machine front view Sanyo Motor Spring Making Machine side view Sanyo Motor Spring Making Machine control panel
Spring Samples
Spring samples produced by the machine
Machine at Factory
Spring making machine in factory setting Spring making machine operational view
Service & Advantages
  • Powerful and precise wire feeding mechanism with stability and precision to 0.2mm
  • 8 servo drives installed in one-solid working panel for fast operation and minimal vibration
  • Japan Sanyo Denki servo motor for reliable performance
  • Sweden SKF top brand deep groove ball bearings in wire feeding mechanism
  • Taiwan computer operation system for user-friendly control
  • Panasonic frequency inverter for efficient power management
  • Japan OMRON relay for reliable electrical control
Additional Advantages
  • Premium components including Sweden SKF bearings and Japan Sanyo Denki servo motors ensure durability exceeding 8+ years
  • Powerful hydraulic pumps for wire feeding wheels provide superior performance over air pumps, especially for medium to large springs with wire sizes over 4mm
  • Comprehensive surface treatments including tempering, vacuum hardening, anodizing, and nickel plating for enhanced durability and wear resistance
Included Accessories
  • English user manual with parts list
  • 5 different sized tools and installation tools
  • Hopper, toolbox, and other essential accessories
