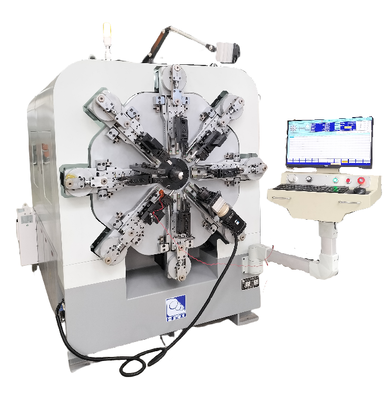

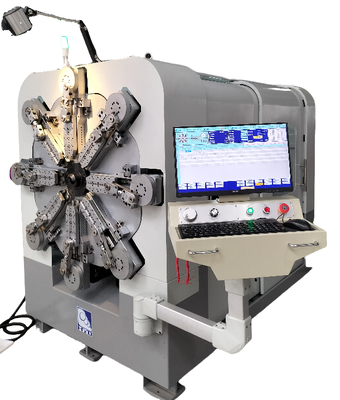

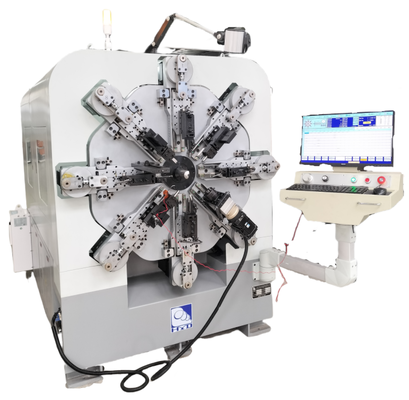

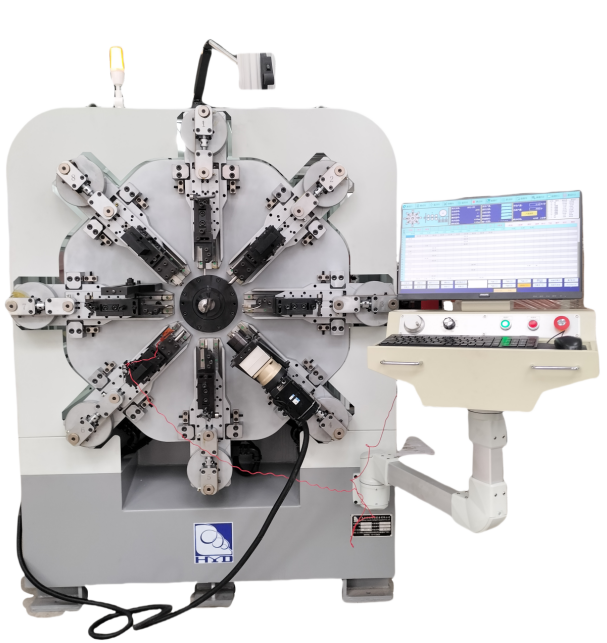

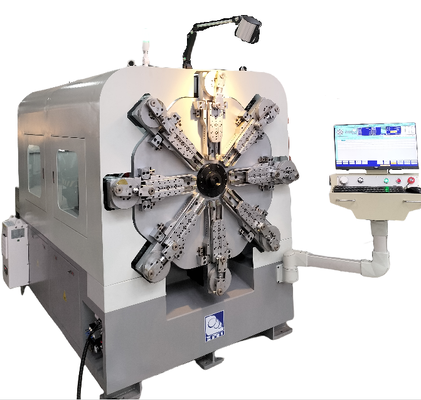

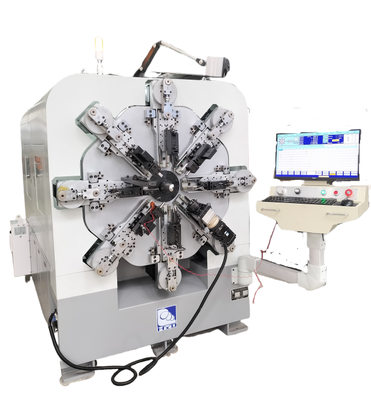

1.0-4.0mm Camless CNC Spring Making Machine 12 Axes Wire Forming Machine

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HYD
Certification:	CE
Model Number:	60T-12A

Payment & Shipping Terms:

Minimum Order Quantity:	1 sets
Price:	USD 65000-78200 / sets
Packaging Details:	plywood case
Delivery Time:	30 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20 sets / month

Contact Now

Detailed Product Description

Motor:	Sanyo Denki	Axes:	12-16
Guide Rail Stroke:	200mm	Feeding Wheel Groups:	4
Tools:	Wearable	Inside Height:	2100mmm
Lead Rail Stroke:	200mm	Wire Diameter:	2~6mm
Max Error:	0.2mm
Highlight:	1.0-4.0mm CNC spring making machine , 12 axes wire forming machine , camless CNC spring machine

12 Axes Camless CNC Spring Making Machine

Machine Description

This 12-axis camless CNC spring making machine features advanced guide rail technology for enhanced precision, operational stability, and reduced maintenance costs. The camless design enables faster testing and commissioning compared to traditional cam spring machines.

Key Features

Connecting rod camless design with single-axis servo motor independent control for easy operation
Taiwan roller guide rail system for superior wear resistance and long-term precision maintenance
Servo shear design for direct cutting after forming, reducing impact force on mandrel
Taiwan control system ensuring optimal machine-computer synchronization
Separated wire transfer motor reducing wire feed box load and increasing transfer accuracy
Multi-function wire rotary capability for complex extension, torsion, and special shape springs
Built-in air conditioning system for temperature control and servo motor protection
Reducers working with servo motors for extended lifespan and reduced heat generation

Technical Specifications

Model	HYD-60T-12A
Axis Count	12 axis
Wire Size Range	Low carbon steel: 3-8mm High-carbon steel: 2-6mm
Lead Rail Stroke	200mm
Wire Feeding Wheel Groups	4
Max Feeding Speed	80m/min
Maximum Error	±0.1mm (length)
Control System + Decoiler	1 set
Servo Motor Power	51.2KW
Reducer	11pcs
Minimum Length of Angle	4 times wire diameter
Machine Size	4200×2100×2350mm
Machine Weight	6000kg

Sample Production

Frequently Asked Questions

How can you help me to use the machine?

We provide comprehensive machine commissioning, sample production, and video documentation. Free one-week training is available at our factory, with optional paid field training. Ongoing online and video technical support is also provided.

How can I know that you supply cost-effective solutions?

We recommend machines based on your specific spring requirements and budget, providing the most suitable production plans for your reference.

Spring Machinery Development

Springs are essential components used across all sectors of the national economy. The spring industry has evolved from primitive hand-made production toward full automation. China's spring machine industry has developed rapidly, transitioning from importing to exporting computer spring machines, demonstrating significant advancements in research, development, and manufacturing capabilities.
