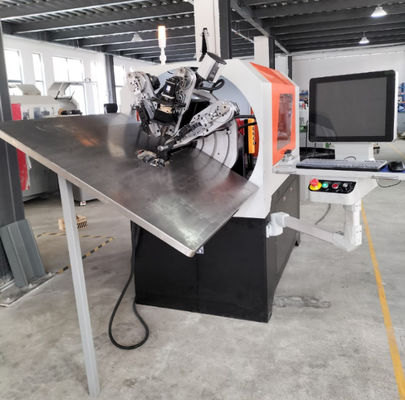

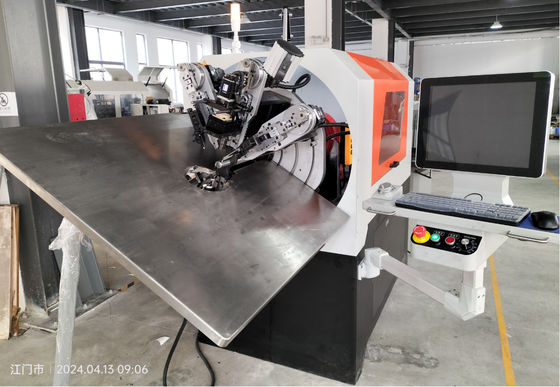

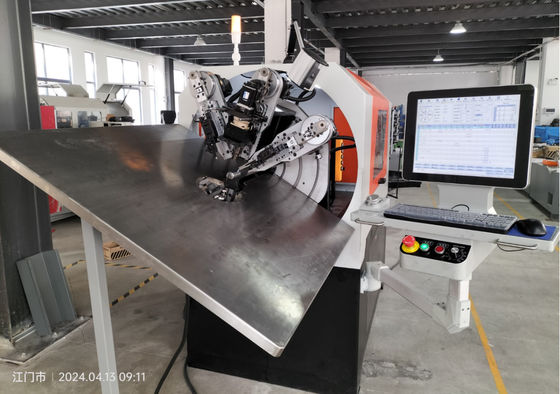

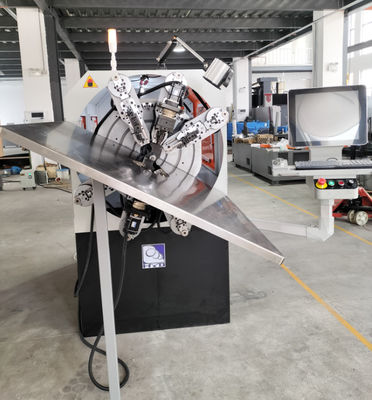

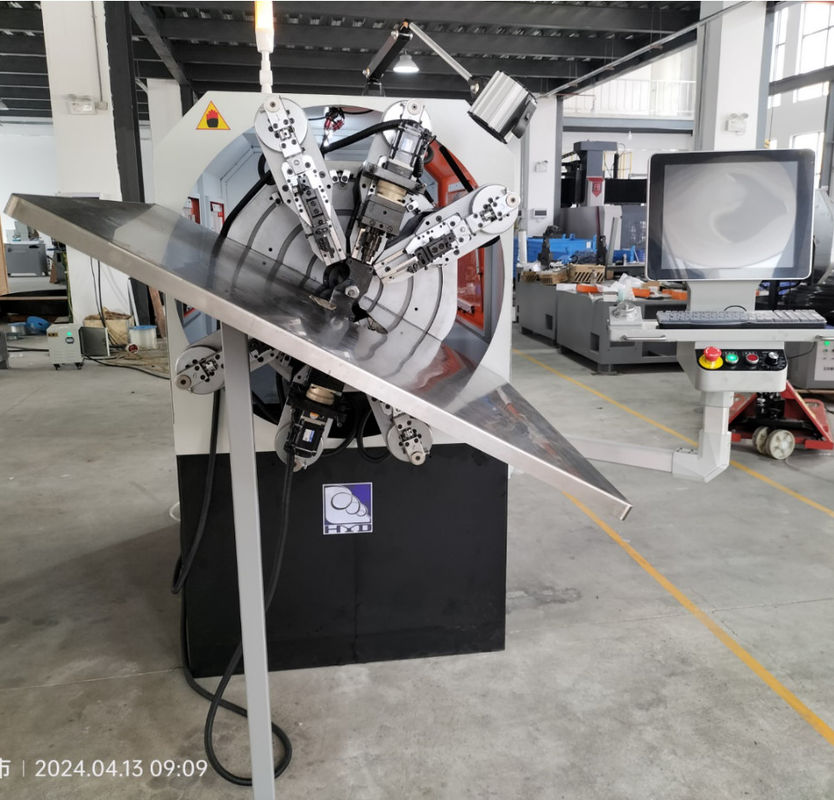

Multifunction CNC Spring Making Machine with Servo Motor
Advanced camless spring machine for wire diameters 0.3-2.5mm, designed for modern manufacturing efficiency and precision.
Machine Overview
This innovative camless spring machine addresses rising labor costs and production demands with servo motor technology, reducing setup time by over 50% compared to traditional cam machines while maintaining exceptional precision and operational stability.
Key Features & Advantages
- Retains all advantages of traditional 8-jaw cam machines
- Enhanced capability for producing complex and difficult springs with greater ease and precision
- 8 arms feature double guide rails for reduced wear, easy maintenance, and sustained accuracy
- Capable of long-term processing of 2.5mm high carbon steel wire
- Low heat generation and minimal loss with composite tooling
- Intelligent module with automatic detection and alarm system
- Windows-based operation with Chinese/English interface for easy learning and use
- Ideal for high-precision springs in automotive, motorcycle, bicycle, and fitness equipment applications
- Versatile production of special-shaped springs, compression springs, tension springs, torsion springs, double torsion springs, volute springs, flat wire springs, and various wire forming products
Technical Specifications
| Model |
HYD-25T-10A Twelve Axes Cam-Less CNC Spring Making Machine |
| Axes |
11 axes |
| Lead Rail |
Distance of run 80mm |
| Wire Feed Roller |
2 pairs |
| Max Wire Feed Speed |
110m/min |
| Max Tolerance |
±0.03 (length) |
| Wire Diameter |
0.3-2.5mm |
| Machine Weight |
1300KG |
| Machine Dimensions |
2400mm × 1350mm × 1900mm |
| Servo Motor |
Sanyo |
| Control System |
1 Set |
Packing
Wooden case packaging for secure shipping and handling.
Spring Industry Development
The growing equipment demands of spring manufacturers have accelerated domestic spring machine industry development, narrowing the gap with international standards. Continuous innovation focuses on several key areas:
Efficiency and Forming Capability Enhancement
As precision and shape requirements increase across industries, spring machines must improve processing accuracy and forming capabilities while boosting production efficiency to meet evolving manufacturer needs.
Intelligent System Operation
Advanced computer operating systems serve as command centers, with expandable functions and compatible data ports enabling multi-functional capabilities. High-definition video monitoring allows real-time parameter adjustments during winding processes for optimal, stable, and safe spring formation.
Simplified Operation
Traditional spring machine operation required experienced technicians, creating high skill thresholds. Modern systems feature intuitive editing functions for adjusting spring parameters like effective turns, free length, and wire feeding speed, with color-coded displays replacing manual corrections.
Advanced Detection Capabilities
Enhanced detection functions through expandable operating systems include multi-axis servo control, multiple data port compatibility, high-resolution image detection, intelligent calibration, and real-time monitoring to ensure product accuracy and quality control.
Certifications
CE Certified
