| Place of Origin: | Dongguan,China |
| Brand Name: | HYD |
| Certification: | CE / IS09001 |
| Model Number: | HYD-20T-3A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Seaworthy Plywood Case |
| Delivery Time: | 15 Days |
| Payment Terms: | Negotiable |
| Wire Diameter: | 0.2-2.3mm | Axis: | Three Axes |
|---|---|---|---|
| Additional Axes: | Spinner/Machine Hand | Power Supply: | 380V 50Hz |
| Servo Motor: | Japan | Manufacturing Period: | 15 Days |
| Control System: | Taiwan | FOB Port: | Shenzhen,China |
| High Light: | cnc coiling machine,cnc spring making machine,Multi Functional CNC Spring Machine |
||

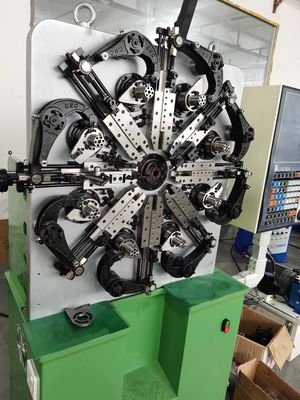

HYD Multi-functional CNC Spring Machine & Wire Forming Machine 0.2-2.3mm
| Three-axes multi-functional spring machine | |
| Model | HYD-20T-3A |
| Wire size | 0.2-2.3mm |
| Max feeding speed | 141m/min |
| X-axis motor output | 2.7KW |
| Y-axis motor output | 2.7KW |
| Z-axis motor output | 1.0KW |
| Machine size | 1400×900×1600mm |
| Voltage | 380V |
| Weight | 700kg |
Function and characteristics
1.This machine is completely automactic.
2.The computer-controlled system is imported from Taiwan and servo motor imported from Sanyo company.
3.This machine is to make many kind of springs like torsion spring,pagoda-shaped compression spring, rectangle spring,swirl spring,special-shaped spring and etc.
4.This machine can add some special tools accrding to customer's requirement.
About US
HYD was established in 2000,which is more than fifteen years experience now,the owner of this company is
with more than twenty-five years experience.Now HYD brand is becoming one of the most popolar spring
machine manufactuerer in Chinese spring machine market.HYD has many customers distributing in
India,Vietnam,Philippines,Egypt,Malaysia,Poland,Slovenia,Slovakia,Italy,Russia,Turkey.
Spring Sample
