Coming together is a beginning; keeping together is progress; working together is success.
|Place of Origin:||Dongguan,China|
|Certification:||CE / IS09001|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Standard Seaworthy Plywood Case|
|Delivery Time:||30 Days|
|Wire Diameter:||Low-carbon Steel 3-8mm High-carbon Steel 2-6mm||Axis:||Twelve Axes|
|Additional Tools:||Servo Scissors||Servo Motor:||Japan Brand|
|Payment Term:||T/T L/C||Training:||Provided|
|Port:||Shenzhen,China||Guarantee Period:||One Year|

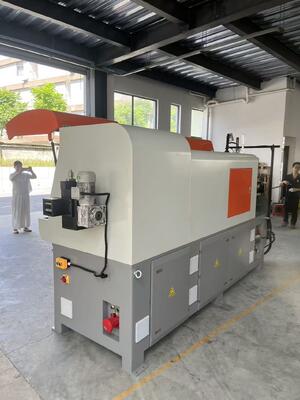

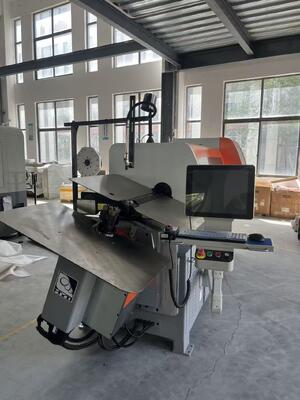

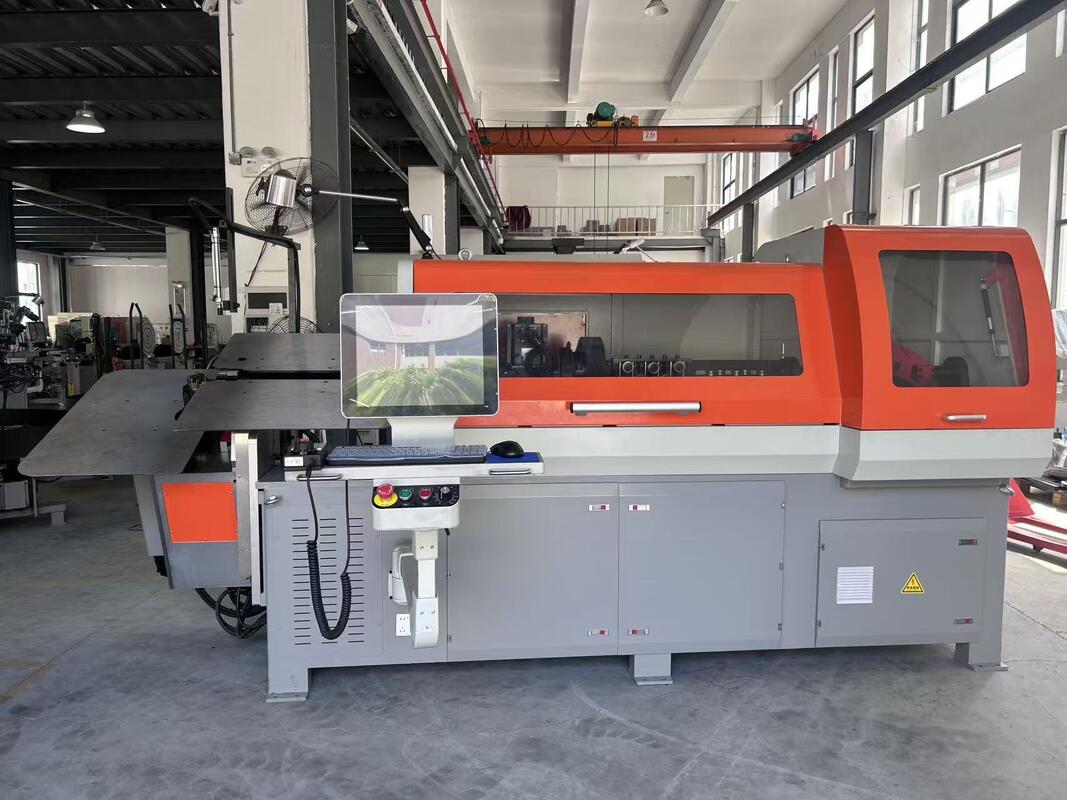

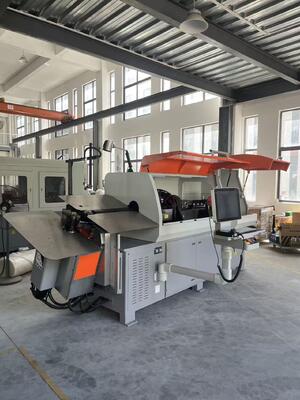

High Efficient CNC Spring Machine with Twelve Axes for low-carbon Steel 3-8mm
|Twelve Axes multi-functional spring machine|
|Axis Count||12 axis|
|Wire Size Range||low carbon steel:3-8mm|
|Lead rail||distance of 130mm|
|Wire feeding count||4 pairs|
|Max Feeding speed||80m/min|
|Control system+decoiler||1 set|
|Servo motor power||49.7KW|
|Minimum length of angel||4 times wire diameter|
1. Using the link rocker design, independent single-axis servo motor control, simple and convenient operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase
2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track Design, you can adjust the left and right, more flexible adjustment.
3. Taiwan helical gear reducer, the intensity more secure.
4. Taiwan control system, more effectively ensure the mechanical and computer synchronization.
5. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.
• Independent R&D ability
• 15 years experience in spring machine industry
• Quick and patient reply for Bfore&After sale service
• Tranning in factory is available,spring set-up in machine for shipment
Machine Purchasing Process
• Customer provide HYD spring drawing
• HYD provide technical information for machine and spring making information
• Customer confirm machine and order,then arrange 30% deposit as PO confirmation
• HYD make spring set-up in machine after manufacturing period
• HYD shipped machine after customer’s spring confirmation and receive balance payment.
• Machine following for transposition and all after-sales service
1. Free training is provided in HYD production base.Pictures and video of the machine operation will be sent for confirmation before shipment.
2 .The professional and patient consulting service will help you find the suitable solution.
3. Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
4. HYD provide technical support by email and phone,technicians will be available at your side if necessary.
5. Spare parts will be freely supplied during the guarantee period(one year), original cost after this period.
1. Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc
2. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
3. Q: What is the payment term
A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.
4 Q: What is the delivery time?
A: Normally the manufacturing time of the machine is 30 days after receiving deposit.But it depends on machine model.Some machine production can be finished within 15 days.
5. Q: What is the guarantee period of the machine?
A: The guarantee period is one year from the date of B/L.
6.How to contact HYD?
A:Cel/WhatsApp:+86 14778279155 Skype:helen20160701
