Place of Origin: | Dongguan,China |
Brand Name: | HYD |
Certification: | CE / IS09001 |
Model Number: | HYD-20T-10A(changed based on 3A) |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Seaworthy Plywood Case |
Delivery Time: | 15 Days |
Payment Terms: | Negotiable |
Supply Ability: | 10000 set per year |
Wire Diameter: | 0.2-2.3mm | Axis: | Ten Axes |
---|---|---|---|
Additional Axes: | Machine Hand | Servo Motor: | Japan Brand |
Manufacturing Period: | 30 Days | Control System: | Taiwan |
Training: | Available | FOB Port: | Shenzhen,China Or Required Port |
Highlight: | automatic spring making machine,spring wire machine,Ten Axes Computerized Tension Spring Machine |

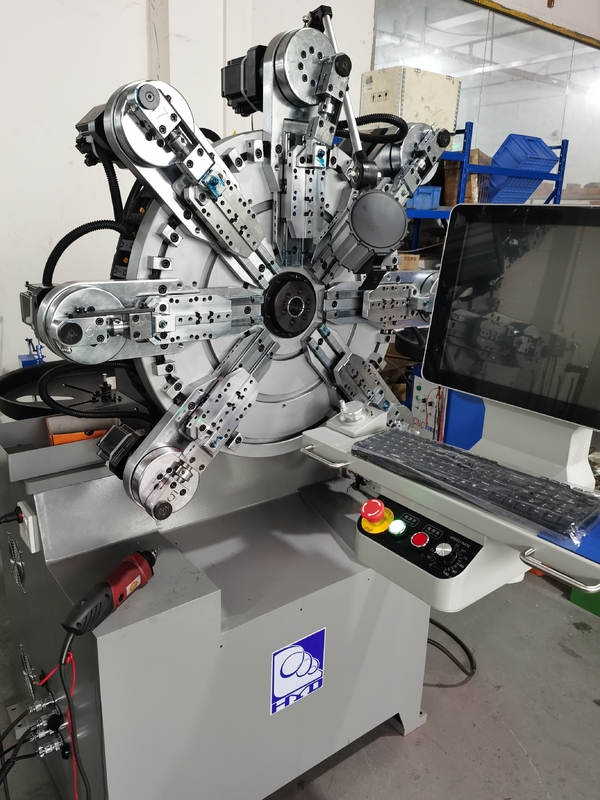

Computerized Tension with Ten Axes Making a Wire Bending Machine using a Spring Former
1. FEATURES AND APPLICATIONS:
Based on 3A, the machine is a new design.
*Processing wire diameter ranges from 0.2 to 2.3 mm.
The maximum feeding speed is 141 meters per minute.
2. SPECIFICATION:
Three-axes multi-functional spring machine | |
Model | HYD-20T-10A (changed based on 3A) |
Wire size | 0.2-2.3mm |
Max feeding speed | 141m/min |
Direct storage programs | 1000 |
X-axis motor output | 2.7KW |
Y-axis motor output | 2.7KW |
Z-axis motor output | 1.0KW |
Spinner | 0.4KW |
Cutter | 1 KW |
Angle rotor | 1 KW |
Machine size | 1400×900×1600mm |
Voltage | 380V |
Weight | 700kg |
Why us:
• Capacity for autonomous R&D
• fifteen years of experience in the spring machine sector
• Prompt and understanding response for pre- and post-sale support
• Factory training is given, and the machine is spring-loaded for shipping.
Service Support:
The best possible service along with long-lasting machines would be offered.
You will receive a complimentary solution for your production. The employees at HYD have a wealth of knowledge, and they will always offer the best answer.
We cordially invite you to visit our organization for training or inspection.
After-sale service:
free installation and training service in the HYD company.
Always provide customers with an efficient online response.
Can you provide technical support?
HYD provides free technical support, installation, and training for machines.
How do you support a machine when it goes wrong?
Talk with a HYD specialist online by telephone, Skype, WhatsApp, etc. and give a high-efficient solution for the incorrect operation or change the consumable parts.
HYD specialist will teach you how to change the parts during the training period.
