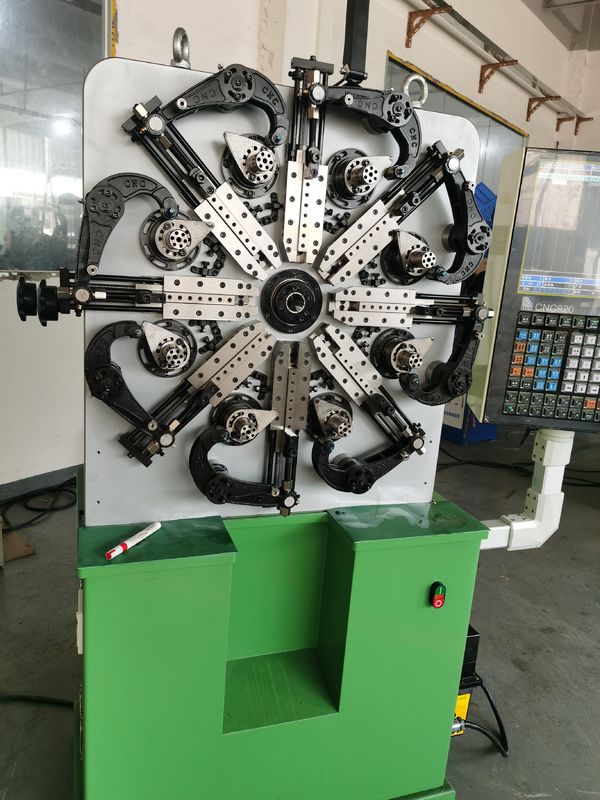

0.2 - 2.3mm Wire Diameter CNC Spring Machine High Precision 3-4 Axes Systems

0.2 - 2.3mm Wire Diameter CNC Spring Machine High Precision 3-4 Axes Systems

0.2 - 2.3mm Wire Diameter CNC Spring Machine High Precision 3-4 Axes Systems
0.2 - 2.3mm Wire Diameter CNC Spring Machine High Precision 3-4 Axes Systems
0.2 - 2.3mm Wire Diameter CNC Spring Machine High Precision 3-4 Axes Systems
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-20T-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 15 Days
Payment Terms: Negotiable
Supply Ability: 20 Pcs Per Month
Contact Now
Detailed Product Description
Wire Diameter: 0.2-2.3mm Axis: Three To Four Axes
Additional Axes: Spinner/Machine Hand Power Supply: 380V 50Hz
Servo Motor: Japan Manufacturing Period: 15 Days
Control System: Taiwan FOB Port: Shenzhen,China
Highlight:

automatic spring machine

,

cnc spring making machine

,

2.3mm Wire Diameter CNC Spring Machine

Three to Four Axes Versatile Spring Forming Machine — Wire Diameter 0.2–2.3mm

The HYD-20T series is a fully automatic, multi-functional CNC spring machine available in 3-axis and 4-axis configurations. It is engineered for high-precision production of tension springs, torsion springs, pagoda-shaped springs, and a wide variety of wire forms.

Technical Specifications
Model HYD-20T-3A / 4A
Wire Size 0.2 – 2.3 mm
Max Feeding Speed 141 m/min
Direct Storage Programs 1000
X-Axis Motor Output 2.7 KW
Y-Axis Motor Output 2.7 KW
Z-Axis Motor Output 1.0 KW
Machine Size 1400 × 900 × 1600 mm
Voltage 380V
Weight 700 kg
Machine Functions
  1. This machine is completely automatic and can produce various types of springs, including tension springs, torsion springs, pagoda-shaped springs, and many kinds of wire forms.
  2. Optional add-ons such as machine hand, servo scissors, and spinner are available for additional purchase. Each standard machine set includes a decoiler and cutting tools.
What HYD Can Provide
Can you provide technical support?

HYD provides free technical support, installation, and training for the machine.

How do you support when the machine goes wrong?

Talk with an HYD specialist online via telephone, Skype, WhatsApp, or other channels to receive a high-efficiency solution for incorrect operation or consumable part replacement.

HYD specialists will teach you how to change the parts during the training period.

Machine in HYD

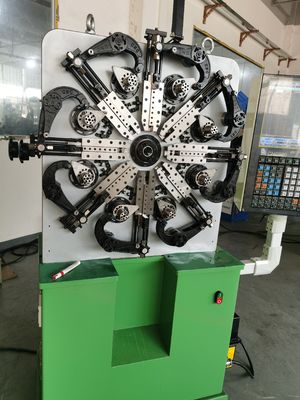

HYD-20T CNC spring forming machine with decoiler and control panel in the HYD factory
