Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System

Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System

Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-340
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 30 Days
Payment Terms: Negotiable,T/T
Supply Ability: 30 units per year
Contact Now
Detailed Product Description
Diameter: 1.0-4.0mm Outer Diameter Range: ≤65.00mm
Yield Per Minute: ≤400pcs Wire Feeding Motor: 5.5kw
Machine Size: 1200*850*1650mm Machine Weight: 1200kg
Highlight:

automatic spring coiling machine

,

wire spring making machine

Mechanical Metal Compression Spring Machine, Three Axes CNC Spring Former
Product Overview

Computerized CNC Compression Spring Machine with Three Axes - A precision-engineered solution for high-quality spring manufacturing with advanced servo-motion control systems.

Model HYD-340
Diameter Range 1.0-4.0mm
Maximum Wire Length Unlimited
Outer Diameter Setting Range ≤65.00mm
Yield per Minute ≤400pcs
Wire Feeding Servo Motor 5.5kw
Outside Diameter Servo 5.5kw
Pitch Servo 1.0kw
Machine Size 1200*850*1650mm
Machine Weight 1200kg
Key Features & Advantages
  • Precision CNC controlled servo-motion system combined with mechanization conveniences
  • Suitable for various kinds of spring products through simplified setup and programming procedures
  • Horizontal wire feeding system installed at the back of the machine
  • Dual wire feeding wheel groups for enhanced performance and reliability
Machine Gallery

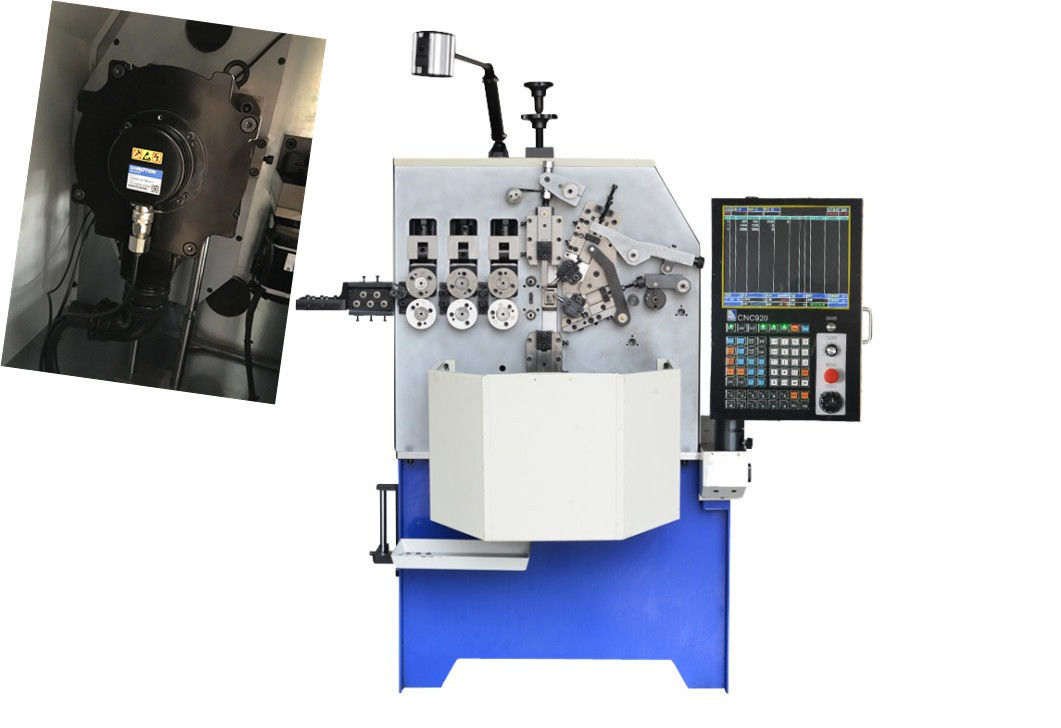

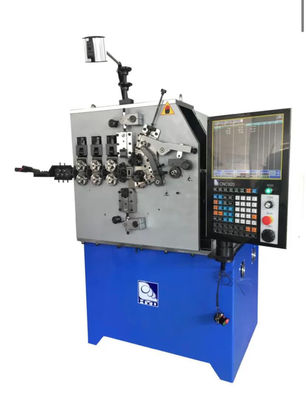

HYD-340 CNC Spring Machine front view
CNC Spring Machine Front View
CNC Spring Machine control panel and interface
Machine Control Panel
Spring machine wire feeding mechanism
Wire Feeding Mechanism
CNC spring coiling process demonstration
Spring Coiling Process
Finished compression springs produced by machine
Finished Spring Products
