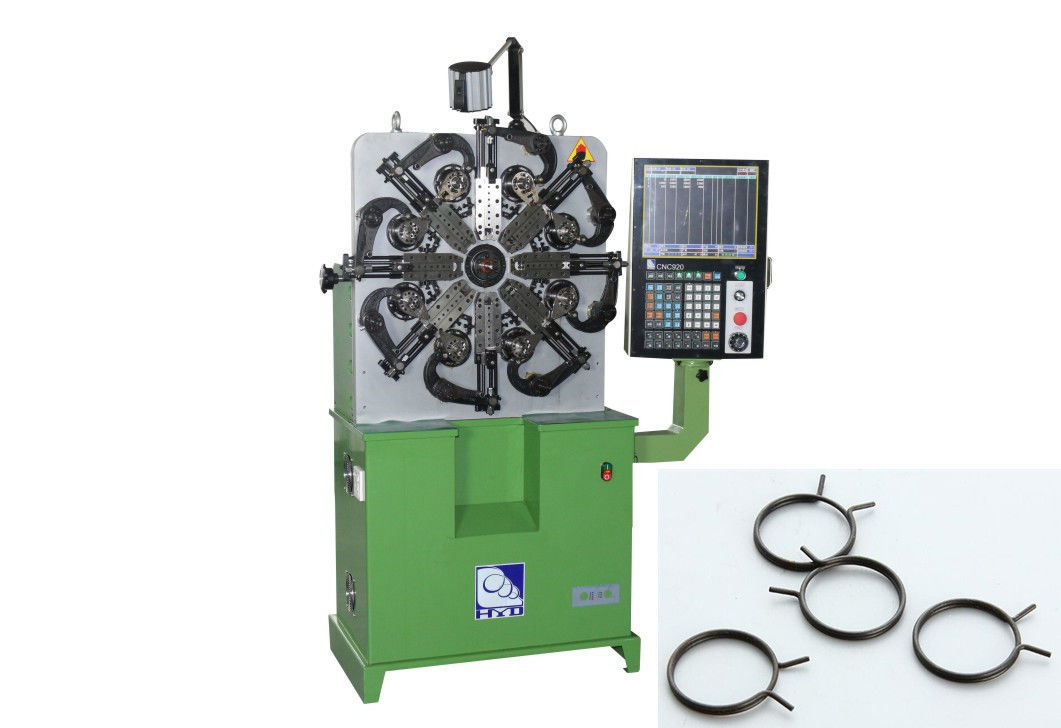

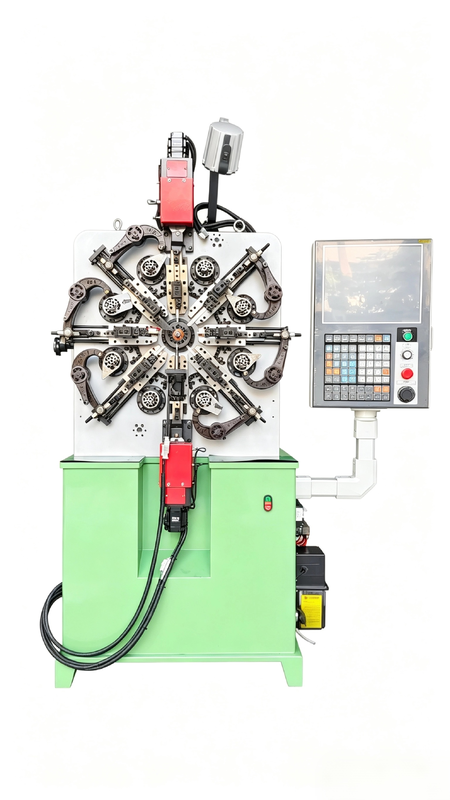

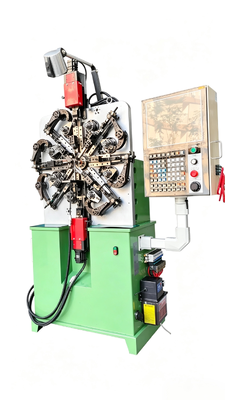

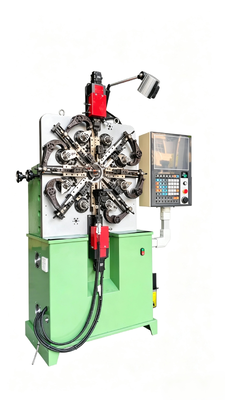

141m / Min Feeding Speed CNC Spring Former With Front Rotation Function

141m / Min Feeding Speed CNC Spring Former With Front Rotation Function

141m / Min Feeding Speed CNC Spring Former With Front Rotation Function
141m / Min Feeding Speed CNC Spring Former With Front Rotation Function
141m / Min Feeding Speed CNC Spring Former With Front Rotation Function
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-20T-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 15 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20 Pcs Per Month
Contact Now
Detailed Product Description
Wire Diameter: 0.2-2.3mm Axis: Five Axes
Additional Axes: Spinner/Machine Hand Manufacturing Period: 15 Days
Highlight:

cnc wire bender

,

wire bending equipment

Product Overview

This CNC wire bending and spring forming machine is equipped with a front rotation function, delivering high-precision, high-speed production for a wide range of spring and wire-forming applications. With a maximum feeding speed of 141 m/min, it is engineered for efficiency and consistent output in demanding manufacturing environments.

Key Features
  • Windows-based screen operation for intuitive control and monitoring.
  • Standard configuration includes rotary wire, rotary quill, spinner, and 6 forming blades.
  • Space adjustment supported by two flexible methods: cam inclined knife and shaft pushing.
  • Spring outside diameter can be easily adjusted through program settings, with the outside diameter axis operating independently.
Technical Specifications
Wire Size 0.2–2.3 mm
Max Feeding Speed 141 m/min
Direct Storage Programs 1000
X-Axis Motor Output 2.7 KW
Y-Axis Motor Output 2.7 KW
Z-Axis Motor Output 1.0 KW
Machine Size 1400 × 900 × 1600 mm
Voltage 380V
Weight 700 kg
Product Image

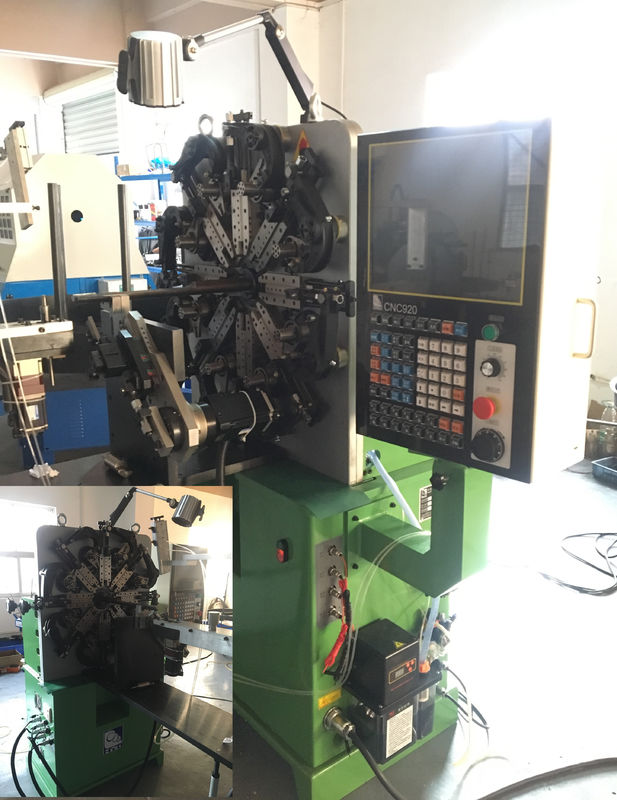

CNC spring forming machine with front rotation function, front view showing control panel and forming area
Packaging
CNC spring forming machine securely packed in wooden crate for shipping

Tag:

cnc wire bender,

cnc bending machine,

wire bending equipment
