Hard Wire 4.0 Mm Wire Bending Machine , Automatic Spring Coiling Machine

Hard Wire 4.0 Mm Wire Bending Machine , Automatic Spring Coiling Machine

Hard Wire 4.0 Mm Wire Bending Machine , Automatic Spring Coiling Machine
Hard Wire 4.0 Mm Wire Bending Machine , Automatic Spring Coiling Machine
Hard Wire 4.0 Mm Wire Bending Machine , Automatic Spring Coiling Machine
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-40T-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 15 Days
Payment Terms: Negotiable
Supply Ability: L/C, D/A, D/P, T/T, Western Union,
Contact Now
Detailed Product Description
Axis: Three Axes Optional Tools: Spinner/Servo Scissors
Sample: Provided Port: Shenzhen,China
Highlight:

cnc wire bender

,

cnc bending machine

Hard Wire 4.0 mm Wire Bending Machine & Cam Spring Machine

This machine is suitable for making various compression springs, extension springs, single (double) torsion springs, tower-shaped compression springs, flat wire springs, and any kind of wire forming.

The machine can be configured with 4 axes: the Cam axis, Feeding axis, Quill Rotary axis, and the Spinner axis (optional).

It is suitable for making various kinds of springs and wire forms through a simplified setup and programming procedure.

Technical Specifications
Diameter 0.8 ~ 4.2 mm
Max OD 60 mm
Wire Feeding Speed 0 ~ 110 m/min
Transmission Speed (Cam) 0 ~ 60 RPM
Wire Feed Servo Motor 5.5 KW
Cam Servo Motor 5.5 KW
Rotary Servo Motors 1.0 KW
Machine Size 1600 × 1300 × 1900 mm
Machine Weight 1800 kg
Machine Images

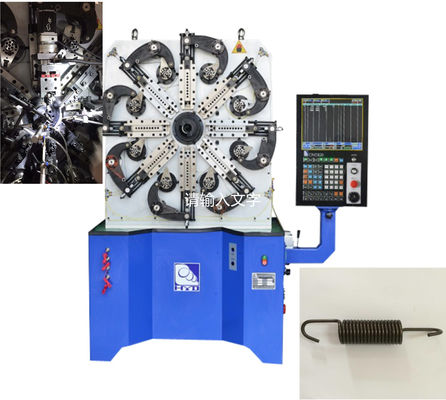

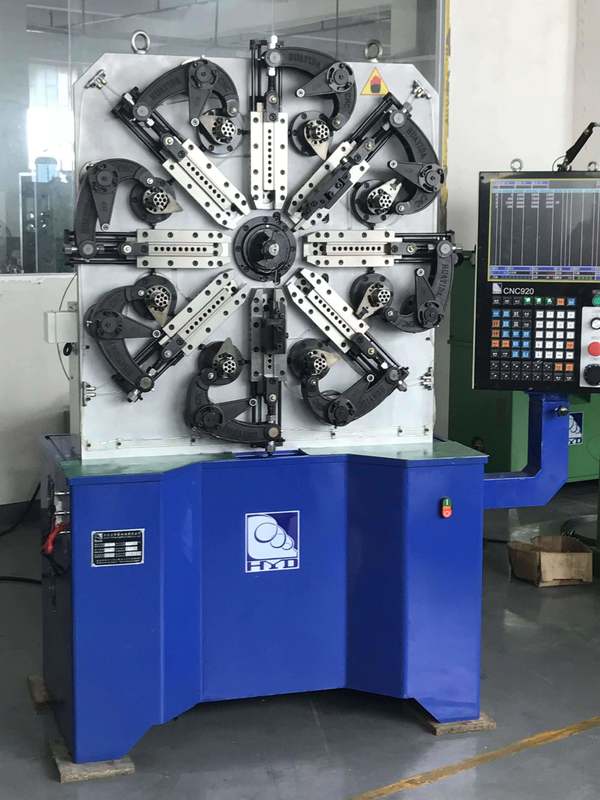

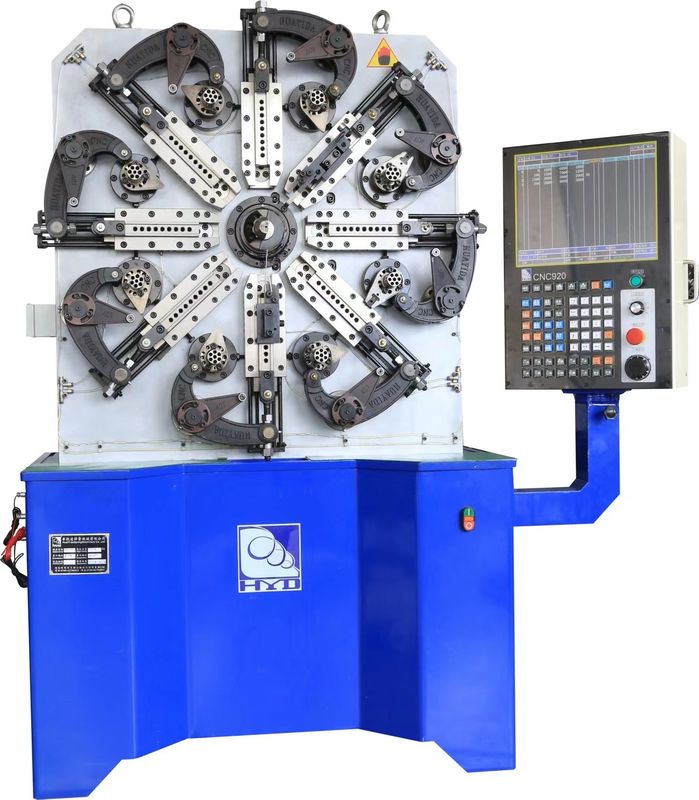

Hard wire 4.0 mm wire bending machine front view showing cam spring coiling mechanism
Automatic spring coiling machine side view displaying servo motor and feeding system
CNC cam spring machine control panel and wire forming tooling area
Sample Springs
Various sample springs produced by the wire bending machine including compression, extension, and torsion springs
Machine Purchasing Process
  1. Customer provides HYD spring drawing.
  2. HYD provides technical information for the machine and spring making information.
  3. Customer confirms machine and order, then arranges 30% deposit as PO confirmation.
  4. HYD makes spring set-up in machine after manufacturing period.
  5. HYD ships machine after customer's spring confirmation and receipt of balance payment.
  6. Machine following for transposition and all after-sales service.
