High Speed CNC Spring Manufacturing Machine Cam Coil Spring Making Systems

High Speed CNC Spring Manufacturing Machine Cam Coil Spring Making Systems

High Speed CNC Spring Manufacturing Machine Cam Coil Spring Making Systems
High Speed CNC Spring Manufacturing Machine Cam Coil Spring Making Systems
High Speed CNC Spring Manufacturing Machine Cam Coil Spring Making Systems
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-40T-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 25 Days
Payment Terms: L/C,D/A,D/P,Western Union,T/T
Supply Ability: L/C, D/A, D/P, T/T, Western Union,
Contact Now
Detailed Product Description
Axis: Three Axes Optional Tools: Spinner/Servo Scissors/Machine Hand
Sample: Provided Nearest Port: Shenzhen,China
Machine Weight: 1800KG Decoiler: 200KG
System: English/Chinese Machine Painting: Can Do As Per Requirement
Highlight:

automatic spring machine

,

cnc spring making machine

High Speed CNC Spring Manufacturing Machine Cam Coil Spring Making Systems
Machine Overview
High Speed CNC Cam Spring Making Machine for wire size range 0.8 - 4.2mm. This advanced system features high-precision servo motors and CNC control for accurate sizing and complex spring production.
  • Equipped with high-precision servo motors and CNC control system for accurate dimensions and complex spring production
  • Optional spinner axis and servo scissors capability for enhanced functionality
  • Available in 4-axis configuration: Cam axis, Feeding axis, Quill Rotary axis, and optional Spinner axis
  • HYD-40T-3A model includes three axes with optional tools; HYD-40T-12A includes wire rotation function
  • Versatile application for compression springs, extension springs, single/double torsion springs, tower-shaped compression springs, flat wire springs, and various wire forming applications
Technical Specifications
Wire Diameter Range 0.8~4.2mm
Maximum Outer Diameter 60mm
Wire Feeding Speed 0~110m/min
Transmission Speed Cam 0~60RPM
Wire Feed Servo Motor 5.5KW
Cam Servo Motor 5.5KW
Rotary Servo Motors 1.0KW
Machine Dimensions 1600×1300×1900mm
Machine Weight 1800kg
Machine Images

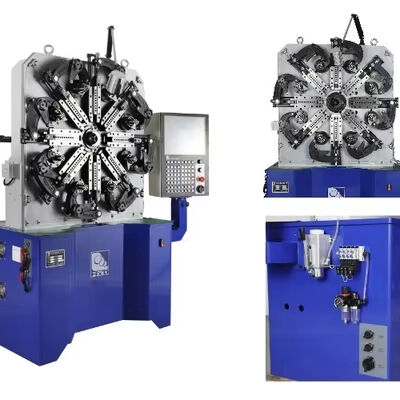

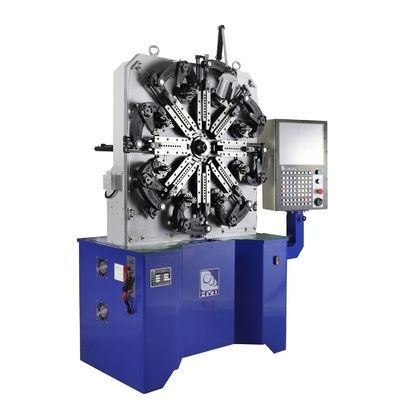

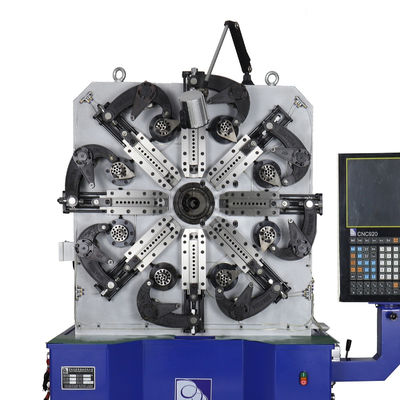

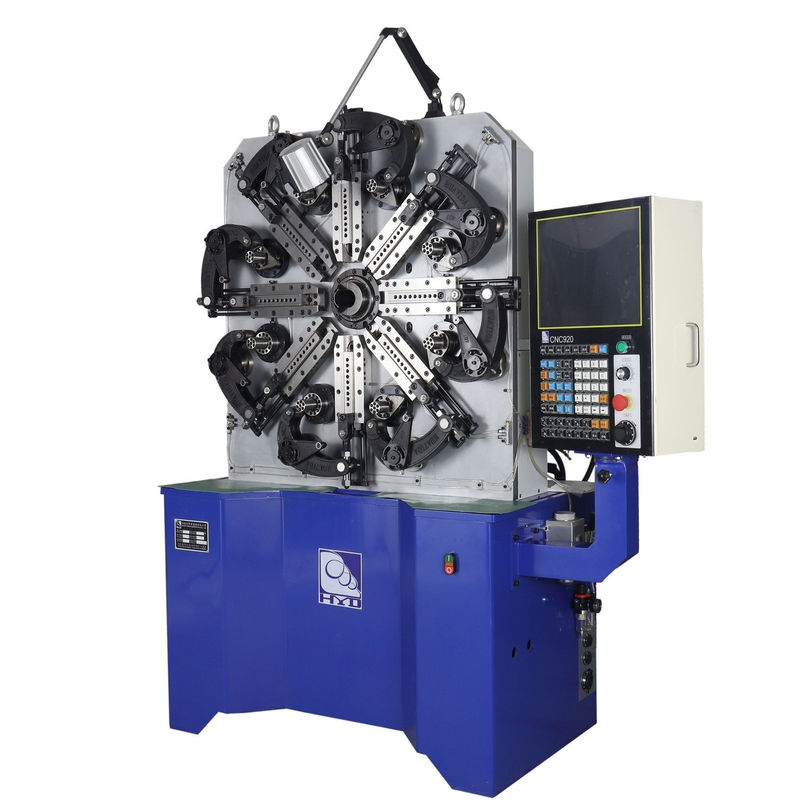

High Speed CNC Spring Manufacturing Machine front view CNC Spring Machine control panel and workspace Spring manufacturing machine side view Close-up of spring production mechanism
Sample Products
Sample springs produced by CNC machine Various spring types and configurations
Machine Purchasing Process
  1. Customer provides HYD spring drawing specifications
  2. HYD provides technical information for machine and spring manufacturing details
  3. Customer confirms machine selection and places order with 30% deposit for PO confirmation
  4. HYD performs spring setup in machine after manufacturing period
  5. HYD ships machine after customer's spring confirmation and receipt of balance payment
  6. Machine installation support and comprehensive after-sales service provided
