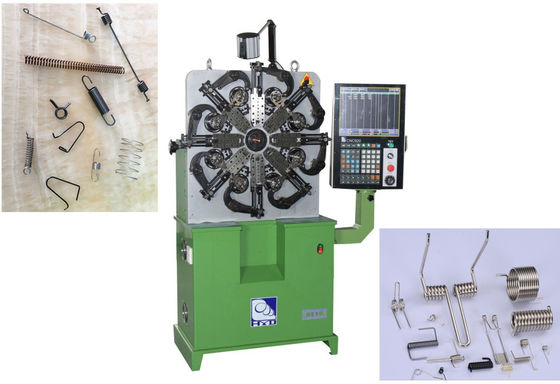

Multi Functional Automatic CNC Spring Machine Three Axes With Servo Motor System

Multi Functional Automatic CNC Spring Machine Three Axes With Servo Motor System

Multi Functional Automatic CNC Spring Machine Three Axes With Servo Motor System
Multi Functional Automatic CNC Spring Machine Three Axes With Servo Motor System
Multi Functional Automatic CNC Spring Machine Three Axes With Servo Motor System
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-20T-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 sets one week
Contact Now
Detailed Product Description
Wire Diameter: 0.2-2.3mm Axis: Three To Four Axes
Power Supply: 380V 50Hz CNC System: Automatic
Decoiler: 100KG Cutting Tool: Standard
Additional Tool: Spinner Wire Rotary: Additional Added
Highlight:

cnc coiling machine

,

automatic spring machine



Multi Functional Automatic CNC Spring Machine Three Axes With Servo Motor System



Product Description
1. The machine adopts computer control system imported from Taiwan and servo motor imported from Japan.

2. The four axis of the machine are cam axis, wire feeding axis, rotary quill axis, and spinner axis(optional accessory). The four axis can be operated synchronously.

3. The position of each axis, the length of the wire feed, the production speed, and the number of production can be displayed on the screen. According to the working conditions on the display, the outer diameter and angle of the product can be modified at any time. It is equipped with precision detection and tracking equipment, which can automatically stop the machine if there are unqualified products.

4, The machine is suitable for the production of double torsion springs, straight springs, tower springs, tension springs, rectangular springs, vortex springs and various fancy springs and shaped springs.





Wire size 0.2-2.3mm
Max feeding speed 141m/min
Direct storage programs 1000
X-axis motor output 2.7KW
Y-axis motor output 2.7KW
Z-axis motor output 1.0KW
Machine size 1400×900×1600mm
Voltage 380V
Weight 700kg





Detailed Images

Multi Functional Automatic CNC Spring Machine Three Axes With Servo Motor System 0Multi Functional Automatic CNC Spring Machine Three Axes With Servo Motor System 1

Multi Functional Automatic CNC Spring Machine Three Axes With Servo Motor System 2Multi Functional Automatic CNC Spring Machine Three Axes With Servo Motor System 3

FAQ

Q1: How long you can delivery ?
About 15-20 days after we received the deposit (30%T/T in advance ,70% T/T before shipment )


Q2: How about your equipment quality?
We guarantee that all equipment are CE&ISO standard and one year warranty, We invite you to visit our factory and inspect the equipment before packing.

Q3: How is the service that your equipment beyond the warranty period?
Your project salesman and engineer will mail or telephone visit to you at regular intervals after sales, and will provide
equipment’s lifelong service.



Company Introduction
HYD was established in 2000,which is more than fifteen years experience now,the owner of this company is with more than twenty-five years experience.Now HYD brand is becoming one of the most popolar spring machine manufactuerer in Chinese spring machine market.HYD has many customers distributing in Asia.Europe,South America.
