|Place of Origin:||Dongguan,China|
|Certification:||CE / IS09001|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Standard Seaworthy Plywood Case|
|Delivery Time:||30 Days|
|Wire Diameter:||High-carbon Steel:1-4mm Low Carbon Steel:2-6mm||Axis:||Twelve Axes Or Two More Axes|
|Optional Tools:||Servo Scissors||Power Supply:||380V 50Hz|
|Motor Brand:||Japan||Guarantee Period:||One Year|
cnc coiling machine,
automatic spring machine

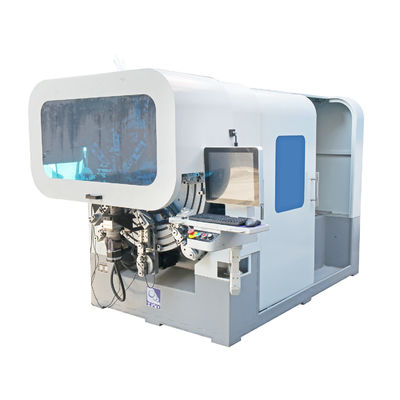

4mm Spring Rotating Forming Machine and Spiral Spring Bending Machine
|Axis Count||twelve axis|
|Wire Size Range||low carbon steel:2-6mm|
|Lead rail||distance of 100mm|
|Wire feeding count||4 pairs|
|Max Feeding speed||100m/min|
|Maximum error||± 0.05mm(length)|
|Control system+decoiler||1 set|
|Servo motor power||27KW|
|Minimum length of ange||4 times wire diameter|
1. Using the link rocker design, independent single-axis servo motor control, simple and convenient
operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase
2. It has total 12 axis, the Cam axis, Feeding axis, Quill Rotary axis, the Wire rotary axis and the Spinner axis.
1. Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc
2. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
3. Q: What is the payment term
A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receiving deposit.But it depends on machine model.Some of them could be shipped within 10 days.
5. Q: What is the guarantee period of the machine?
A: The guarantee period is one year from the date of B/L.
