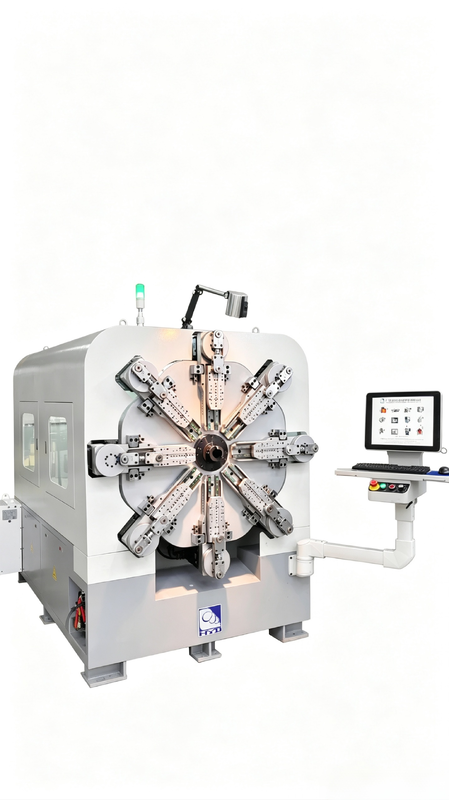

80m Per Min CNC Spring Making Machine Wire Bending And Sixteen Axes Systems

80m Per Min CNC Spring Making Machine Wire Bending And Sixteen Axes Systems

80m Per Min CNC Spring Making Machine Wire Bending And Sixteen Axes Systems
80m Per Min CNC Spring Making Machine Wire Bending And Sixteen Axes Systems
80m Per Min CNC Spring Making Machine Wire Bending And Sixteen Axes Systems
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-60T-16A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 30 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 10 Sets One Month
Contact Now
Detailed Product Description
Wire Diameter: Low-carbon Steel 3-8mm High-carbon Steel 2-6mm Reducer: Taiwan
Servo Motor: Sanyo Port: Shenzhen,China
System: One Set
Highlight:

cnc coiling machine

,

cnc spring making machine

80m Per Min CNC Spring Making Machine Wire Bending And Sixteen Axes Systems
CNC Spring Making Machine and Wire Bending Machine with Sixteen Axes
Machine Features
  • Reverse lifting platform reaches the maximum bending frame size 600mm × 1000mm, professional processing line for molding
  • The design of hydraulic shears, cut directly after forming without cutting back again, indirectly enhance productivity
Technical Specifications
Model HYD-60T-13A
Axis Count 13 axis
Wire Size Range Steel wire: 2-6mm
Iron wire: 3-8mm
Maximum Wire Length Unlimited
Max Feeding Speed 80m/min
Wire Feeding Wheel Count 4 pairs
Motor Power Consumption 59KW
Reducer 13 pcs
Machine Size 3600×1400×2050mm
Weight 4500kg
Product Gallery
HYD CNC Spring Making Machine front view HYD CNC Spring Making Machine side view HYD CNC Spring Making Machine control panel HYD CNC Spring Making Machine wire feeding mechanism HYD CNC Spring Making Machine bending unit
Company Commitment
Quality Products for Customer Success

Our products are designed to meet customer requirements. Providing customers with the best quality products is our basic work requirement, and our ultimate purpose is to help customers succeed through high-quality and accurate products.

Advanced Technology Guidance

In the high-tech field, we take advanced concepts as our guide. HYD takes this as a responsibility to attract customer consumption through technological leadership.

Comprehensive Service Support

We deliver to customers not only quality products but also quality services. Allowing customers to enjoy our service is our purpose, with the concept of active service ensuring customers secure the benefits of our products.

Machine Purchasing Process
  1. Customer provides HYD with spring drawing
  2. HYD provides technical information for machine and spring making information
  3. Customer confirms machine and order, then arranges 30% deposit as PO confirmation
  4. HYD makes spring set-up in machine after manufacturing period
  5. HYD ships machine after customer's spring confirmation and receives balance payment
  6. Machine following for transposition and all after-sales service
