Multi Functional Spring Bending Machine And Spring Former Combined Machine

Multi Functional Spring Bending Machine And Spring Former Combined Machine

  • Multi Functional Spring Bending Machine And Spring Former Combined Machine
Multi Functional Spring Bending Machine And Spring Former Combined Machine
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-60T-16A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 20 Days
Payment Terms: Negotiable, L/C, D/A, D/P, Western Union, MoneyGram, T/T
Contact Now
Detailed Product Description
Axis: Sixteen Axes Optional Tools: Spinner/ Machine Hand/Servo Scissors
Power Ac: 380V 50Hz Servo Motor: Sanyo
Guarantee Period: One Year Port: Shenzhen,China
High Light:

spring forming machine

,

automatic wire bending machine

Spring Bending Machine and Spring Making Machine with Sixteen Axes​



Sixteen-axis multi-functional combined machine
Model HYD-60T-16A
Axis Count 16 aixs
Wire Size range steel wire:2-6mm
iron wire:3-8mm
Maximum wire length Unlimted
Max feeding speed 80m/min
Wire Feeding wheel count 4 pairs
Motor power consumption 59KW
Reducer 13 pcs
Machine size 3600×1400×2050mm
Weight 4500kg
Power AC 3-380VAC 50Hz





Machine Features:


1. This CNC Versatile Spring Rotating Forming Machine adopts Taiwan control system and Japan motor to control the feeding system and cam system synchronously.

2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track

Design, you can adjust the left and right, more flexible adjustment.

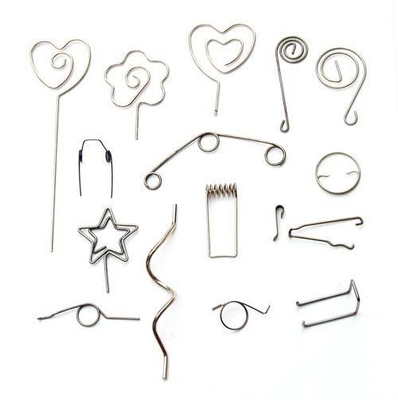

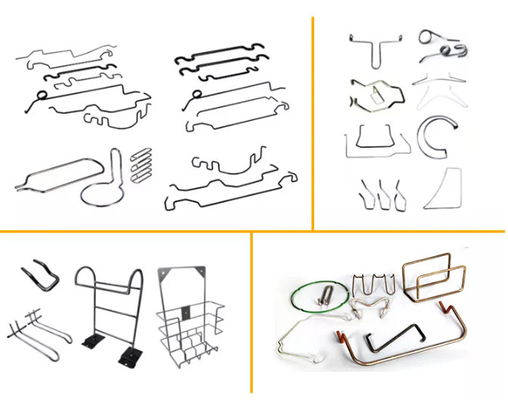

3. This machine is suitable for making various Compression spring, Extension spring, Single (double) torsion spring, Tower shaped compression spring, Flat wire spring, and any kind wire forming.


4. Taiwan control system, more effectively ensure the mechanical and computer synchronization.


5. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.







After-sale service:

---Free installation & training service in HYD company.

---Always provide customers efficient on-line response.



Can you provide technical support?

---HYD provide free technical support,installation and training of machine.



How do you support when machine goes wrong.

---Talk with HYD specialist online by telephone, Skype, WhatsApp etc and give high-efficient solution for the incorrect operation or change the consumable parts.

---HYD specialist will teach you how to change the parts during the training time.







Why us



• Independent R&D ability



• 15 years experience in spring machine industry



• Quick and patient reply for Before and After sale service



• Training in factory is available,spring set-up in machine for shipment
