Max Fourteen Axes CNC Spring Machine 2.0mm - 6.0mm Cam Less Torsion Systems

Max Fourteen Axes CNC Spring Machine 2.0mm - 6.0mm Cam Less Torsion Systems

Max Fourteen Axes CNC Spring Machine 2.0mm - 6.0mm Cam Less Torsion Systems
Max Fourteen Axes CNC Spring Machine 2.0mm - 6.0mm Cam Less Torsion Systems
Max Fourteen Axes CNC Spring Machine 2.0mm - 6.0mm Cam Less Torsion Systems
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-60T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 20 Days
Payment Terms: Negotiable,T/T,L/C
Supply Ability: 20 Pcs Per Month
Contact Now
Detailed Product Description
Wire Diameter: Low-carbon Steel 3-8mm High-carbon Steel 2-6mm Number Of Axis: 12 Axes
Transport Package: Wooden Case Servo Motor: Japan Brand
Origin: China HS Code: 84633000
Port: Shenzhen,China Trademark: HYD
Highlight:

cnc coiling machine

,

cnc spring making machine

Max Fourteen Axes CNC Spring Machine 2.0mm - 6.0mm Cam Less Torsion Systems
Max Fourteen Axes 2.0mm - 6.0mm Cam-Less Spring Forming Machine
Technical Specifications
Model HYD-60T-12A
Axis Count 12 axis
Wire Size Range Low carbon steel: 3-8mm
High-carbon steel: 2-6mm
Lead Rail Distance of 130mm
Wire Feeding Count 4 pairs
Max Feeding Speed 80m/min
Maximum Error ±0.1 (length)
Control System + Decoiler 1 set
Servo Motor Power 49.7KW
Reducer 11pcs
Minimum Length of Angle 4 times wire diameter
Machine Size 2600×1400×2050mm
Machine Weight 4500kg
Machine Gallery

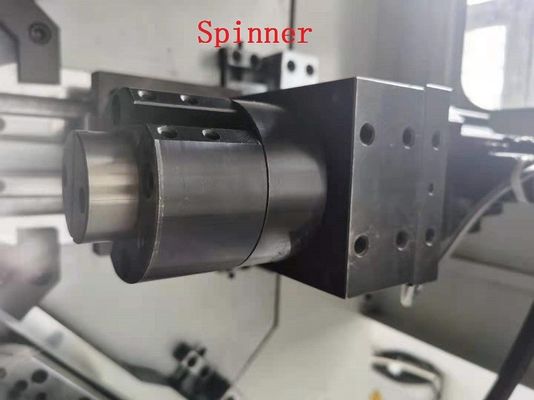

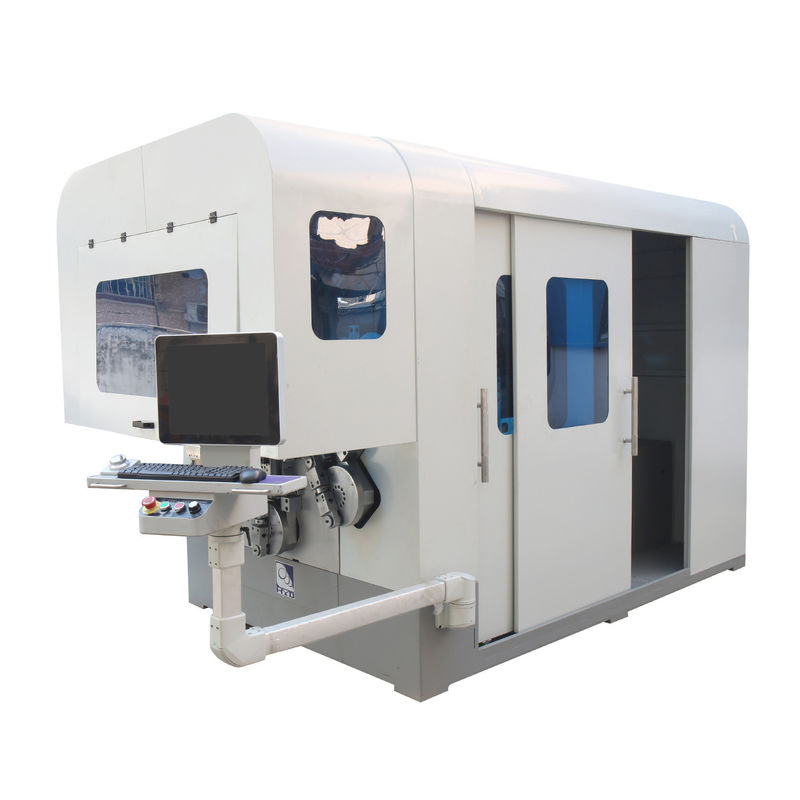

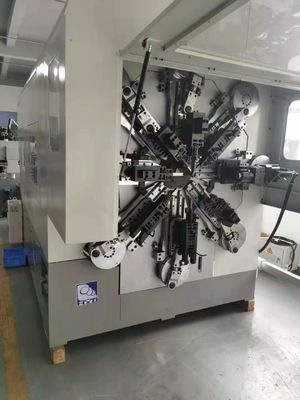

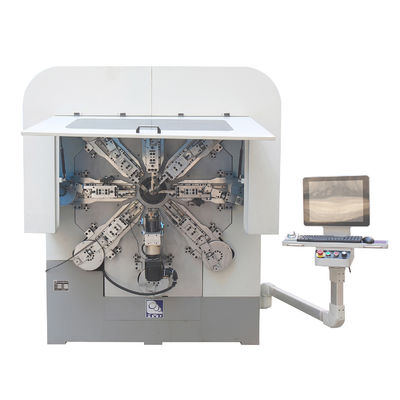

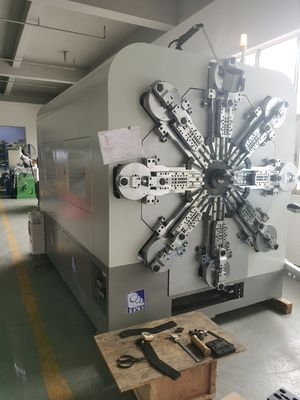

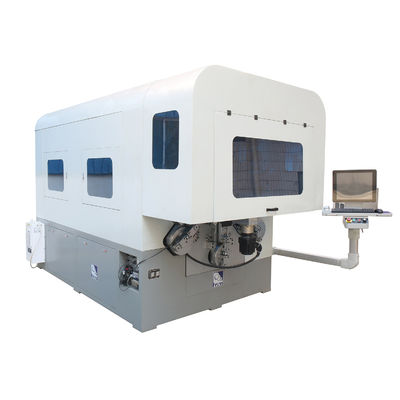

Max Fourteen Axes CNC Spring Machine front view Max Fourteen Axes CNC Spring Machine side view CNC Spring Machine close-up detail Spring Machine tooling and components CNC Spring Machine operational view
Machine Features
  • Using the link rocker design with independent single-axis servo motor control for simple and convenient operation. Shaped springs may be placed by the angle of the tooling to reduce setup times and increase production efficiency.
  • Taiwan double roller guides provide excellent wear resistance and durability to maintain accuracy. Dual track design allows flexible left and right adjustment.
  • Taiwan helical gear reducer ensures secure intensity and reliable performance.
  • Taiwan control system effectively ensures mechanical and computer synchronization.
  • Separate motor and power transmission lines reduce delivery line box load, increase turn angle of the line, and effectively ensure accuracy and line feed transfer.
Service Support
  • Durable machine quality and professional service provided
  • Free production solutions from HYD company's experienced staff - best solutions provided at all times
  • Warm welcome for visiting HYD company for machine checking or training
