| Place of Origin: | Dongguan, China |
| Brand Name: | HYD |
| Certification: | CE |
| Model Number: | 60T-12A |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | USD 75000-81200 / sets |
| Packaging Details: | Wooden case |
| Delivery Time: | 45 - 60 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 60 sets / year |
| Motor: | Sanyo Denki | Gear: | Wear Resistance Material |
|---|---|---|---|
| Axes: | 12-16 | Guide Rail Stroke: | 200mm |
| Feeding Wheel Groups: | 4 | Tools: | Wearable |
| Inside Height: | 2100mmm | Bearing: | NSK |
| High Light: | Servo Motor CNC Spring Machine,12 Axes CNC Spring Machine,Servo Motor CNC Spring Making Machine |
||

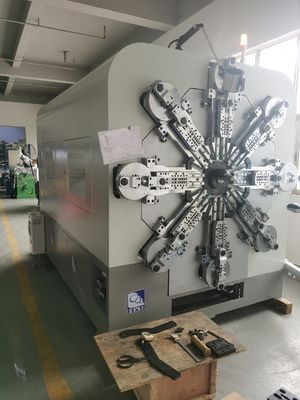

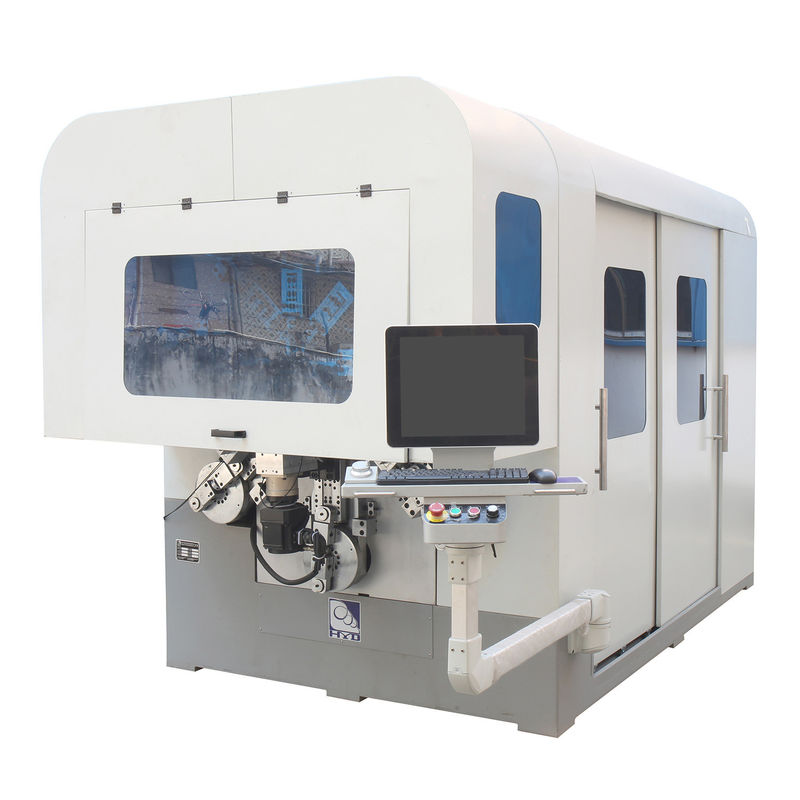

12 Axes CNC Spring Machine Camless Servo Motor Spring Making Machine 6mm Wire Rotary Machine
1. Description
Equipped with guide rail to ensure higher precision, operation stable and lower repairing cost.
Camless design, then testing and commissiong faster than traditional cam spring machine.
Reducers are working with servo motors, long life and less heat.
Multi-function of wire rotary, it can make more complex extension, torsion or special shape springs.
Air conditioner is installed for cooling of machine temperature, it is cool when stand in the machine box for commisiong. Servo
motors will be durable and work well.
Model features:
1. The use of connecting rod armless design, single-axis servo motor independent control, easy operation, special-shaped
springs can reduce the adjustment time by placing the tooling angle, and improve production efficiency.
2. Adopting Taiwan roller guide rail, which has good wear resistance and can maintain precision for a long time.
3. Servo shear design, cut directly after forming, process longer products, reduce the impact force of cutting on the mandrel,
and protect the cutter and the machine.
4. Taiwan control system. It can more effectively ensure the synchronization between the machine and the computer.
5. The wire transfer motor is separated from the wire feed box, which reduces the load of the wire feed box, increases the wire
transfer angle, and effectively guarantees the accuracy of the wire feed transfer.
2. Data sheet
| Twelve axes mufti-functional spring machine | |
| Model | HYD-60T-12A |
| Axis Count | 12 axis |
| Wire Size Range | low carbon steel:3-8mm |
| high-carbon steel:2-6mm | |
| Lead rail stroke | distance of 200mm |
| Wire feeding wheel groups | 4 |
| Max Feeding speed | 80m/min |
| Maximum error | ±0.1(length) |
| Control system+decoiler | 1 set |
| Servo motor power | 51.2KW |
| Reducer | 11pcs |
| Minimum length of angel | 4 times wire diameter |
| Machine size | 4200*2100*2350mm |
| Machine weight | 6000kg |

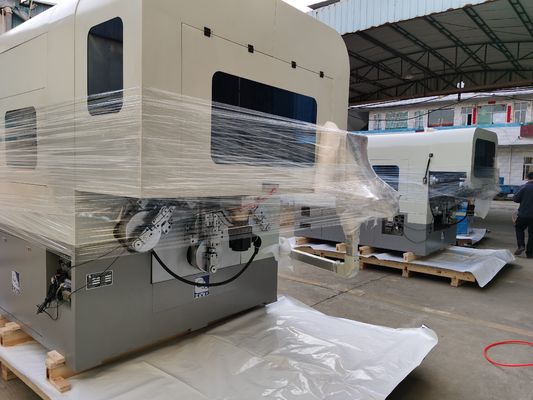

3. Packing and deliverying
Packing: wooden case
Deliverying: within 45-60 days after down payment
4. FAQ
1.How can you help me to use the machine?
We will commission machine well, make samples, and take videos for customers;
Training free 1 week in sales factory, paid if need field training;
Also, Online supporting or video technical supporting could be supplied.
2.How can I know that you supply cost-effective solutions?
Machine will be suggested with your spring requires and budget.
Providing the most suitable plan for reference.
3. Development of spring machinery
As an important component of the industrial system, springs are used in almost all areas of the national economy. And
there are many kinds, so the production of springs is also primitive hand-made, gradually moving towards automation.
Ninety years ago in China, the spring industry had very few mechanical equipment specializing in the production of springs. As
the spring market grew, professional spring equipment companies gradually entered our country. Small domestic manufacturers
are characterized by high quality and low price. With the continuous improvement of China's R&D and manufacturing
capabilities, China has gradually moved from importing computer spring machines to exporting, indicating that
Chinese country's spring machine industry has developed rapidly.
