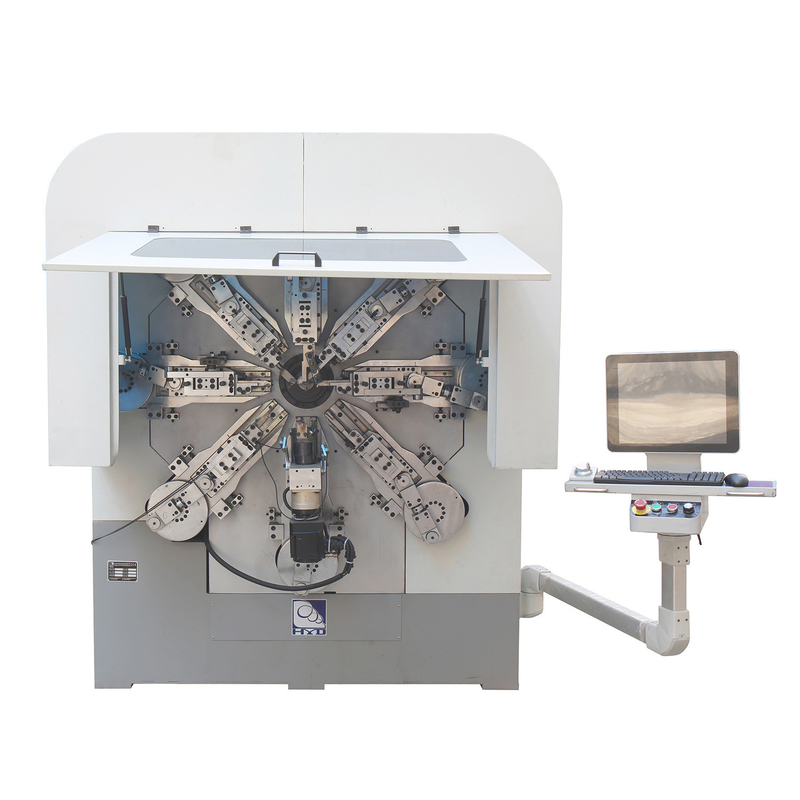

Wearable Gear 6mm Camless CNC Spring Coiling Machine

Wearable Gear 6mm Camless CNC Spring Coiling Machine

Wearable Gear 6mm Camless CNC Spring Coiling Machine
Wearable Gear 6mm Camless CNC Spring Coiling Machine
Wearable Gear 6mm Camless CNC Spring Coiling Machine
Product Details:
Place of Origin: Dongguan, China
Brand Name: HYD
Certification: CE
Model Number: 60T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: USD 76500-86900 / sets
Packaging Details: Wooden case
Delivery Time: 45 - 60 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets / year
Contact Now
Detailed Product Description
Gear: Wearable Model: 1260
Claws: Guide Rail Usage: Making Torsion, Tension, Special Shape Springs
Inside Height: 2100mmm Bearing: NSK
High Light:

6mm Spring Coiling Machine

,

Camless CNC Spring Coiling Machine

,

Wearable Gear CNC Spring Machine

6mm Camless Spring Coiling Machine Wearable Gear CNC Wire Rotation Machine





Introduction



Since cam machines cannot meet the development of modern spring industry, camless spring machines have gradually entered



our field of vision. The cam-free machine is quick to adjust, and it is more convenient to make complex spring and wire forming



products. The cam-free and rocker-free design of the cam-free spring machine is easy to debug and operate. The independent



servo motor controls 8 guide rail claws, without the need to arrange cams, and has a unique multi-functional advantage. After



entering the 21st century, with the rapid development of the spring processing industry, the requirements for spring products are





becoming higher and higher. The technological innovation of the spring machinery industry is also an inevitable trend. New



echnology products and new process designs are also constantly innovating and widely used.





Machine characteristics:


1. The use of connecting rod armless design, single-axis servo motor independent control, easy operation, special-shaped



springs can reduce the adjustment time by placing the tooling angle, and improve production efficiency.


2. Adopting Taiwan roller guide rail, which has good wear resistance and can maintain precision for a long time.


3. Servo shear design, cut directly after forming, process longer products, reduce the impact force of cutting on the mandrel,



and protect the cutter and the machine.


4. Taiwan control system. It can more effectively ensure the synchronization between the machine and the computer.


5. The wire transfer motor is separated from the wire feed box, which reduces the load of the wire feed box, increases the wire



transfer angle, and effectively guarantees the accuracy of the wire feed transfer.

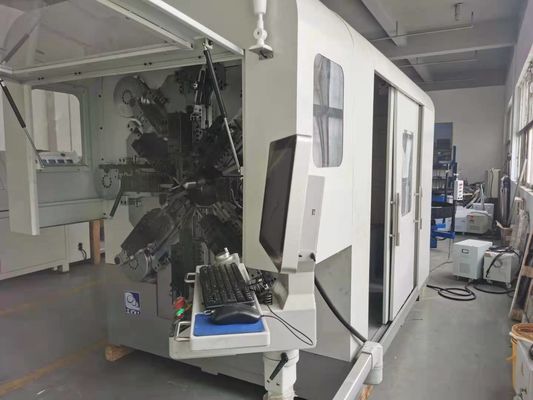

Wearable Gear 6mm Camless CNC Spring Coiling Machine 0Wearable Gear 6mm Camless CNC Spring Coiling Machine 1



Wearable Gear 6mm Camless CNC Spring Coiling Machine 2



Wearable Gear 6mm Camless CNC Spring Coiling Machine 3





Data sheet



Twelve axes mufti-functional spring machine
Model HYD-60T-12A
Axis Count 12 axis
Wire Size Range low carbon steel:3-8mm
high-carbon steel:2-6mm
Lead rail stroke distance of 200mm
Wire feeding wheel groups 4
Max Feeding speed 80m/min
Maximum error ±0.1(length)
Control system+decoiler 1 set
Servo motor power 51.2KW
Reducer 11pcs
Minimum length of angel 4 times wire diameter
Machine size 4200*2100*2350mm
Machine weight 6000kg

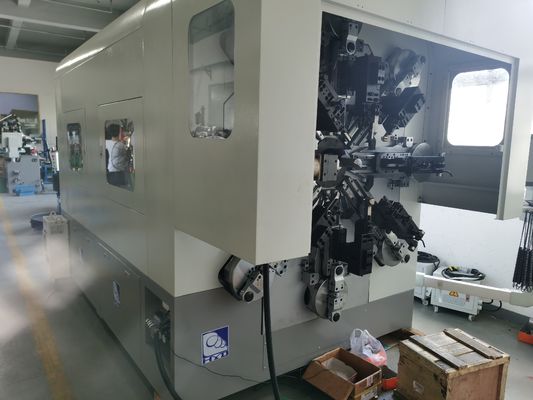

Wearable Gear 6mm Camless CNC Spring Coiling Machine 4

1. Length 4200mm

2. Inner height is 2100mm.

3. Space inside is large enough to stand a few people.

4. It is fixed with sliding doors, will not take up space.

5. Protective cover is for reducing noise, protecting production.

6. Equipped with transformer that is suitable for many different voltage scenarios.

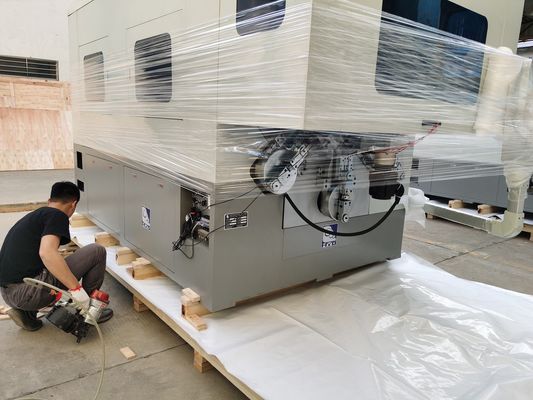

Packing and deliverying

Packing: wooden case

Deliverying: within 45-60 days after down payment


Wearable Gear 6mm Camless CNC Spring Coiling Machine 5




Customers



Wearable Gear 6mm Camless CNC Spring Coiling Machine 6



Wearable Gear 6mm Camless CNC Spring Coiling Machine 7


Wearable Gear 6mm Camless CNC Spring Coiling Machine 8


Certificate



Wearable Gear 6mm Camless CNC Spring Coiling Machine 9



Machine Structure


Spring machinery is generally composed of a host, a control system, a motor power unit, auxiliary devices, and auxiliary



equipment. The key is the control system, which has developed from the mechanical type controlled by electrical appliances to



the CNC computerized spring machinery with electromechanical and optical integration. The control system is mainly



composed of bus, CPU, power supply, memory, operation panel and display screen, position control unit, programmable



controller logic control unit and data input/output interface. The main machine is also changed from the previous thick, black



and heavy castings to alloy steel machine panels, which improves the mechanical strength and rigidity. The fully automatic



closed gear transmission and lubrication make the spring mechanical precision and efficiency higher.


The spring machine includes the machine body, operation panel, feed mechanism, tool holder (mechanical arm), hydraulic and



other mechanical components. It is a mechanical part used to complete all kinds of spring wire processing.
