| Place of Origin: | Dongguan, China |
| Brand Name: | HYD |
| Certification: | CE |
| Model Number: | 60T-12A |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | USD 812000-86900 / sets |
| Packaging Details: | Wooden case |
| Delivery Time: | 45 - 60 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 60 sets / year |
| Motor: | Sanyo Denki | Gear: | Wearable |
|---|---|---|---|
| Axes: | 14 | Guide Rail Stroke: | 200mm |
| Weight: | 6000kg | Tools: | Wearable |
| Inside Height: | 2100mmm | Bearing: | NSK |
| Highlight: | 14 Axes CNC Spring Machine,Camless CNC Spring Machine,Sanyo Denki Motor Spring Forming Machine |
||

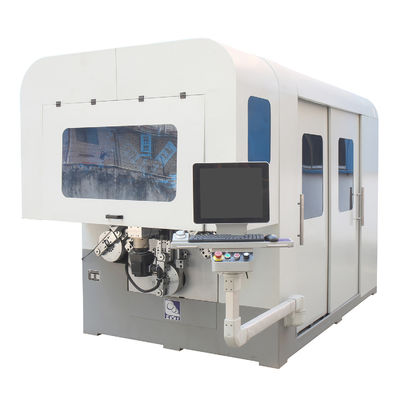

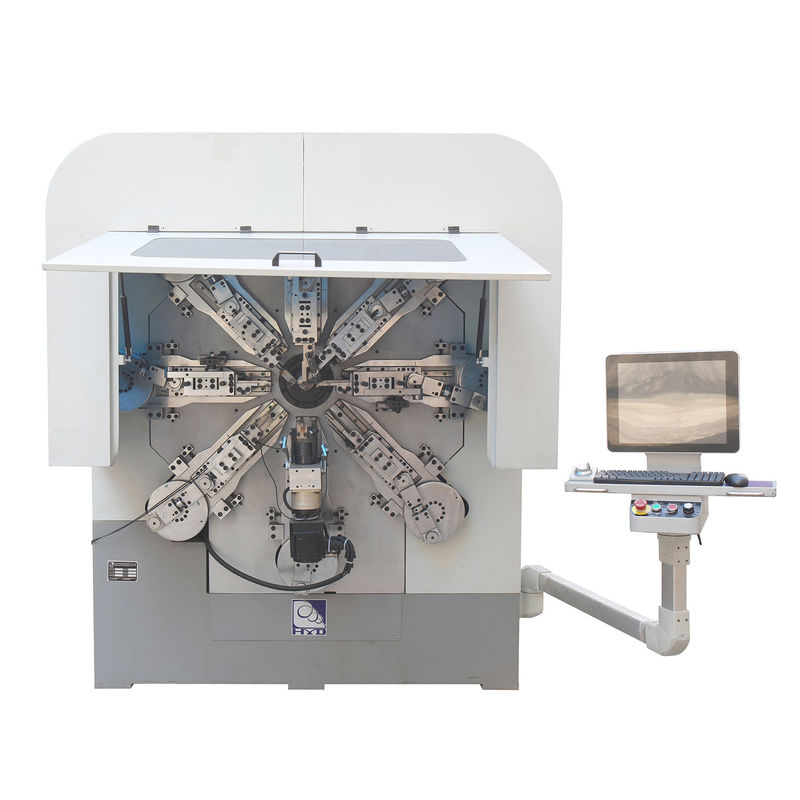

Camless 14 Axes CNC Spring Making Coiling Machine Wire Rotary Forming Bending Machine
Description
Equipped with guide rail to ensure higher precision, operation stable and lower repairing cost.
Camless design, then testing and commissiong faster than traditional cam spring machine.
Reducers are working with servo motors, long life and less heat.
Multi-function of wire rotary, it can make more complex extension, torsion or special shape springs.
Air conditioner is installed for cooling of machine temperature, it is cool when stand in the machine box for commisiong. Servo
motors will be durable and work well.
Data sheet
| Twelve axes mufti-functional spring machine | |
| Model | HYD-60T-12A |
| Axis Count | 12 axis |
| Wire Size Range | low carbon steel:3-8mm |
| high-carbon steel:2-6mm | |
| Lead rail stroke | distance of 200mm |
| Wire feeding wheel groups | 4 |
| Max Feeding speed | 80m/min |
| Maximum error | ±0.1(length) |
| Control system+decoiler | 1 set |
| Servo motor power | 51.2KW |
| Reducer | 11pcs |
| Minimum length of angel | 4 times wire diameter |
| Machine size | 4200*2100*2350mm |
| Machine weight | 6000kg |

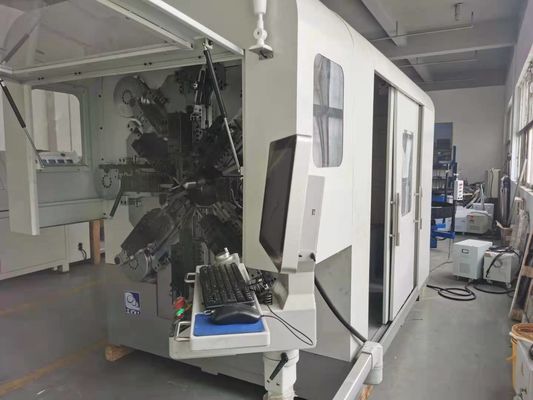

1. Length 4200mm
2. Inner height is 2100mm.
3. Space inside is large enough to stand a few people.
4. It is fixed with sliding doors, will not take up space.
5. Protective cover is for reducing noise, protecting production.
6. Equipped with transformer that is suitable for many different voltage scenarios.
Machine features:

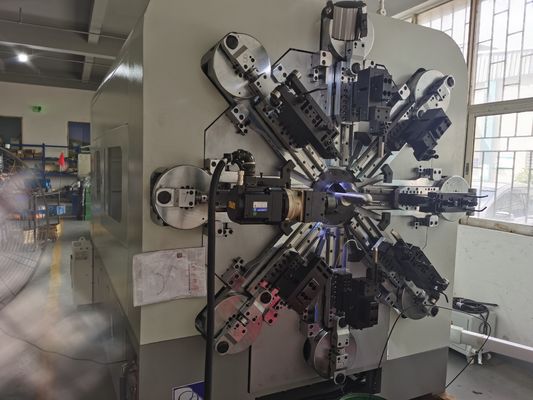

1. The machine is designed with no cam and no rocker arm, with fast adjustment speed, high precision and good stability.
2. CNC and Japan Sanyo Denki servo motor.
3. The wire feeding adopts a wire rotary system, which makes the wire feeding more stable and easier to commission.
4. Its computer is Chinese and English interface, which is easy to operate.
5. Suitable for the production of double tension springs, straight springs, pagoda tension compression springs, rectangular
springs, wire forming, steel coil springs and various fancy springs, special-shaped springs, etc.
6. The wire transfer motor is separated from the wire feed box, which reduces the load of the wire feed box, increases the wire
transfer angle, and effectively guarantees the accuracy of the wire feed transfer.
Packing and deliverying

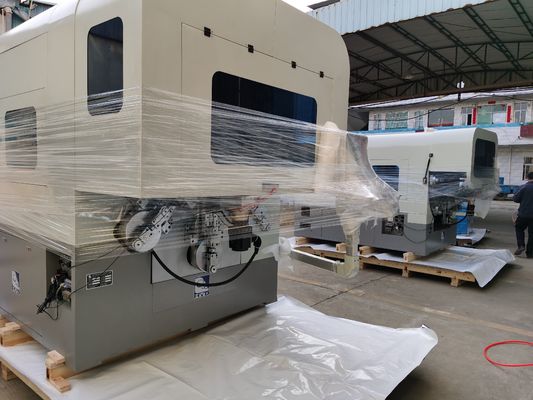

Packing: wooden case
Deliverying: within 45-60 days after down payment
FAQ
1. How can you help me to use the machine?
We will commission machine well, make samples, and take videos for customers;
Training free 1 week in sales factory, paid if need field training;
Also, Online supporting or video technical supporting could be supplied.
2. How can I know that you supply cost-effective solutions?
Machine will be suggested with your spring requires and budget.
Providing the most suitable plan for reference.

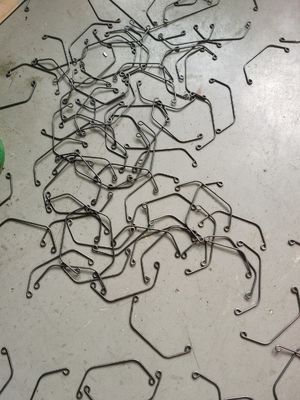

Samples
