6.0mm Multifunctional Camless CNC Spring Machine

6.0mm Multifunctional Camless CNC Spring Machine

6.0mm Multifunctional Camless CNC Spring Machine
6.0mm Multifunctional Camless CNC Spring Machine
6.0mm Multifunctional Camless CNC Spring Machine
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE/IS9001
Model Number: HYD-60T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Wire Diameter: Low-carbon Steel:3-8mm High-carbon Steel:2-6mm Number Of Axes: 12 Axes
Transport Package: Sea-worthy Plywood Case Servo Motor: Sanyo
Origin Place: GuangDuan,China HS Code: 8463300000
Port: Shenzhen Payment: 30% Deposit In Advance, Balance Payment Before Shipment
High Light:

Multifunctional Camless CNC Spring Machine

,

6.0mm CNC Spring Machine

,

Multifunctional CNC Spring Forming Machine

6.0mm Mutifuntional Camless Cnc Spring Machines



Model  HYD-60T-12A
Number of Axes 12 Axes
Wire Diameter Low carbon Steel:3-8mm  High carbon Steel:2-6mm
Lead Rail Distance of 130mm
Wire Feeding Number  4 pairs
Max Wire Feed Speed 80m/min
Max Error  +/-0.1(Length)
Servo Motor Power  50.7kw
Reducer 11pcs
Min Angel Length  4 Time wire Diameter
Machine Dimension  2600*1400*2050mm
Machine Weight 4500kg

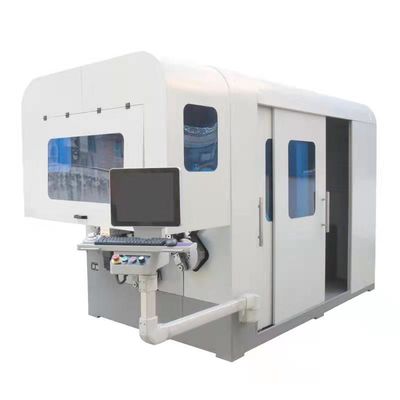

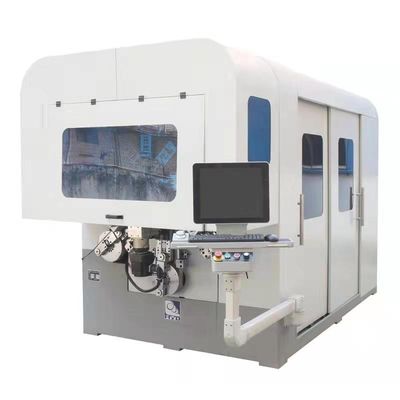

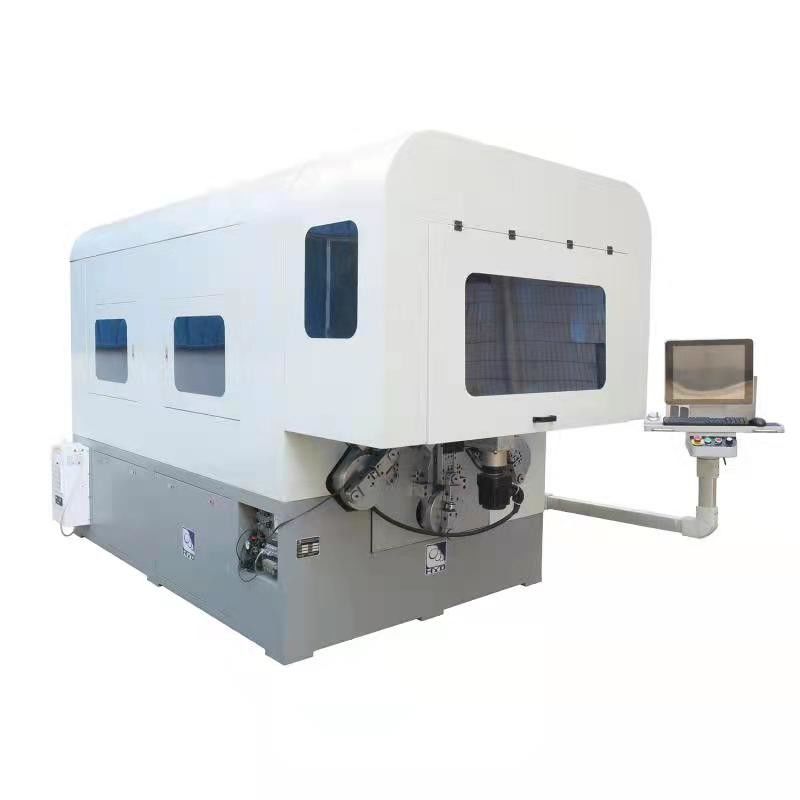

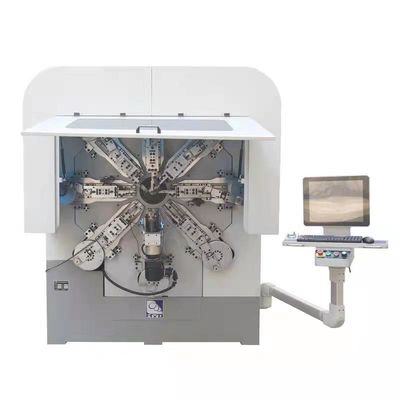

Machine Pictures:



6.0mm Multifunctional Camless CNC Spring Machine 06.0mm Multifunctional Camless CNC Spring Machine 16.0mm Multifunctional Camless CNC Spring Machine 2





Machine Features



1. Using the link rocker design, independent single-axis servo motor control, simple and convenient operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase
production efficiency.

2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track Design, you can adjust the left and right, more flexible adjustment.


3. Taiwan helical gear reducer, the intensity more secure.


4. Taiwan control system, more effectively ensure the mechanical and computer synchronization.


5. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.



Product made by our spring machine

6.0mm Multifunctional Camless CNC Spring Machine 3

FAQ
Q: What information should customer provide to get wire Forming machine offer from HYD?
A: Please you usually share below info to check suitable machine.
* Specific drawing
* Wire material
* Additional function you need with the machine ,such as chamfering, threading, etc.
We will check best solution and offer for your requests after checking details.

Q: How can I know if HYD wire forming machine can produce my product precision?
A: If you have high precision outputs requests, would you please send gauge or parts which this outputs will fit, we will set parts for you to fit them. Or we can send samples for you to measure.

Q: How can I get training if have no experience about wire forming machine?
A: We will give 5 days training in our factory, we warmly welcome you to our factory to check and learn machine training before shipment. We will send manual book with machine and also can send video to show you how to run machine if you have doubts.
