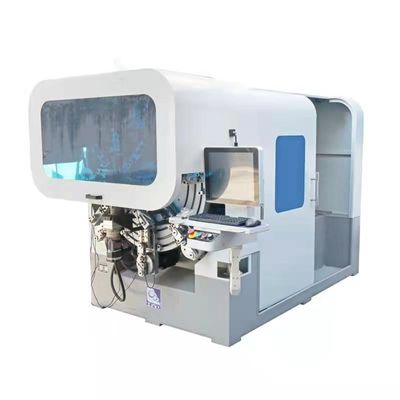

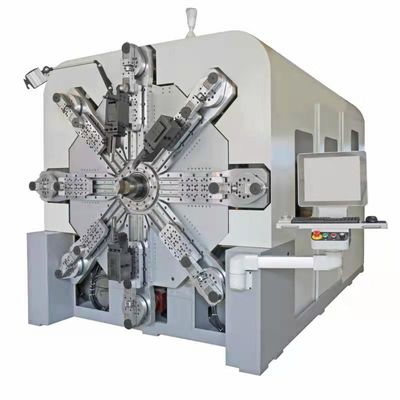

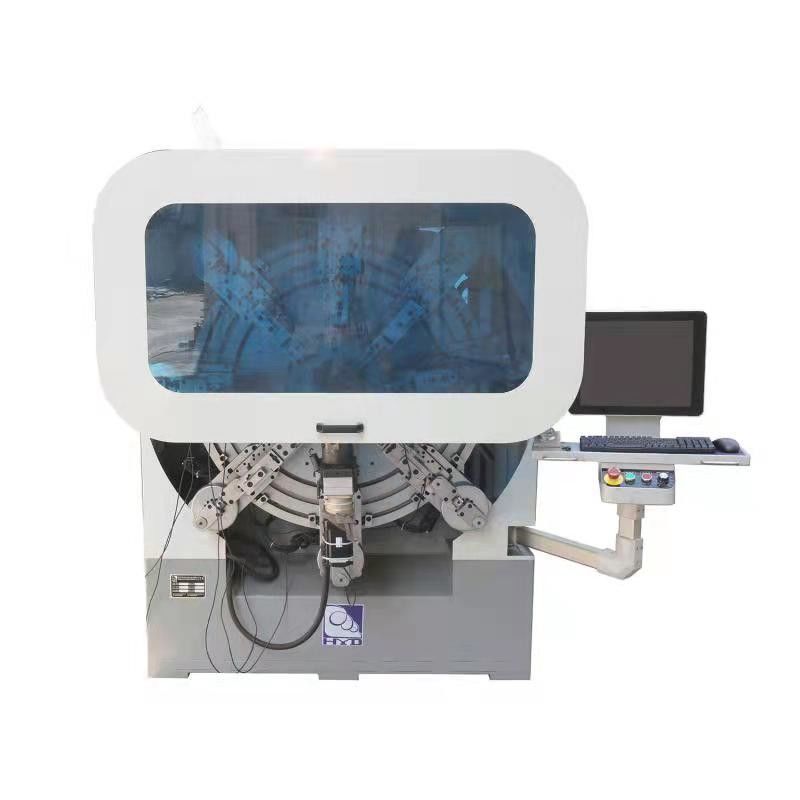

Multifunctional CNC Spring Coiling Machine With Wire Rotation

Multifunctional CNC Spring Coiling Machine With Wire Rotation

Multifunctional CNC Spring Coiling Machine With Wire Rotation
Multifunctional CNC Spring Coiling Machine With Wire Rotation
Multifunctional CNC Spring Coiling Machine With Wire Rotation
Product Details:
Place of Origin: DuangGuan,China
Brand Name: HYD
Certification: CE,IS9001
Model Number: HYD-40T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Wire Size: Soft Wire:2-6mm Hard Wire:1-4mm Axis: 12 Axes
Optional Tools: Spinner/Free Hand/Servo Scissors Servo Motor: Sanyo
Payment Term: TT, LC, Western Union, Cash Guarantee Period: One Year
Port: Shenzhen,China
High Light:

Multifunctional CNC Spring Coiling Machine

,

Wire Rotation CNC Spring Coiling Machine

,

Multifunctional CNC Spring Machine

Multifunctional Cnc Spring Coiling Machine With Wire Rotation



Function and features

1. The 3D wire forming machine adopts intelligent computer control system and Japanese imported servo motor, which is independently controlled by multiple sets of servo motors. It has strong scalability and features such as convenient and fast operation, high speed, and high precision.
2. The computer starts and shuts down fast, multi-language display, simple and convenient operation. The computer interface can adjust the speed and modify the program while producing;
3. Imported parts are used for important parts such as bearings, gears, and guide rails. The protection device is an anti-collision machine, and the composite tool completes all the processes, and the loss of vulnerable parts is low.
4. High precision, can make wire forming products within the range of 3.0-10mm wire diameter, and the error is reduced to 0.1mm. The matching use of the automatic wire feeder makes the machine's wire changing operation more convenient.
5. The machine is mainly used in the auto parts industry; pet cage accessories; garden tool accessories; electronic and electrical product molding; toy accessories molding; sports equipment accessories molding; kitchen and bathroom pendant hardware molding; handicraft molding; supermarket shelf accessories molding, etc. Metal wire forming field.



Technical data

Model HYD-40T-12A
Number of Axes 12 Axes
Wire Diameter Low carbon Steel:2-6mm   High carbon steel:1-4mm
Guide Rail Distance of 100m
Wire Feed Roller  4 Pairs
Max Wire Feed Speed +/-0.05
Max Wire Feed Speed 100m/min
Control System+Decoiler 1 set
Serve Motor Power 27kw
Reducer 11pcs
Minimum Length of Angel 4Times Wire Dianeter
Machine Dimension 1920*1200*1820mm
Machine Weight  3000kg





Machine Features:


1. Using the link rocker design, independent single-axis servo motor control, simple and convenient
operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase
production efficiency.

2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track

Design, you can adjust the left and right, more flexible adjustment.


3. Taiwan helical gear reducer, the intensity more secure.


4. Taiwan control system, more effectively ensure the mechanical and computer synchronization.


5. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.







FAQ


1. Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc



2. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.



3. Q: What is the payment term
A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.



4 Q: What is the delivery time?
A: Normally the manufacturing time of the machine is 30 days after receiving deposit.But it depends on machine model.Some machine production can be finished within 15 days.



5. Q: What is the guarantee period of the machine?
A: The guarantee period is one year from the date of B/L.

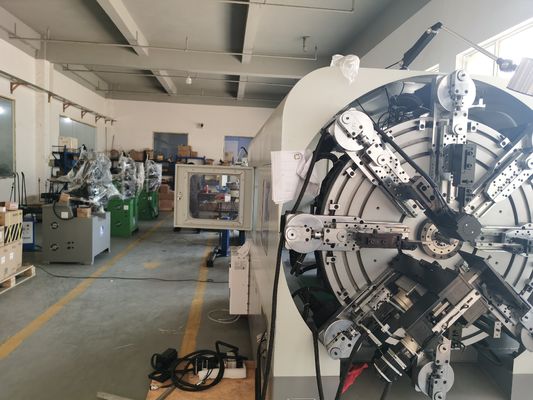

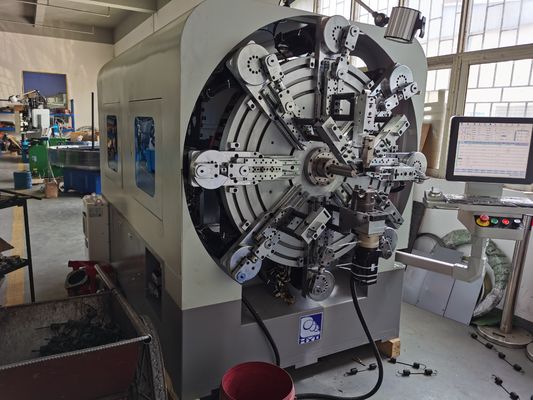

More Machine Pictures:



Multifunctional CNC Spring Coiling Machine With Wire Rotation 0Multifunctional CNC Spring Coiling Machine With Wire Rotation 1Multifunctional CNC Spring Coiling Machine With Wire Rotation 2Multifunctional CNC Spring Coiling Machine With Wire Rotation 3
