| Place of Origin: | DuangGuan,China |
| Brand Name: | HYD |
| Certification: | CE,IS9001 |
| Model Number: | HYD-40T-12A |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Seaworthy Plywood Case |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Wire Diameter: | Low Carbon Steel:2-6mm High-carbon Steel:1-4mm | Axis: | 12 Axes |
|---|---|---|---|
| Optional Tools: | Spinner/Machine Hand/Servo Scissors | Servo Motor: | Sanyo |
| Payment Term: | 30% Deposit, Balance Payment Before Delivery | Guarantee Period: | One Year |
| Port: | Shenzhen,China | Model: | HYD-40T-12A |
| After-sales Service: | Remote Free Technical Support By E-mail Or Telepho | ||
| High Light: | CNC Extension Spring Forming Machine,Camless Extension Spring Forming Machine,12 Axis Torsion Spring Forming Machine |
||

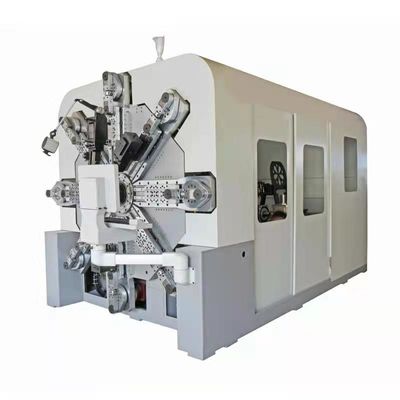

12 Axis CNC Camless Versatile Extension/Torsion Spring Forming Machine
| Model | HYD-40T-12A |
| Number of Axes | 12 Axes |
| Wire Diameter | Low carbon Steel:2-6mm High carbon steel:1-4mm |
| Guide Rail | Distance of 100m |
| Wire Feed Roller | 4 Pairs |
| Max Wire Feed Speed | +/-0.05 |
| Max Wire Feed Speed | 100m/min |
| Control System+Decoiler | 1 set |
| Serve Motor Power | 27kw |
| Reducer | 11pcs |
| Minimum Length of Angel | 4Times Wire Dianeter |
| Machine Dimension | 1920*1200*1820mm |
| Machine Weight | 3000kg |
Machine Features:
1. Using the link rocker design, independent single-axis servo motor control, simple and convenient
operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase
production efficiency.
2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track
Design, you can adjust the left and right, more flexible adjustment.
3. Taiwan helical gear reducer, the intensity more secure.
4. Taiwan control system, more effectively ensure the mechanical and computer synchronization.
5. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.
FAQ
1. Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc
2. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
3. Q: What is the payment term
A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receiving deposit.But it depends on machine model.Some of them could be shipped within 10 days.
5. Q: What is the guarantee period of the machine?
A: The guarantee period is one year from the date of B/L.
