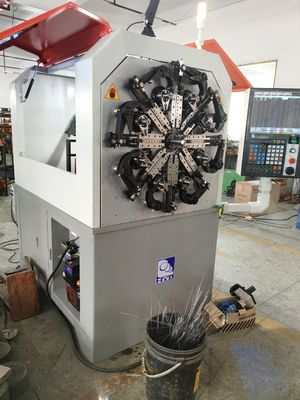

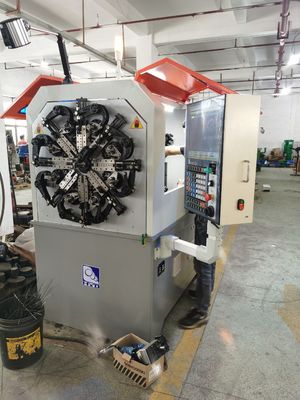

Cam CNC Spring Making Forming Wire Bender Rotary Machine With Servo Motor

Cam CNC Spring Making Forming Wire Bender Rotary Machine With Servo Motor

Cam CNC Spring Making Forming Wire Bender Rotary Machine With Servo Motor
Cam CNC Spring Making Forming Wire Bender Rotary Machine With Servo Motor
Cam CNC Spring Making Forming Wire Bender Rotary Machine With Servo Motor
Product Details:
Place of Origin: Dongguan, China
Brand Name: HYD
Certification: CE
Model Number: 20T-4A
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: USD 23000-27000
Packaging Details: Wooden case/ Vaccum packing
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Cash
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Wire Size: 0.3-2.5mm Gear: SKD11
Bearing: Durable Wire Feed Wheels: 3 Groups
Life: >10 Years Slider: 8 Pcs
High Light:

Cam CNC Spring Forming Machine

,

Servo Motor CNC Spring Forming Machine

,

Cam Wire Former Machine

CNC Spring Forming Machine Cam Spring Machine Wire Former Machine



Product Description

The cam wire rotary spring machine is based on the cam machine with the function of wire rotary which is convenient to operate, efficient, fast, stable, and high-precision. It is mainly composed of cam axis, wire feed axis, wire rotary axis, quil mandrel, spinner (optional accessory), etc. The five axes can be operated synchronously. Each axis is controlled by CNC. The wire feeding length, production speed, and production quantity can be modified according to its needs. It is only necessary to input data according to the drawing, and the debugging is very fast.

1. It is cam design, producing springs with high speed and accuracy, good stability.
2. Used Taiwan' s CNC system and equipped with Sanyo or Yaskawa servo motors.
3. Wire feed with rotary wire, so it is easy to commission.
4. Computer operation panel and screen displayed in Chinese and English which makes the operation easy.
5. It is suitable for for producing double tension spring , straight spring, pagoda-shape pull the compression spring , rectangle spring, swirl spring and other different spring and special -shape spring etc.
6. Its tool has good strength and durability, longer service life, less frequent replacement in the long-term, and lower cost. At the same time, it also saves maintenance time, which is conducive to long-term mass production and greatly improves production efficiency.



Data sheet

Model 20T-5A
Wire size Φ0.3-2.5mm
Total power 9.5KW
Servo motor axes 5
Wire feed wheels 3 groups
Wire feed 2.7KW
Wire rotary 2.7KW
Cam 2.7KW
Spinner 0.4KW
Quil 1KW
Machine size L1700xW1500xL1700MM
Weight 1500kg
Power 3 phase, 380V/50HZ



Packing

​Wooden case/ vacuum packing



Company Introduction

Huayida spring machinery factory which is located in the 1st floor, Building D, Xingyue Road, Yueshan Village, Dalingshan Town, Dongguan; The technology R&D center; It was established in Guangming new district of Shenzhen. The main production of universal CNC spring machine, computer spring coiling machine, wire forming machine, spring machine accessories and cutting tools, various series of multiple models and other products. The company has more than 10 mechaning equipment, annual production capacity 200 sets.



2010 with the well-known enterprises in Kun-chou, the company joined forces, together to create the leading technology for the core of the brand-name enterprises. Is the R & D personnel, and absorption of foreign advanced product design, advaced machining process so that the company's products in the design being perfect. Production assembly line employees have a skilled operation skill, rigorous work attitude and skilled operation skills to ensure the product quality requirements. The Company's control system and servo motor are the introduction of Japan, Taiwan and the mature technology of manufacturing and its related products. Wire feeding precision. Forming stable and accurate, the appearance of new features, digital control, color Chinese/English interface, simple operation, the majority of customers, young ignorant.



After sale service



HYD Services:

1. Free training is provided in HYD production base.Pictures and video of the machine operation will be sent for confirmation before shipment.

2. The professional and patient consulting service will help you find the suitable solution.

3. Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.

4. HYD provide technical support by email and phone,technicians will be available at your side if necessary.

5. Spare parts will be freely supplied during the guarantee period(one year), original cost after this period.
