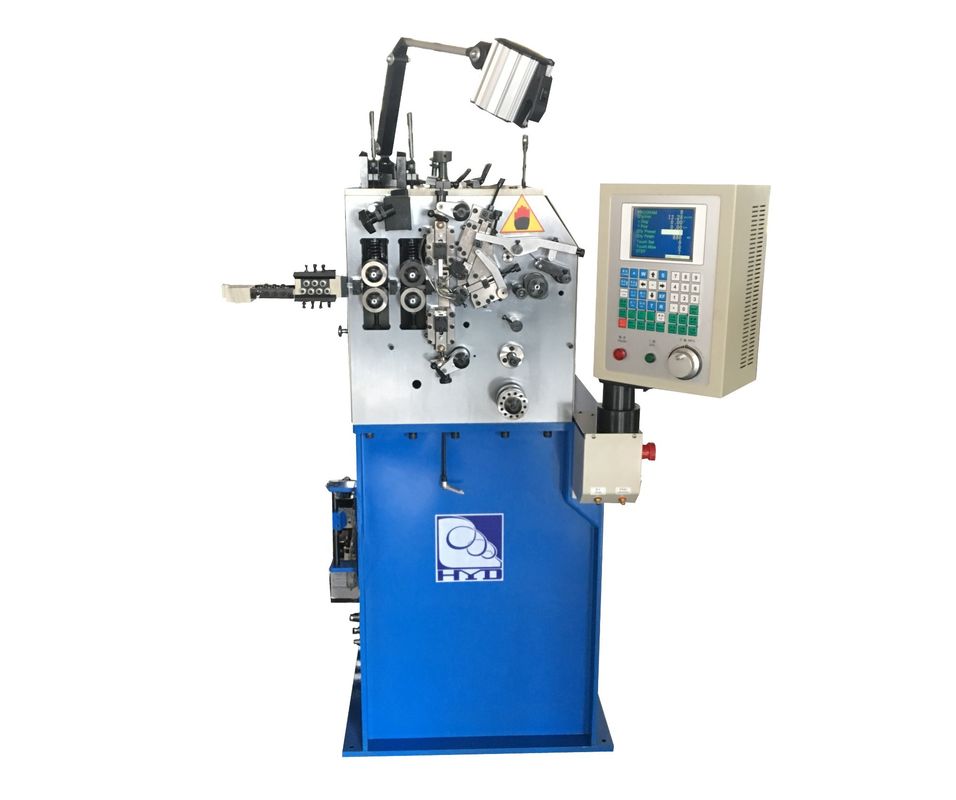

220V Powerful CNC Spring Coiler 2-3 Axes High Performance For Various Springs

220V Powerful CNC Spring Coiler 2-3 Axes High Performance For Various Springs

  • 220V Powerful CNC Spring Coiler 2-3 Axes High Performance For Various Springs
220V Powerful CNC Spring Coiler 2-3 Axes High Performance For Various Springs
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 25 Days
Payment Terms: Negotiable
Contact Now
Detailed Product Description
Wire Size Range: 0.3-1.2mm Axis: Two Axes
Servo Motor: Japan Brand Payment Term: T/T
Port: Shenzhen,China Production Capacity: 30 Sets One Month
High Light:

220V CNC Spring Coiler


Powerful CNC Spring Coiler


1.2mm Compression Spring Machine


2 - 3 Axes Computer-controlled Spring Coiler / Spring Making Machine


HYD-212 Compression Spring Machine Parameters
Model HYD-212
Diameter 0.3-1.2mm
Maximum diameter 20mm
The fastest production speed 550pcs/min
Wire feeding length Unlimited
Wire feeding speed 1200m/min
Delivery spools Y Axis 1kw
Camshaft X Axis 1kw
Screen display Color/Chinese/English
Minimum order value X:0.1 Y:0.01mm
Machine size 900×850×1600mm
Machine weight 400kg
Power 220V3p50/60HZ





HYD-212 machine features


It combines precision CNC controlled servo-motion system and conveniences of mechanization.


This machine can make many kinds of spring products with 0.3 - 1.2mm wire size range via a simplified


machine setup and programming procedure.






HYD Introduction


HYD is a production and sales combined company, with more than 15 years experience in spring machine


industry, which make us become a experienced and reliable supplier.HYD manufacture CNC spring


machine,wire bending machine,spring coiling machine ect,all of them are CNC,automatic.





springs are usually finished with some type of coating, plating or finishing process. In finishing processes, the spring’s surface undergoes additional steps to help combat erosion, lend new properties to the spring or simply improve the spring’s overall appearance. Some examples of common finishing processes include the following:

  • Shot peening: Shot peening is a finish applied to cold-worked springs. In this process, spherical shots are shot at the wire, resulting in compression stress and forming layers of compression dimples. As a result, the material’s surface hardens, making it more resistant to fatigue, corrosion and cracking.
  • Plating: Plating occurs when a thin layer of metal is applied to the surface of the spring or wire form. This is usually accomplished through an electroplating process where chemicals and electrical currents bond the plating metal to the surface of the spring wire. When complete, platings can provide improved corrosion resistance and strength. Platings may also improve the spring’s physical or aesthetic properties. For example, copper and gold platings lend improved electrical conductivity for electronic and power applications, while nickel and cadmium platings provide a chrome finish.
  • Powder coating: Powder coating is another option for wire spring finishes. Powder coatings are usually applied to hot-drawn springs and help prevent rust from forming on the spring’s surface. Coatings may also come in a range of colors for aesthetics.
