| Place of Origin: | Dongguan,China |
| Brand Name: | HYD |
| Certification: | CE / IS09001 |
| Model Number: | HYD-512 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD 9800-45500/sets FOB Shenzhen |
| Packaging Details: | Plywood Case |
| Delivery Time: | 20 Days |
| Payment Terms: | Negotiable, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 sets/month |
| Wire Diameter: | 6.0-12mm | Axis: | 5 Axes |
|---|---|---|---|
| Servo Motor: | Japan Brand | Guarantee Period: | 1 Year |
| Port: | Shenzhen,China | Production Time: | 30 Days |
| Max Outside Diameter: | 100mm | Certification: | ISO9001, CE |
| Function: | CNC Coiling Spring Machine | ||
| High Light: | 5 Axis Coiling Spring Machine,12mm Coiling Spring Machine,CNC Coiling Spring Making Machine |
||
5 Axis 12mm CNC Coiling Spring Machine Spring Making Machine
It is suitable for processing all kinds of precision compression springs, simple torsion springs and extension springs, such as compression springs, tower springs, mattress springs, shock absorbing springs, automobile springs and mold springs.
| HYD-512 5- axes computer spring machine | |
| Technical parameters | |
| Model | HYD-512 |
| Diameter | φ6.0-12mm |
| The maximum feed line length | Unlimited |
| Winding direction | Right and Left |
| Wire feeding speed | 60m/Min |
| The maximum outer diameter of the spring | 150mm |
| Production speed | ≤200 |
| Get the number of lines set | 4 pairs |
| Wire feeding servo motor | 30kw |
| Cam servo | 5.5kw |
| Servo cutter* 2 | 15kw*2 |
| Pitch servo | 2.0kw |
| Dimension | 3200×1600×1870mm |
| Weight | 10000kg |
Features
1. The pressure roller design cam mechanism is not screwed to the top, the pressure line is pressed tightly, and there is a balance block on each shaft. The feeding line is stable, and the spring precision is high.
2. Can be used as a compression spring, a side hook tension spring, a simple torsion spring and a part of the shaped spring.
3. The cutting arm uses the lever principle to save labor, and the parts are resistant to wear. The upper cutting knife, the outer diameter and the upper and lower sliders have hydraulic oil installed in the oil supply device, and do not need to use oil gun to oil, saving time and effort.
4. The slider is durable and wear-resistant, and will not change.
5. The connecting rod is matched with the auxiliary core for better programming.
6. Spool and camshaft precision inspection ensures high precision.

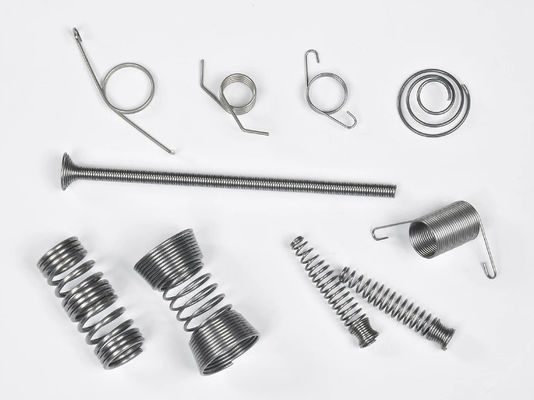

Samples display
Certification
Why us
• Independent R&D ability
• 15 years experience in spring machine industry
• Quick and patient reply for Before&After sale service
• Tranning in factory is available,spring set-up in machine for shipment
FAQ
1. Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned
output, technical requirements, etc
2. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
3. Q: What is the payment term
A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before
the shipment.We also accept other payment term.
